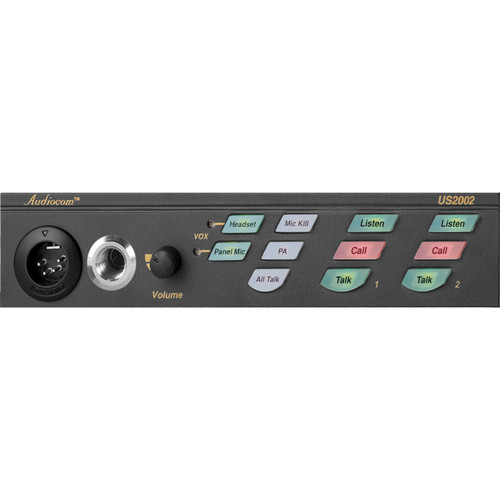

Telex US-2002 2-Channel Intercom User Station (Discontinued)

By Telex

Telex US-2002 2-Channel Intercom User Station (Discontinued)

Write a Review

Part #:

F.01U.391.550

Model #:

US2002

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Telex US-2002 Intercom User Station is designed for stationary use by personnel who may require selective access to two intercom channels. It can be rack mounted or used as a desktop station. For rack mounting, optional hardware is required.

Description

The US-2002 Intercom User Station is designed for stationary use by personnel who may require selective access to two or more intercom channels. It can be rack mounted or used as a desktop station. For rack mounting, optional hardware is required. For desktop use the four rubber feet supplied.

The US-2002 can be used as a simple, multi-channel user station. Typically, in this application, no program sources or public address output are connected and some advanced features can be disabled: the station simply provides talk, listen and call capability for a single user. Alternatively, the US-2002 can function as a master station. In this configuration, most or all advanced features are activated. Also, program inputs and public address output may be connected. This configuration is ideal for command and control personnel such as directors, supervisors, etc.

The basic US-2002 can communicate with two (2) intercom channels. The number of channels can be increased by connecting optional ES-4000A Expansion Stations. Each ES-4000A adds four (4) additional channels, and up to four (4) of these expansion stations can be connected together for a total of eighteen channels.

Features

Balanced Audio Transmission – Balanced audio transmission system for crisp clean audio even under the most challenging conditions
Remote Mic Kill – Remote mic kill feature allows users to silence any open mic on the intercom channel
Digi-Latch Technology – Separate listen, call, and talk buttons with Digi-Latch technology gives users complete control of system communications while maintaining ease of operation
Backlit Buttons – Backlit buttons with lettering on the button allow users to see which button to push even in darkened room environments
3.5mm Rear Data Connector – Convenient 3.5mm rear data connector allows the Master Station to be linked with one (1) or more ES-4000A expansion stations for access of up to 18 intercom channels
VOX Feature – VOX (voice activated microphone) feature is on/off programmable via front panel with individual trim pots for headset and front panel microphones
Rack Mountable – Rack mountable in a variety of modular configurations with one (1) of several optional rack mount kits
Clear-Com Compatible

Specifications

Power Requirements	Phantom Power: 24 VDC nominal (12 to 30 VDC), 65 to 150 mA Local Power: 12 to 15 VDC, 65 to 150 mA
Environmental Requirements	Storage: -20°C to 80°C; 0% to 95% humidity, non-condensing Operating: -15°C to 60°C; 0% to 95% humidity, non-condensing
Microphone	50 to 200 ohm, dynamic (balanced or unbalanced)
Headphones	150 to 600 ohm, monaural
Panel Microphone	5k ohm, electret (-57 dB)
Electret-Mic Headset	150 to 600 ohm, monaural
Input Level	100mV maximum
Voltage Gain	25 ±3 dB
Output Level	1.0 Vrms nominal, 2.3 Vrms maximum
Input Impedance	75k ohm
Common Mode Rejection	Greater than 50 dB
Frequency Response	200 Hz to 8 kHz +1/-3dB
Total Harmonic Distortion	Less than 0.2% at CHN output
VOX Range	-75 to -30 dB, -60 dB factory set
Color	Black
Dimensions (H x W x D)	1.75" (44.5 mm) x 8.19" (208 mm) x 10.31" (261.9 mm)
Weight	1.98 lbs (0.9 kg)
