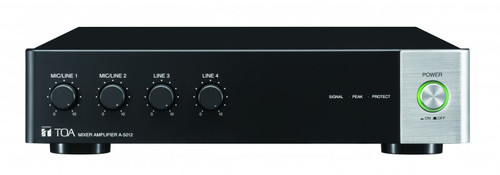

TOA A-5012 120W Digital Sound Mixer Amplifier (Discontinued)

Description

Details

The TOA A-5012 series Digital Sound Mixer offers the ability to control your music just the way you want it. With built in digital signal processors (DSP) that boast high efficiency and durability, Digital amplification for long-term use and Precise EQ settings via PC for optimal performance and security, the A-5000 Series is stylish and reliable. Also available in a 60 watt version, making it an ideal choice for small to medium restaurants and retail establishments.

Features

Features

1U-half size compact and simple hardware for easy setting
Hi-/Low-Z speaker connection
2 x mic/line inputs with mute
Ideal for restaurants, coffee shops, retail shops etc.

Specification

General
Power Source	100-240 V AC, 50/60 Hz
Rated Output	120 W
Power/Current Consumption	106 W (rated output), 20 W (based on cULus standards) Max. 2 A/ 207 W (rated output), 39 W (based on cULus standards) Max. 3 A
Frequency Response	50 Hz – 20 kHz, 1/8 output
Distortion	1% or less (1kHz, rated output)

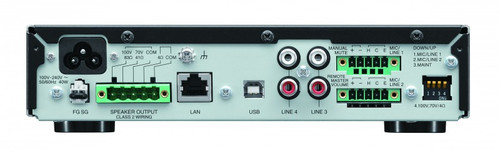

Input	INPUT 1, 2: MIC -60 dB, LINE -20 dB, MIC/LINE selectable 2.2k ohms, electronically-balanced, removable terminal block (5 pins) INPUT 3, 4: LINE -20 dB, 10k ohms, unbalanced, RCA pin jack
Output	Speaker: 4 ohms, 70V (42 ohms) , 100V (83 ohms) removable terminal block (5 pins)
S/N ratio	MIC 1, 2: 60 dB or more LINE 1 – 4: 80 dB or more (A-weighted)
Function	Parametric equalizer: 5 points settable on each input and output, 20 Hz – 20k Hz +/-15 dB, Q: 0.267 – 69.249 Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default) Threshold, Ratio, Attack time, Release time, and Gain are settable independently on each input
Control	Mute control, Remote master volume control, Power ON/OFF switch, Ground lift
Indicator	Power, Signal, Peak, Protect
Physical
Dimensions (H x W x D)	2.07" (52.5 mm) x 8.27" (210 mm) x 14.76" (375 mm)
Weight	8.6 lbs (3.9 kg)
