TOA AM-1 Steering Array Microphone System (Discontinued)

Part #:
AM-1
Model #:
AM-1
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The TOA AM-1 Steering Array Microphone System has a built-in sensor to detect and track sound sources. It captures voices clearly and continuously from either side, above or below, allowing speakers to move freely and still be heard by the audience.

Description

The AM-1 Real-time Steering Array Microphone System has achieved the unique function of detecting the sound source location and steering its angle automatically in real-time to capture the targeted sound more efficiently. In addition, the special user-friendly iPad app allows the user to monitor live, status of the sound source tracking, and make real-time changes to setting parameters. Additionally, the AM-1 has webpage access using a PC browser allowing for setting adjustments. With this technology, the presenter would no longer need to be "microphone-conscious" to get a uniform sound level while speaking and moving.

The TOA WB-AM1WC wall/ceiling mount option for its AM-1 Steerable Array Microphone now adds more placement flexibility, making the AM-1 more suited to conference rooms and other distance applications. The WB-AM1BWC AM (Black) or WB-AM1WWC AM (White) are equipped for flush-mounting and can be ceiling-suspended with the use of some simple, off-the-shelf, 3rd party hardware.

Features

  • Built-in voice detection sensor
  • Captures voice from up to 3 m and to tracking range angles up to 180°
  • Level compensation for reduced volume variations
  • Narrow (50°) directivity assuring minimal acoustic feedback
  • Innovative pad-like form permitting unobtrusive placement
  • Removal of barrier between speaker and audience
  • Ability to move and gesture naturally
  • Permits quick, one-touch adjustment of control unit parameter settings from an iPad™ using a dedicated app or firmware
  • Adjustment by PC is also possible
  • Tracking distance/range, sensitivity/speed, mute on/off

Specifications

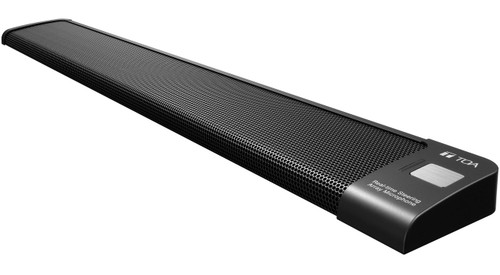

Microphone
Power Source 24 V DC / 200 mA (supplied from control unit)
Frequency Response 150 Hz – 18 kHz
Directivity (Beam Width) 50°
Maximum Cable Length 70 m (between microphone & control)
Applicable Cable Twisted two-core, shielded cable
Mute Function Mechanical mute switch
Dimensions (H x W x D) 0.79" (20 mm) x 18.98" (482 mm) x 2.56" (65 mm)
Weight 2.4 lbs (1.1 kg)

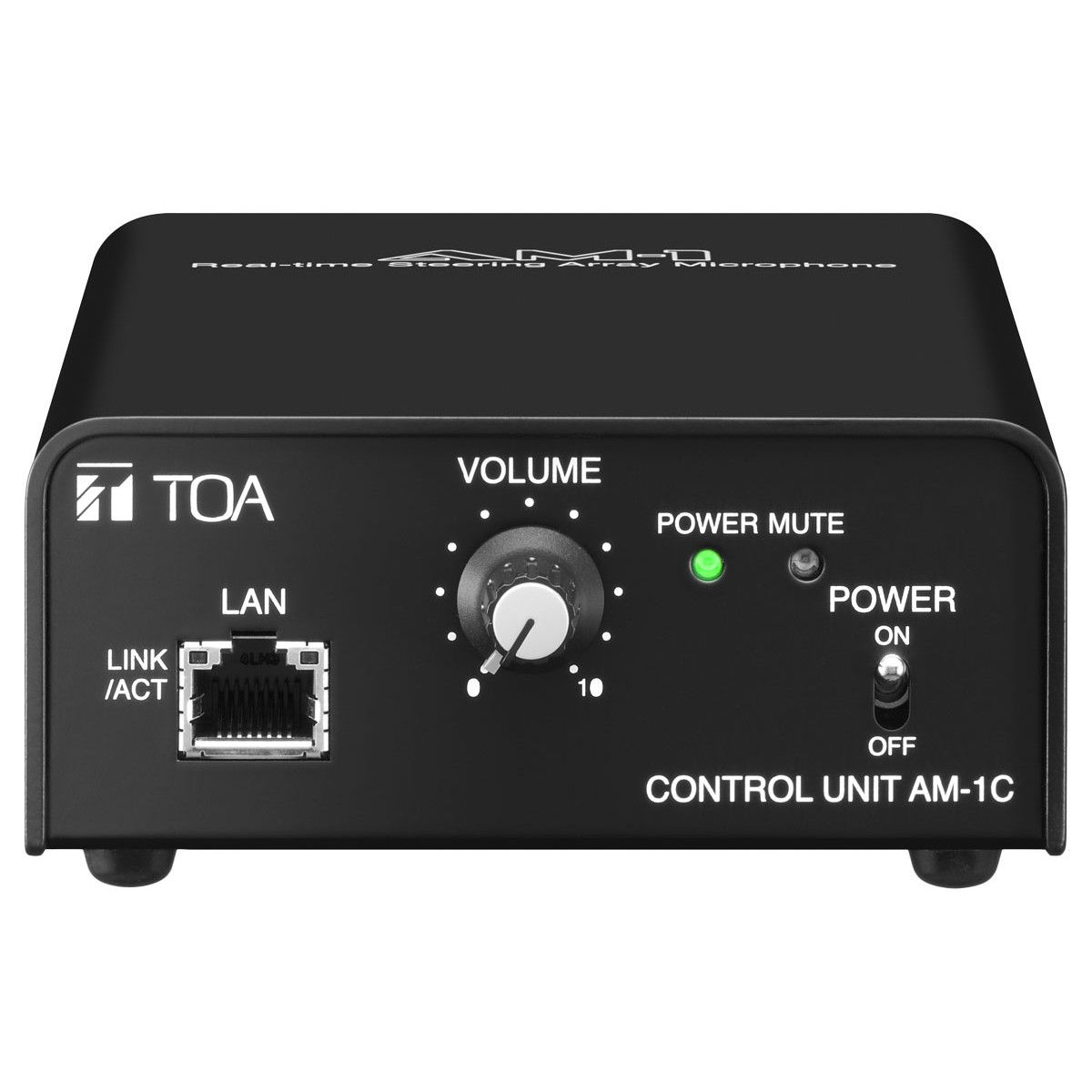

Control Unit
Power Source 24 V DC / 400 mA (including microphone power/ supplied by AC adapter)
S/N (Microphone) Over 90dB
Input Microphone input (audio & communication), XLR-3-31 equivalent
Audio Output Analog: +4 dBu, -10 dBV, -50 dBu (selectable), XLR-3-32; Digital: AES/EBU 24bit 110 Ω, XLR-3-32
Network Port RJ45
Dimensions (H x W x D) 1.89" (48 mm) x 4.13" (105 mm) x 8.7" (221 mm)
Weight 1.3 lbs (0.6 kg)
