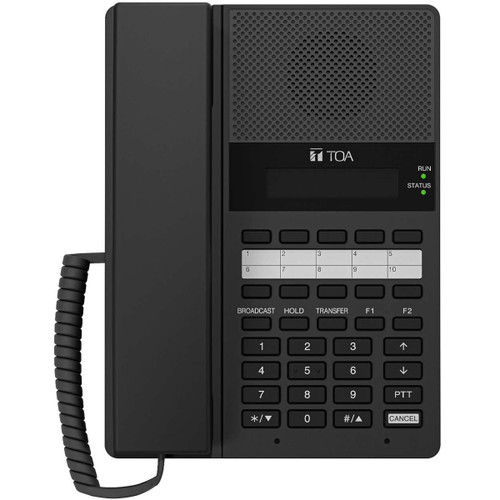

TOA CX-OP1500 Full-Duplex Hands-Free Operation Station

The CX-OP1500 is a full-duplex hands-free operation station designed for the CX-1000 series IP communication system. It allows both handset and hands-free voice conversations with other intercom stations, and enables broadcasts to Audio interfaces and amplifier units. Power can be supplied via PoE or an optional 12V DC adapter, offering installation flexibility for both desktop and wall mounting.

Equipped with a 16-character x 2-line LCD, the CX-OP1500 clearly displays system status, call information, and active broadcasts. Users can also take advantage of one-touch dialing, headset connectivity via 3.5 mm jacks, and an external speaker terminal. Dual MEMS microphones with array processing ensure clear audio capture, while integrated echo cancellation improves hands-free conversations.

Designed for integration and control, the CX-OP1500 features two control inputs and two open collector outputs for external devices. The supplied angle-adjustment stand allows optimal desktop placement, and optional wall mounting brackets provide further installation versatility. It supports key audio codecs, including G.722 and G.711 for high-quality voice transmission across IP networks.

Features

Features

Full-duplex operation via handset and hands-free with an echo canceller
16x2 Character LCD for clear status and call display
Dual MEMS microphones with array processing for precise audio pickup
One-touch dialing and 3.5 mm headset jacks for flexible audio input/output
Supports G.722 and G.711 audio codecs
Two control inputs and two open collector outputs for external device integration
Desktop or wall mounting with an optional bracket
PoE (IEEE802.3af compliant) or 12V DC power

Specification

Power Source	PoE (IEEE802.3af) or 12V DC (optional AC adapter)
Current Consumption	PoE: 120 mA, 12V DC: 340 mA
Power Consumption	4.5W
Speech Method	Handset: Full-duplex, Hands-free: Full-duplex (echo canceler + voice switch), Half-duplex (PTT)
Frequency Response	300 Hz - 7 kHz (Conversation/Broadcast)
Hands-Free Speaker	Dynamic type, max 2.0W
Microphone	Omni-directional digital MEMS x 2
Handset	Receive: Dynamic speaker, Send: Electret condenser microphone
Headset	Speaker: Dynamic 32Ω, Microphone: Electret condenser, Ø3.5 mm mini jack
External Speaker Output	2.0W, 8Ω, push-in terminal
Network	100Base-TX, TCP/IP, UDP, SIP, RTP/RTSP, UTP Cat5+
Audio Transmission	16 kHz/8 kHz sampling, PCM, G.722, G.711 μ-Law/A-Law, 16-bit
Control	2 inputs (no-voltage), 2 outputs (open collector)
User Interface	Dial key, 10 Direct keys, Function 1 & 2, Broadcast, Hold, Transfer, PTT, Cancel
Indicators	LCD: 16 x 2 lines, LED: RUN, STATUS
Installation	Desktop or wall mount (optional bracket)
Dimensions (H x W x D)	3.11" (78.9 mm) x 5.83" (148 mm) x 7.87" (200 mm) (excluding cord)
Weight	1.58 lbs (0.72 kg)
