The DP-K1 DIGITAL MIXER / PROCESSOR is the ideal solution for a wide variety of installed sound applications including houses of worship, sports facilities, convention centers, airports and many others. The DP-K1's modular design supports up to eight mic/line inputs and eight line outputs with flexible contact-closure remote control. The advanced new Automatic Resonance Control (ARC) measurement and processing algorithm from TOA, improves speech intelligibility and sound quality in facilities with challenging acoustic environments. ARC automatically identifies room mode frequencies and applies an inverse response curve to compensate for the measured room response. Additional audio processing tools include multi-band parametric filters, compressors, limiters, noise gates, crossovers, delays and more. Full input-to-output matrixing allows users to store and recall any input to output combination for multi-zone or room-combining applications. The unit is programmed via PC control software and includes a built-in network interface for remote access.
| Power Source | AC mains, 50/60Hz |
|---|---|
| Power Consumption | 40W |
| Frequency Response | 20 – 20,000Hz, ±1dB (+4dB Input) |
| Input | Max. 8 channels, modular construction (modules optional) |
| Output | Max. 8 channels, modular construction (modules optional) |
| IO Configuration² | 2-IN/4-OUT, 2-IN/8-OUT, 4-IN/4-OUT, 4-IN/8-OUT, 6-IN/4-OUT, 6-IN/8-OUT, 8-IN/8-OUT |
| Automatic Resonance Control Function | Parametric equalizer: 20 – 20,000Hz, ±12dB, Q: 0.267 to 69.249 |
| Level Control | -∞ to +12dB (0.5dB steps), with polarity selector |
| Compressor | Threshold: –16 to +24dB (1dB steps) Attack time: 0.02 to 100msRelease time: 10ms to 5s |
| Noise gate | Threshold: –∞ to –26dB (1dB steps)Attack time: 0.1 to 100msRelease time: 20ms to 5s |
| Delay | Delay time: 0 to 682.0ms (0.021ms steps) |
| Matrix | 8 × 8Level control: –∞ to 0dB (1dB steps), with polarity selector |
| Preset memory | 8 |
| Auxiliary Function | Key lock function |
| Setting Software | OS: Windows³ 2000/XPControl system: 10 BASE-T/100 BASE-TX, Auto-negotiation, RJ45 connector |
| Front Panel Section | Preset memory recall knob: 1Input indicator: Green LEDOutput indicator: Green LED |

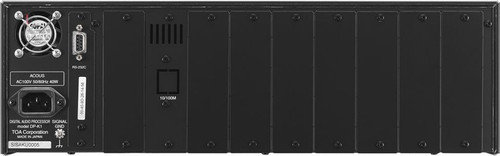

| Module Slot (Rear Panel) | Input module slots: 4Output module slots: 2Remote control module slot: 1 |
| Operating Temperature | +5°C to +40°C |
| Finish | Panel: Aluminum, hair-line finish, blackOthers: Pre-coated steel plate, black, 30% gloss |
| Dimensions (W x H x D) | 482.6 × 132.6 × 320 mm (Excluding Projection) |
| Weight | 16.31 lbs (7.4 kg) |
