TOA F-08WT-WP-UE 8" IP65 Weatherproof 2-Way 70V/100V/8-Ohm Surface Mount Speaker - White

Part #:
F-08WT-WP-UE
Model #:
F-08WT-WP-UE
MSRP: $547.00
$442.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The TOA F-08WT-WP-UE is a white 8-inch 2-way IP65 weatherproof surface mount speaker with selectable 70V, 100V, and 8-ohm operation. Designed for premium outdoor music and paging applications, it delivers powerful full-range audio with flexible mounting for commercial installations.

Description

TOA F-08WT-WP-UE 8-Inch Weatherproof 2-Way Surface Mount Speaker

The F-08WT-WP-UE is a high-performance 8-inch 2-way weatherproof surface mount speaker engineered to deliver outstanding music reproduction and clear speech intelligibility in demanding outdoor and indoor commercial environments. Featuring a robust two-way design with powerful bass response and detailed high frequencies, it is ideal for restaurants, hotels, shopping centers, schools, sports facilities, transportation hubs, and public venues where reliable, high-quality sound is essential.

Designed for installation flexibility, the F-08WT-WP-UE supports 70V, 100V, and 8-ohm audio systems, making it suitable for both distributed and low-impedance applications. Its adjustable mounting bracket allows precise aiming for optimal sound coverage on walls, ceilings, or poles, while the clean white finish blends seamlessly into modern architectural spaces. The included mounting hardware simplifies installation for both permanent and professional commercial deployments.

Built to withstand challenging environments, the F-08WT-WP-UE features an IP65-rated weatherproof enclosure and is EN 54-24 certified for voice alarm systems, providing dependable performance in outdoor installations exposed to dust and moisture. Combining durable construction, versatile installation options, and exceptional acoustic performance, it is an ideal loudspeaker for commercial paging and background or foreground music systems.

Features

  • 8-inch 2-way weatherproof surface mount speaker
  • Selectable 70V, 100V, and 8-ohm operation
  • IP65-rated enclosure for outdoor installations
  • EN 54-24 certified for voice alarm applications
  • Powerful bass and detailed high-frequency reproduction
  • Wide dispersion for consistent audio coverage

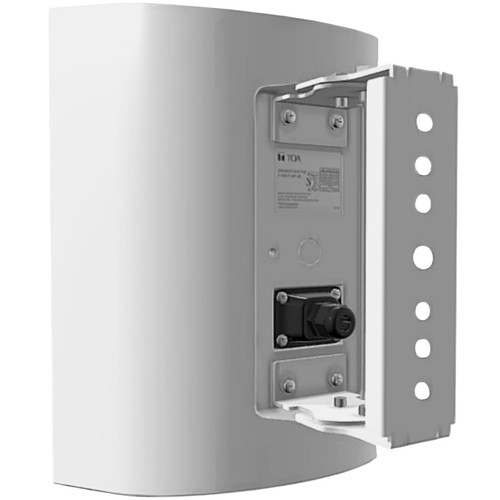

  • Adjustable bracket supports wall, ceiling, and pole mounting
  • Durable construction for long-term outdoor reliability
  • Clean white finish for architectural integration
  • Ideal for music playback, paging, and emergency voice systems

Specifications

Enclosure Sealed type
Power Handling Capacity Rated noise power: 90W (8Ω), Continuous program: 180W (8Ω)
Frequency Response 70 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Sensitivity 90 dB (1W, 1 m) (1 - 10 kHz, pink noise)
Rated Input 60W (100V line, 70V line)
Rated Input Impedance
100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3 kΩ (3W)
70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3 kΩ (1.5W)
Speaker Component Low frequency: 20 cm (8") PPcone-type
High frequency: 25 mm (1") dome tweeter
Directivity Angle Horizontal: 100°, Vertical: 100°
Crossover Frequency 3 kHz
Compliance/Certifications EN 54-24:2008, UL 1480A (UEAY) (outdoor use)
IP Code IP65
Installation Environment Indoor installation, Outdoor installation
Input Terminal M4 screw terminal (distance between barriers: 9 mm)
Operating Temperature -10°C to +50°C
Accessory U-bracket x1
Speaker bracket x2
Bracket fixing screw set x1
Terminal cover x1
Terminal cover mounting screw x4
Finish Aluminium, white (RAL 9016 or equivalent)
Dimensions (H x W x D) 15.43" (392 mm) x 9.88" (251 mm) x 8.5" (216 mm)
Weight 12.13 lbs (5.5 kg)
