TOA S4.4L UHF Lavalier Wireless Mic System (Discontinued)

Description

Trantec's S4.4 is a function-packed system designed to launch you into the world of wireless. Tough, reliable and compact, this multi-function system is optimized for use with handheld or lapel mic, 'Aerobic' headset or switch for use with a musical instrument. Not only does the S4.4 come with a bargain-basement price tag, but it is also extremely economical to run. Its four channels can be used license-free in the UK, and a single 9V battery will give you over 8 hours of quality performance.

Features

• Frequency Band Selection: E4: 668-698MHz; G5: 606-636MHz, UHF
• Four switchable licence-free frequencies on Channel 70
• Fully synthesised PLL quartz tuning technology
• Beltpack transmitters with locking 3.5 mm jack
• Single 9V transmitter battery life of over 8 hours
• Receiver LED’s show AF Peak level, RF Level, and Diversity Channel A or B
• 19” rackmount option for two receivers
• Rugged metal body receivers
• Power output 10mW (max)

Specifications

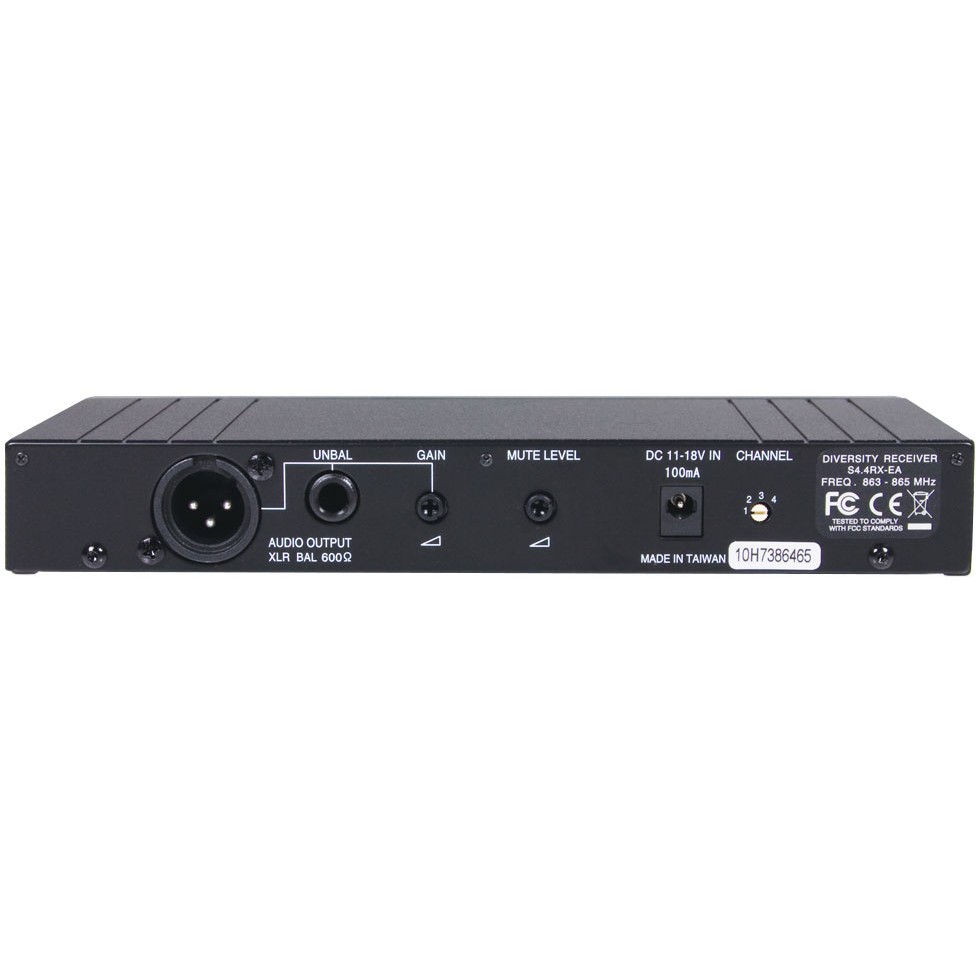

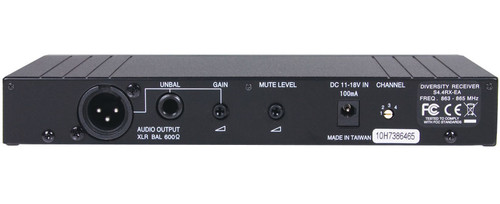

S4.4-RX - Receiver
Power Consumption	100 mA (12 V DC)
Frequency Bands	742.075, 742.800, 743.300, 743.975 MHz
Audio Output	Balanced output: +16 dB (max), 600 Ω, balanced, XLR-3-31 type connector Unbalanced output: +10 dB (max), 600 Ω, unbalanced, phone jack
Receiving Sensitivity	Over 90 dB, S/N ratio (20 dB μV input, 40 kHz deviation)
Squelch Sensitivity	18 - 40 dB μV variable
Indicator	ANT A/B, Audio (peak), RF level, Power
S/N Ratio	Over 95 dB (A-weight, unbalanced output)
Harmonic Distortion	Under 1% (typical)
Frequency Response	100 - 15,000 Hz, ±3 dB
Operation Temperature	-10°C to +45°C (14°F to 113°F)
Dimensions (H x W x D)	1.38" (35 mm) x 8.43" (214 mm) x 3.96" (100.5 mm)
Weight	1.28 lbs (0.58 kg)

DOCUMENTS

In The Box

• (1) S4.4-RX - Receiver
• (1) S4.4-BTX - Bodypack Transmitter & Lavalier
