TOA T-01S Balanced Line Output
By TOA Electronics

TOA T-01S Balanced Line Output

Write a Review
Part #:
T-01S T
Model #:
T-01S
MSRP: $171.00
$140.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

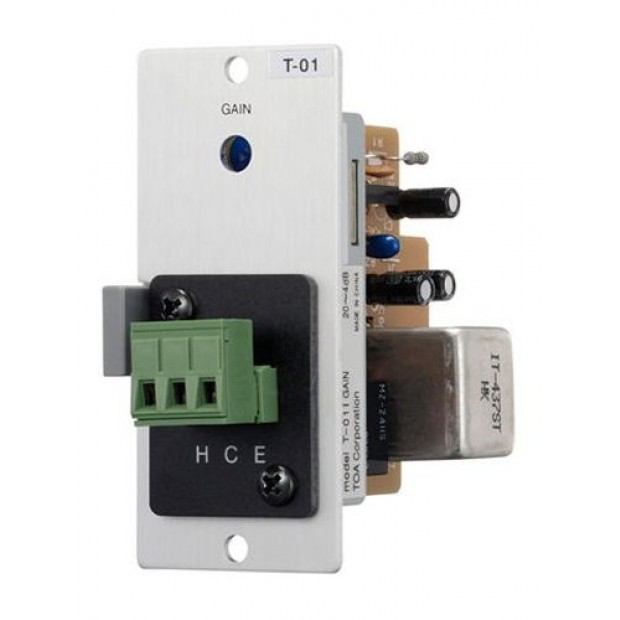

The TOA T-01S Balanced Line Output is for transformer-isolated output of mixing bus signal to feed other mixers, amps, and tape recorders. Includes balanced line output with removable terminal block and gain control.

Description
The TOA T-01S is a line output module to be used in conjunction with the 900 Series components and other TOA's equipment.

It has a transformer balanced line output with removable terminal block connector, and gain control.

For transformer-isolated output of mixing bus signal to feed other mixers, amps, and tape recorders. (Functions only in A-900MK2, M-900MK2, W-900A Series, 700 Series and BG-M Series; not usable in P900MK2 Series).

Features
  • Gain Controls
  • Removable Terminal Block
  • Bus signal to feed mixers, amps, and tape recorders
  • Functions only in A-900MK2, M-900MK2, W-900A Series, 700 Series and BG-M Series; not usable in P900MK2 Series

Specifications
Gain (Adjustable) 4 ~ 20 dB
Max Input/Output +18 dB tb
Signal to Noise (S/N) 80 dBu (S/N)
Physical Connector Removable Terminal Block
Power Source 24 V DC
Current Consumption 35 mA
Output Level Adjustable -22 to -6 dB* (@ 600 Ω terminal, input: -20 dB*)
Output Impedance 600 Ω, balanced transformer-isolated
Frequency Response 20 Hz - 20 kHz ±2.5 dB
Distortion 0.1 % or less (1 kHz , output: 0 dB*)
Noise Level -90 dB* (20 Hz - 20 kHz BPF)
Connector Removable Terminal Block (3P)
Dimensions (H x W x D) 1.38" X 3.07'' X 3.46"
Weight Max. 0.21 lb (95 g)
