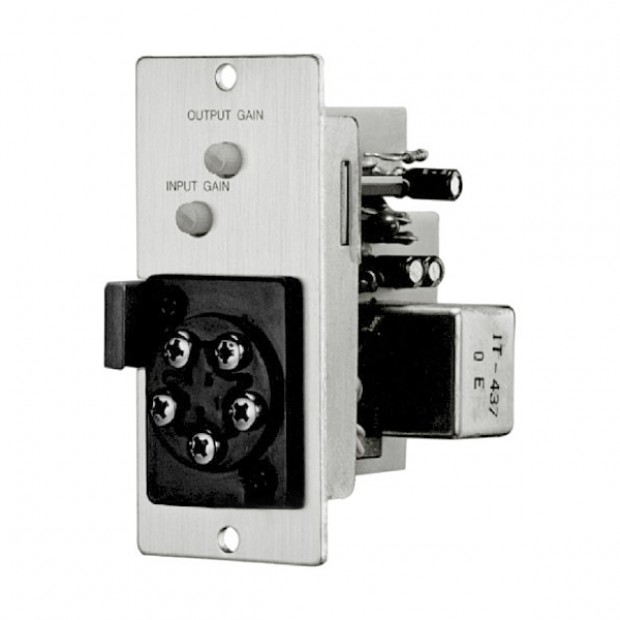

TOA T-02S Unbalanced Line Input with Music-On-Hold Output
The TOA T-02S Unbalanced Line Input with Music-On-Hold (MOH) Output is a line input module to be used in conjunction with the 900 Series components and other TOA's equipment.
It has a transformer unbalanced line input with Music-On-Hold (MOH) output and screw terminals, and gain controls.
For unbalanced, line level equipment. Transformer-isolated output of module's input signal for feeding remote equipment such as mixers, amps, tape recorders, and telephone system MOH inputs.
| Power Source | 24 V DC |
|---|---|
| Current Consumption | 38 mA |
| Sensitivity | AUX Input: Adjustable -20 - 0 dB Line Output: Adjustable -16 - 0 dB (at 600 Ω terminated, input: -20 dB) |
| Source Impedance | AUX Input: 220 Ωk, unbalanced transformer-isolated Line Output: 600 Ω, balanced transformer-isolated |
| Frequency Response | 25 Hz - 20 kHz ±2.5 dB |
| Distortion | 0.1 % or less (1 kHz , output: 0 dB) |
| Noise Level | -90 dB (20 Hz - 20 kHz BPF) |
| Gain | Mix bus: -20 - 0 dB/slave: 4 - 20 dB |
| Connector | 5 Screw terminals |
| Dimensions (H x W x D) | 3.07'' (78 mm) x 1.38" (35 mm) x 3.46" (88 mm) |
| Weight | 0.23 lbs (0.10 g) |
