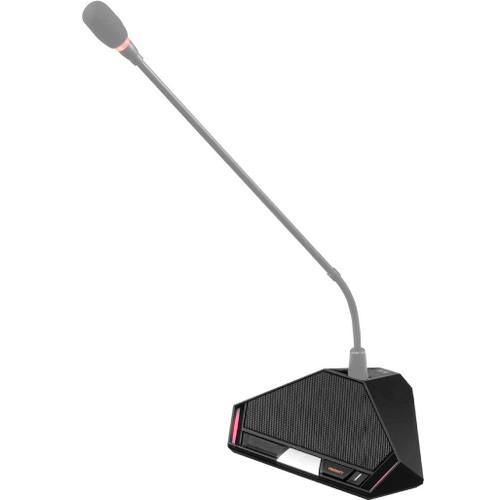

The TS‑D1000‑CU is a dedicated Chairman Unit designed for seamless integration with TOA's Digital Conference System. Simply connect it to the TS-D1100-MU Master Control Unit via CAT5e STP LAN cables, and it's ready for instant use. The unit can be equipped with optional TS-D1000-M1 Standard or TS-D1000-M2 Long microphones to meet the specific needs of any meeting room or conference setup.
Designed for professional discussion environments, the TS-D1000-CU includes a 0.4W monitor speaker for clear audio feedback and two headphone jacks with individual volume control, allowing the chairman and participants to monitor speech privately. Its PoE (Power over Ethernet) capability simplifies installation, reducing the need for additional power cabling while maintaining consistent performance.
Compact yet feature-rich, this chairman unit provides essential functionality for efficient meetings and audio management. It ensures reliable communication and clear voice transmission for conference environments of all sizes, making it an ideal choice for corporate, educational, or government applications.
| Power Source | 24V DC (supplied from the TS-D1000-MU Master control unit (option), TS-D1100-MU Master control unit (option), TS-D1000-SU Sub control units (option) or TS-D1000-EX Extension units (option) |
|---|---|
| Power Consumption | 1.5W or less |
| Input | Microphone terminal: XLR-3-31 type |
| Output | Monitor speaker: 8Ω, 0.4W Earphone: Ø3.5 mm mini Jack (3P:monaural) x2 |
| Speaker Output | 75 dB SPL |
| Connection Terminal | RJ45 connector x2 |
| LED Indicator | Power indicator, Speech indicator |
| Function | Speech function, Priority speech function, Earphone volume control (x2) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90%RH or less (no condensation) |
| Finish | Case: ABS resin, black, mat finish, paint Speaker net: Black, mat finish, paint |
| Dimensions (H x W x D) | 2.81" (71.3 mm) x 8.22" (208.9 mm) x 6.32" (160.5 mm) |
| Weight | 1.94 lbs (0.88 kg) |
