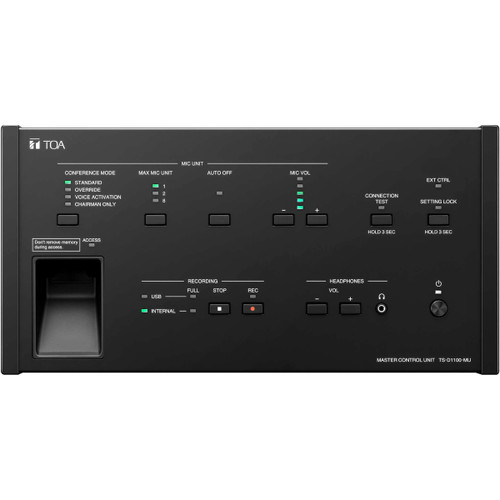

TOA TS-D1100-MU Master Control Unit
The TS‑D1100‑MU master control unit serves as the central hub for TOA's Digital Conference System, providing seamless management of professional meetings and audio conferences. It supports up to 32 conference units in a simple daisy chain configuration and can expand to 246 units with the addition of up to five TS‑D1000‑SU Sub Control Units. Connections to the conference units are made via CAT5e STP LAN cables, while USB 2.0 Type-B ports allow integration with PCs for audio input and output, making it ideal for hybrid or web-based meetings.
Equipped with MP3 recording capabilities, the TS‑D1100‑MU can save all conference audio to either a connected USB memory drive or its internal memory. The unit also includes FBS (Feedback Suppression) for clear, echo-free sound and one-touch connection confirmation for quick setup. Its flexible I/O options include Mic In, AUX In, Line Out, Rec Out, headphone monitoring, and EQ In/Out, ensuring complete control over conference audio.
Designed for professional environments, the unit allows precise microphone management, including auto mic-off, open microphone count, and microphone priority selection. For convenient installation, the TS‑D1100‑MU can be rack-mounted using the optional MB‑TS920 bracket (4U), making it suitable for corporate, government, educational, or large-scale conference applications.
- Features
Features
- Central Master Control Unit for TOA Digital Conference Systems
- Supports up to 32 conference units; expandable to 246 with sub control units
- USB 2.0 Type-B for audio input/output and PC integration
- MP3 recording to USB memory or internal memory
- FBS (Feedback Suppression) for clear conference audio
- Mic In, AUX In, Line Out, Rec Out, Headphone monitor out, EQ In/Out
- One-touch connection confirmation for easy setup
- Microphone function settings: auto mic-off, open mic count, priority selector
- Rack-mountable with optional MB‑TS920 bracket (4U)
- Specification
Power Source 100 - 240V AC, 50/60 Hz (via supplied AC adapter) Power Consumption 60W or less Frequency Response 100 Hz - 13 kHz Distortion 0.5% or less Signal-to-Noise Ratio 80 dB or more (A-weighted) Audio Transmission System TDM (Time Division Multiplexing), 10 channels, 16-bit PCM, 32 kHz MIC Input -54 dB, 600Ω, unbalanced, Ø6.3 mm phone jack (2P) Line Output -10 dB, 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P) REC Output -10 dB, 10 kΩ, unbalanced, RCA pin jack, monaural Headphones Ø3.5 mm mini jack, monaural USB Audio USB 2.0, Type-B port Equalizer I/O -10 dB, 10 kΩ, unbalanced, RCA pin jack Video Conference I/O -10 dB, 10 kΩ, unbalanced, RCA pin jack LED Indicators Power, Conference mode, Open microphones, Auto mic off, Monitor speaker volume, Connection test, External control, Setting lock, Recording, USB access/memory, Internal memory, LINK/ACT, 10BASE-T/100BASE-TX Max Conference Units 32 units Max Sub Control Units 5 units Max Cable Length 50 m (to end unit), 1 m (to sub control unit) Max Open Microphones 2 chairman units, 8 delegate units Function Keys Conference mode selector, Open mic selector, Mic auto-off, Monitor volume, Setting lock, Headphone volume Recording Function USB or internal memory, MP3 format, 32 kHz, 128 kbps, monaural Dimensions (H x W x D) 3.95" (100.4 mm) x 14.21" (361 mm) x 7.08" (179.8 mm) Weight 4.85 lbs (2.2 kg) - Documents
