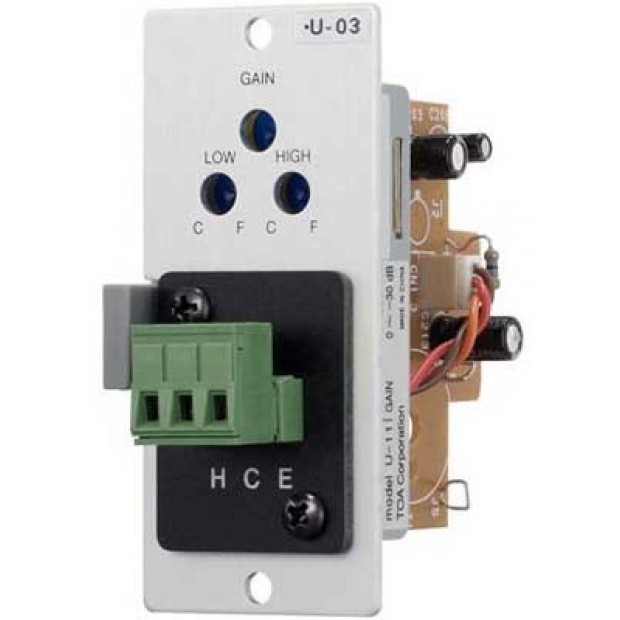

The U-03S is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a low-cut and high-cut filter, gain control and a removable terminal block connector. For unbalanced,line level equipment. such as AM/FM tuners, tape decks and CD players.
| Product Type | 2-Line Input Module |
|---|---|
| Performance Input | 220 k ohms |
| Input Sensitivity | -17 ~ +13 dBu |
| Gain (Adjustable) | -30 ~ -1 dB |
| Signal to Noise (S/N) | 85 dBu (S/N) |
| Physical Connector | Removable Terminal Block |
| Power Source | 24 V DC |
| Current Consumption | Less than 8 mA |
| Input Sensitivity (Rated Output 100 mV) | 100-3,600 mV (adjustable) |
| Low Cut Filter (100 Hz) | -5 to -15 dB |
| High Cut Filter (10 kHz) | -7 to -13 dB |
| Noise Output (20 Hz - 20 kHz BPF) | Less than 10 V |
| Distortion | Less than 0.05% |
| Frequency Response | 20 Hz - 20 kHz |
| Input Connector | 3P Terminal Block |
| Output Connector | 6P card edge-connector |
| Dimensions (H x W x D) | 3.07'' (77.98 mm) x 1.38" (35 mm) x 3.46" (87.88 mm) |
| Weight | 0.11 lbs (50 g) |
