Training Room Sound System with a SD4 Ceiling Speaker Array and MA120BT 120W Bluetooth Mixer Amplifier

Part #:
EDSS-SD4MA120BT
Model #:
EDSS-SD4MA120BT
Availability: Currently Backordered - Contact Us for Comparable Solutions Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This training room sound system provides crystal clear audio with 360° coverage and easy-to-use Bluetooth wireless audio streaming capability. With 6 inputs it makes it easy for instructors to connect multiple audio sources to the sound system.

Description

Inside the Design

This training room sound system provides crystal clear audio with 360° coverage and easy-to-use Bluetooth wireless audio streaming capability. With 6 inputs it makes it easy for instructors to connect multiple audio sources to the sound system. Instructors can connect a wired or wireless microphone to vocal strain. This ceiling speaker system is perfect for training rooms, training centers, presentation rooms, instructional workshops, meeting rooms and other applications where high-performance audio quality and the integration of multiple media formats is needed.

Sound System Features:

  • SuperDispersion 360° x 180° Omnidirectional Coverage: The SD4 has 360° of seamlessly smooth coverage which greatly improves speech intelligibility and provides powerful crystal clear music reproduction
  • 4 - 6.5" Full-Range Speakers: Employs four powerful 6.5" speakers that work in unison producing smooth seamless coverage and speech intelligibility, providing powerful crystal-clear media reproduction that is key for learning environments
  • Easy to Install: The SD4 takes minutes to install. Just remove one ceiling tile and drop the SD4 into any standard 2x2 or 2x4 drop tile ceiling
  • Bluetooth-Enabled: The MA120BT supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or smartphones, enabling anyone to walk-in and link up with wireless Bluetooth connection
  • Connect your Equipment: The MA120BT is equipped with inputs for wired or wireless microphones, CD/DVD players, projectors, laptops, computers, and other devices

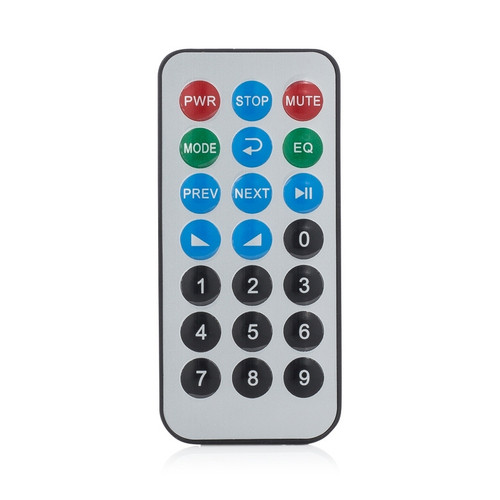

  • Remote Control: The included remote control manages volume levels, play/pause, skip and more all from a distance

Create a better learning experience with this training room audio system by connecting the audio output from your projector or Bluetooth device. Play audio from your USB thumb drive or SD card, or connect additional audio sources like an MP3 player, CD/DVD player, laptop or projector.

Train large groups without vocal strain! Instructors never have to worry about losing their voice again with this training room sound system package. The MA120BT allows you to connect a wired or wireless microphone, while the SD4 provides crystal-clear vocal reproduction.

About the System Components

This training room sound system includes our 2'x2' SD4 SuperDispersion ceiling speaker array with outstanding 360° high-quality audio coverage featuring four 6.5" very fast transient response aluminum-woofer drivers in a fire-retardant ABS housing that can be painted to match any decor. Also included is our MA120BT 120 watt Bluetooth mixer amplifier. This mixer amplifier features 7-channels/6 inputs including a USB port, SD card slot, XLR and 1/4" mic inputs, and RCA inputs, allowing you to connect multiple sources. The MA120BT also comes with an IR remote to control the unit from across the room. This training room ceiling mount speaker package is ideal for any educational or training and development environment where high-quality audio is needed.

Not sure if this is the right Training Room Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

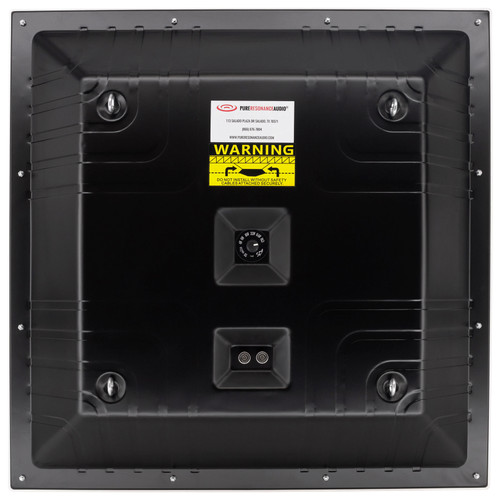

Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Array:

  • SuperDispersion® 360° x 180° omnidirectional coverage
  • Engineered for voice, paging and music applications
  • Infinite-baffle in-ceiling speaker drops into standard 2x2 ceiling tile openings
  • Powerful – 160 Watts at 8 Ohms, 64 Watts at 70 Volts
  • 4 - 6.5" High compliance aluminum woofers with ported bass response and high-frequency dome tweeters
  • Uniquely designed fire retardant ABS housing may be painted to match any décor
  • Impedance: 8 ohms nominal with built-in 70 Volts (4, 8, 16, 32, 64 watt taps), easily adjustable by rotating switch
  • Metal Backbox that is acoustically engineered and sealed for maximum sonic performance
  • Safety cable kit included

Pure Resonance Audio MA120BT 120W Commercial Mixer Amplifier:

  • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
  • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
  • MP3 Player, FM Radio & Bluetooth (with IR remote control)
  • USB and SD inputs on front panel
  • Power output rating 120 Watts
  • Built-in 70V/100V transformer
  • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
  • Mic 1 of balanced XLR input (with phantom power)
  • Mic 2-3 microphone or line switchable
  • Line 1-2 input of RCA inputs
  • DIP switches for Mic/Line, phantom power and microphone priority
  • Unbalanced 6.3 mm phone jack input
  • One RCA line output (0.775 line level 0 dBV)
  • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
  • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
  • Short-circuit, clip, overload and high temp protection
  • 24 VDC Emergency backup supply
  • 115V 60 Hz & 24V DC both operation system

System Includes

  • (1) Pure Resonance Audio SD4 SuperDispersion Drop Tile Ceiling Speaker Array
    • (1) Mounting Kit
    • (2) Steel Cables
    • (2) Carabiners
    • (2) Fastlinks
  • (1) Pure Resonance Audio MA120BT 120W Commercial Mixer Amplifier
    • (1) IR Remote Control
    • (1) Power Cord
  • (50') West Penn 224 18/2 Non-Plenum Audio Speaker Wire - Gray
