Inside the Design
This training room sound system is engineered to provide clear, evenly distributed audio for instructional and presentation-based environments. At the heart of the system is the Pure Resonance Audio SD5 SuperDispersion® drop tile ceiling speaker array, which delivers smooth 360° sound coverage for exceptional speech intelligibility throughout the room. Powered by the Pure Resonance Audio MA120BT 7-channel Bluetooth mixer amplifier, the system offers reliable performance, flexible input options, and simple day-to-day operation. Completing the solution is a Shure BLX wireless presenter system with a discreet lavalier microphone, ensuring consistent, professional-quality vocal reinforcement for instructors, presenters, and trainers.
Sound System Features:
- 360° omnidirectional audio coverage for consistent sound throughout the room
- Exceptional speech intelligibility for training and presentation environments
- Simple, drop-in ceiling speaker installation for fast setup
- Bluetooth-enabled mixer amplifier for wireless audio playback
- Reliable wireless lavalier microphone for hands-free presentations
- 7-channel mixer amplifier with flexible inputs and intuitive controls
- Ideal solution for training rooms, classrooms, and meeting spaces
About the System Components
Pure Resonance Audio SD5 SuperDispersion® Ceiling Speaker Array
The SD5 SuperDispersion® ceiling speaker array provides 360° of clear, evenly distributed sound coverage, making it ideal for speech-focused environments. Featuring three 5.25" drivers and a high-performance tweeter, the SD5 minimizes frequency cancellation and delivers excellent vocal clarity with low distortion. Its lightweight, low-profile design allows it to drop seamlessly into standard 2x2 or 2x4 ceiling grids, providing fast installation and professional results.

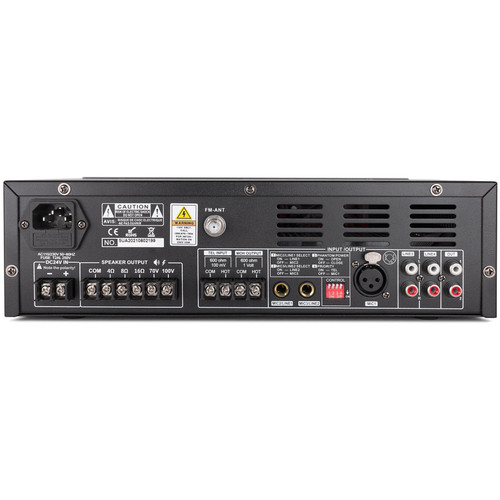

Pure Resonance Audio MA120BT 7-Channel Bluetooth Mixer Amplifier
The MA120BT mixer amplifier delivers 120 watts of clean, dependable power and features seven input channels for versatile system configuration. Bluetooth connectivity allows for wireless audio streaming from mobile devices, laptops, and tablets, while additional inputs support microphones and auxiliary sources. With intuitive front-panel controls, paging capabilities, and an included IR remote, the MA120BT is built for simple operation in training and educational environments.

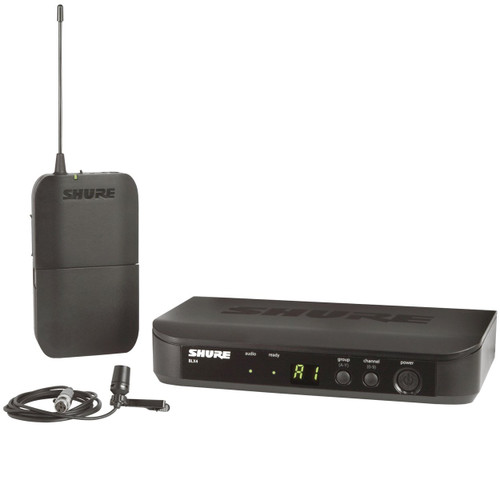

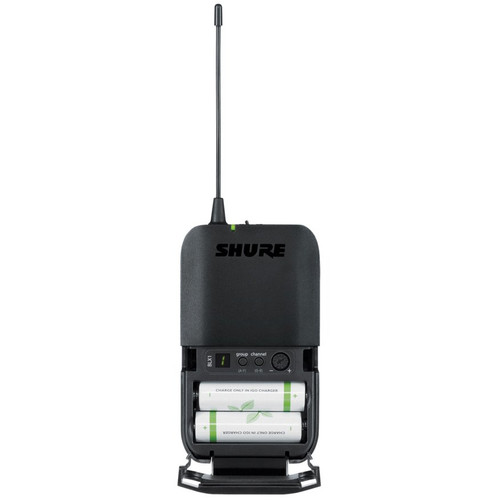

Shure BLX14/CVL Wireless Presenter System
The Shure BLX14/CVL wireless presenter system provides reliable, high-quality wireless audio for professional presentations. The system includes a BLX4 single-channel receiver and a CVL lavalier condenser microphone that delivers clear, natural vocal reproduction. Designed for ease of use and consistent performance, this wireless microphone system allows presenters to move freely while maintaining excellent sound quality.
