Turbosound iNSPIRE iP2000 Powered Column Loudspeaker

Home /
Turbosound iNSPIRE iP2000 Powered Column Loudspeaker (Discontinued)

Description

Details

Although we refer to it as a “column” loudspeaker, the INSPIRE iP2000 delivers the powerful, high-quality sound and optimized dispersion inspired by our award-winning line array products – in a surprisingly lightweight and easy to use, all-in-one form factor. Thanks to an on-board 3-channel digital mixer and multi-channel 1000W Class-D amplifier driving a custom engineered 12" subwoofer, 16 x 2.75" neodymium drivers, and a horn loaded super tweeter, the iP2000 is ideally-suited for small to medium sized performance venues, houses of worship, boardroom presentations, nightclubs, and much more.

The iP2000 is lightweight and features industry leading KLARK TEKNIK Digital Sound Processing (DSP), Class-D amplifier and Spatial Sound technologies – plus convenient Bluetooth stereo audio streaming and iPhone/iPad remote control.

Features

Features

Modular column loudspeaker for portable PA applications and high quality music playback
KLARK TEKNIK’s revolutionary SST (Spatial Sound Technology) for creating 3D acoustic environments
Extremely wide sound dispersion provides consistent sound to the audience and performers
1000W power, multi-channel KLARK TEKNIK Class-D technology
3 channel digital mixer with gain setting recall
Comprehensive remote control via Apple iPhone/iPad
High quality Bluetooth stereo audio streaming
DSP presets for application type and speaker positioning
Intuitive single rotary control user interface with LCD display for ease of navigation
12" high excursion low frequency driver for low distortion sub-bass response
16 x 2.75" neodymium drivers for clean midrange and high frequency reproduction
Horn loaded super-tweeter extends high frequency range and throw
Precision-lock, aluminium array system eliminates speaker stands and cables
Road worthy birch plywood enclosure with hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
Integral ergonomic carrying handles for ease of portability

Specification

System
Frequency Response	45 Hz – 20 kHz ±3 dB 38 Hz – 20 kHz -10 dB
Nominal Dispersion	120° H @ -6 dB points
Maximum SPL	123 dB
Crossover Type	4 way, active and passive
Transducers	1 x 12" (305 mm) LF driver 16 x 2.75" (70 mm) MF drivers 1 x 1" (25 mm) HF compression drive
Limiter	Independent HF, LF
Amplifier
Maximum Output Power	1000W
Type	Class-D
Protection	Short circuit, open circuit, thermal
Amplifier Channels	3
Connectors
Input A / B	2 x combo jack / XLR
Sensitivity	4 dBu, nominal
Input Impedance	16 kΩ unbalanced, 33 kΩ balanced
Maximum Input Level	+22 dBu
Link Output	XLR

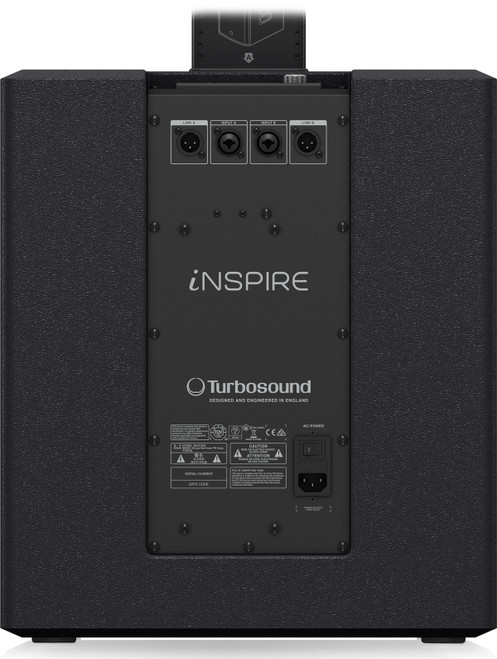

Mains Supply	IEC mains connector with integrated power switch
Controls
Hardware	Rotary push-encoder
Software	iOS interface via Bluetooth
User DSP Functions
Factory EQ Presets	Positioning, Sound mode
Display	LCD 128 x 32, blue, backlit
Equalization	Bass, middle and treble
Protection	Lock-out function for all settings
Bluetooth Wireless Technology
Frequency Range	2402 MHz ~ 2480 MHz
Channel Number	79
Version	Bluetooth 4.0 dual mode
Output	8 dBM
Compatibility	Supports A2DP 1.2 profile
Maximum Communication Range	30 m (without interference)
Connectivity	Master-slave: stereo pairing link
Power Supply
Power Consumption	110 W @ 1/8 max power
Voltage (Fuses)	100-120 V~, 50/60 Hz (T 6.3 A H 250 V)
Enclosure
Construction, Base	15 mm (5/8") birch plywood
Construction, Tower	Aluminium alloy
Finish	Semi matt black paint
Grille	Powder coated perforated steel
Base	19.1" (485 mm) x 16.5" (420 mm) x 19.7" (500 mm)
Tower	32.8" (834 mm) x 4" (103 mm) x 3.5" (89 mm)
Dimensions (H x W x D)	81.2" (2063 mm) x 16.5" (420 mm) x 19.7" (500 mm)
Net Weight	68.1 lbs (30.9 kg)
