Turbosound iNSPIRE iP500 Powered Column Loudspeaker

Home /
Turbosound iNSPIRE iP500 Powered Column Loudspeaker (Discontinued)

Description

Details

Although it's referred to as a “column” loudspeaker, the INSPIRE iP500 delivers the powerful, high-quality sound and optimized dispersion inspired by Turbosound's award-winning line array products – in a surprisingly lightweight and easy to use, all-in-one form factor. Thanks to an on-board 3-channel digital mixer and multi-channel 600W Class-D amplifier driving a custom engineered 8" subwoofer and 6 x 2" neodymium drivers, the iP500 is ideally-suited for small to medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and much more.

Weighing in at a very modest 15 kg (33 lbs), the iP500 is easy to transport and features industry-leading KLARK TEKNIK Digital Sound Processing (DSP), Class-D amplifier and Spatial Sound technologies – plus convenient Bluetooth stereo audio streaming and iPhone/iPad remote control.

Features

Features

Modular column loudspeaker for portable PA applications and high quality music playback
KLARK TEKNIK’s revolutionary SST (Spatial Sound Technology) for creating 3D acoustic environments
Extremely wide sound dispersion provides consistent sound to the audience and performers
600 Watt power, multi-channel KLARK TEKNIK Class-D technology
3 channel digital mixer with gain setting recall
Comprehensive remote control via Apple iPhone/iPad
High quality Bluetooth stereo audio streaming
DSP presets for application type and speaker positioning
Intuitive single rotary control user interface with LCD display for ease of navigation
8" high excursion low frequency driver for low distortion sub-bass response
6 x 2" neodymium drivers with edge wound aluminium voice coils for extended high frequency reproduction
Multiple height configurations for floor or elevated use
Precision-lock system eliminates speaker cables and stands
High impact and lightweight enclosure
Integrated protective perforated steel mesh grilles
Integral ergonomic carrying handle for ease of portability
Durable shoulder bag included for carrying column sections

Specification

System
Frequency Response	65 Hz – 14 kHz ±3 dB 50 Hz – 16 kHz -10 dB
Nominal Dispersion	100° H @ -6 dB points
Maximum SPL	118 dB
Crossover Type	2 way, active
Transducers	1 x 8" (208 mm) LF driver 6 x 2" (54.2 mm) HF drivers
Limiter	Independent HF, LF
Amplifier
Maximum Output Power	600W
Type	LF: Class-D HF: Class AB
Protection	Short circuit, open circuit, thermal
Amplifier Channels	2

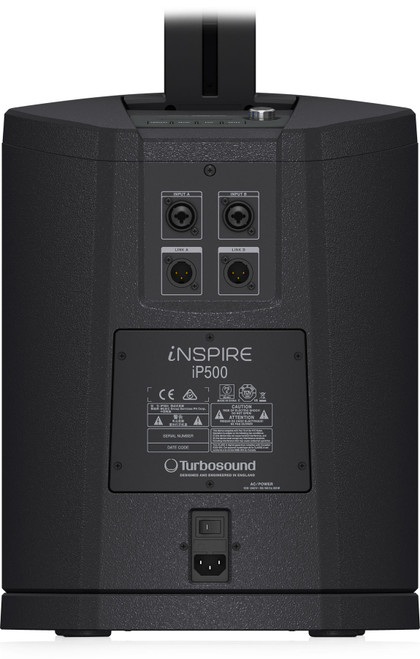

Connectors
Input A / B	2 x combo jack / XLR
Sensitivity	4 dBu
Input Impedance	16 kΩ unbalanced, 33 kΩ balanced
Maximum Input Level	+22 dBu
Link Output	XLR
Mains Supply	IEC mains connector with integrated power switch
Controls
Hardware	Rotary push-encoder
Software	iOS interface via Bluetooth
User DSP Functions
Factory EQ Presets	Positioning, Sound mode
Display	LCD 128 x 32, blue, backlit
Equalization	Bass, middle and treble
Protection	Lock-out function for all settings
Bluetooth Wireless Technology
Frequency Range	2402 MHz ~ 2480 MHz
Channel Number	79
Version	Bluetooth 4.0 dual mode
Output	8 dBM
Compatibility	Supports A2DP 1.2 profile
Maximum Communication Range	30 m (without interference)
Connectivity	Master-slave: stereo pairing link
Power Supply
Power Consumption	80 W @ 1/8 max power
Voltage (Fuses)	100-120 V~, 50/60 Hz (T 6.3 A H 250 V)
Enclosure
Construction, Base	Engineering plastic (GXPP)
Construction, Tower	Engineering plastic (ABS)
Finish	Semi matte black paint
Grille	Powder coated perforated steel
Base	16.4" (416 mm) x 12.6" (321 mm) x 15.7" (400 mm)
Tower	36.1" (918 mm) x 5.2" (132 mm) x 2.8" (72 mm)
Dimensions (H x W x D)	79" (2006 mm) x 12.6" (321 mm) x 15.7" (400 mm)
Net Weight	33.2 lbs (15.1 kg)
