Warehouse and Industrial Space PA Sound System with Octasound SP820A Central Speaker and Bosch Push-to-Talk Paging Microphone

Inside the Design

This warehouse and industrial PA sound system is engineered to deliver clear voice announcements and dependable background audio throughout large open spaces where echoes and ambient noise can reduce intelligibility. At the core of the system is the Octasound SP820A 360° x 180° central speaker, which provides wide, even sound dispersion from a single mounting point—reducing installation time while improving clarity. Paired with the AtlasIED AA240G 240W mixer amplifier and Bosch Plena all-call paging station, this system is ideal for warehouses, industrial storage areas, and distribution facilities requiring reliable paging and music playback. The system is designed to cover approximately 20,000 square feet.

Sound System Features:

• Designed specifically for warehouse and industrial paging applications
• 360° x 180° sound dispersion for wide, even coverage from a single speaker
• Excellent speech intelligibility in large, reverberant environments
• Commercial-grade mixer amplifier with paging and background music support
• All-call paging microphone for clear, prioritized announcements
• Efficient system design minimizes installation time and hardware requirements

About the System Components

Octasound SP820A 12" 360° x 180° Central Speaker System

The Octasound SP820A is a high-performance central loudspeaker designed for large indoor spaces that demand clear, intelligible sound coverage. Its tuned port enclosure houses a highly efficient 12" woofer paired with four compression drivers and horns, delivering full-range audio from a compact, centrally mounted system. With a sensitivity rating of 101 dB and the ability to produce up to 125 dB SPL, the SP820A achieves excellent coverage with minimal amplifier power, making it ideal for warehouse paging and background music applications.

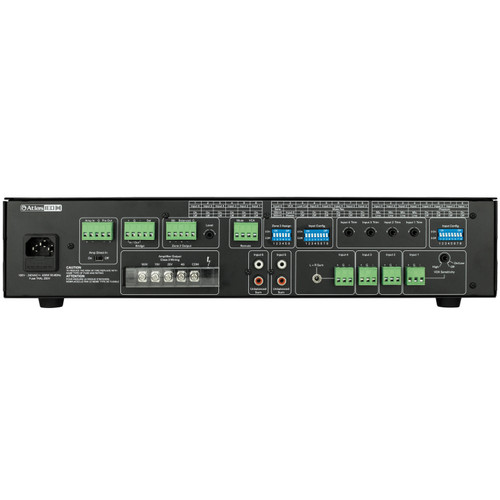

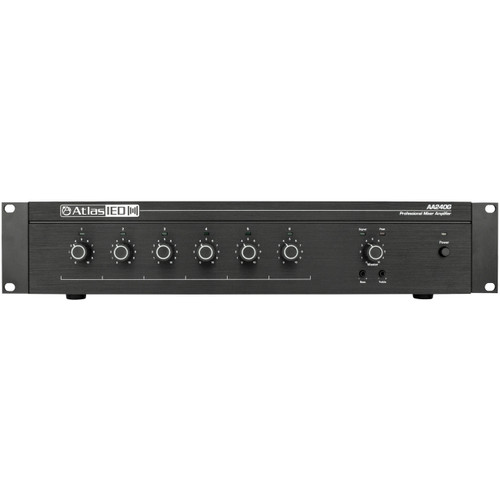

AtlasIED AA240G 240W 6-Input Mixer Amplifier

The AtlasIED AA240G is a 240-watt commercial mixer amplifier designed for distributed audio systems in industrial and commercial environments. Featuring six inputs, including five mic/line inputs and one stereo line input, it supports paging microphones, music sources, and telephone paging systems. Advanced features such as muting, bridge-in/bridge-out capability, remote VCA control, and pre-out/power amp-in connections make the AA240G a flexible and reliable choice for warehouse PA systems requiring expandability and control.

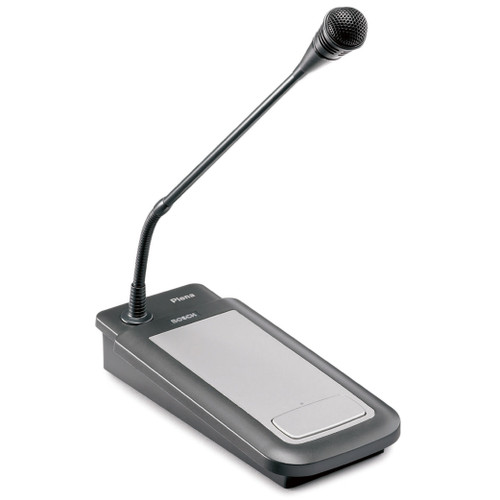

Bosch PLE-1CS Plena All-Call Call Station

The Bosch PLE-1CS Plena all-call call station is a professional tabletop paging microphone designed for public address systems. Its unidirectional condenser capsule ensures clear voice pickup, while the heavy metal base provides stability for daily use. The press-to-talk button includes priority contacts for paging override, and configurable switching allows for momentary or toggle operation. A built-in LED indicator confirms active status, making the PLE-1CS a dependable solution for warehouse-wide announcements.

Octasound SP820A 12" 360° x 180° Central Speaker System

• Provides up to 20,000 square feet of wide, even sound coverage
• 360° horizontal and 180° vertical dispersion for maximum intelligibility
• Rugged, impact-resistant polyurethane elastomer enclosure
• Designed to withstand high humidity and low-temperature environments
• Features four high-compression horn drivers and one 12" subwoofer
• Four integrated suspension points for fast, secure hanging installation
• Extremely durable components for long-term industrial use
• Manufactured in North America using high-quality Eminence components

AtlasIED AA240G 240W 6-Input Mixer Amplifier

• 240-watt commercial mixer amplifier for distributed PA applications
• Six-input design with five mic/line inputs and one stereo auxiliary input
• Bridge in/out capability allows multiple amplifiers to be linked without external relays
• Pre-out and power amp in connections for adding external processing
• Remote or VOX muting support for paging priority applications
• Selectable low-cut filter optimized for paging horns and voice clarity
• VCA remote level control assignable to background music or global mix
• Zone 2 music-on-hold output for CH6 line source
• UL listed for safe and reliable commercial installation

Bosch PLE-1CS Plena All-Call Call Station

• Professional tabletop paging microphone for all-call announcements
• Press-to-talk (PTT) key with configurable momentary or toggle operation
• Priority contacts ensure announcements override background audio
• Green LED indicator shows when the microphone is active
• Stable metal base with rubber feet for secure desktop placement
• Fixed 2 m cable with lockable Euro-style connector
• Phantom-powered directly from the connected amplifier

• (1) Octasound SP820A 12" Central Speaker System
• (1) AtlasIED AA240G 240W 6-Input Mixer Amplifier
• (1) Bosch PLE-1CS Plena All-Call Call Station

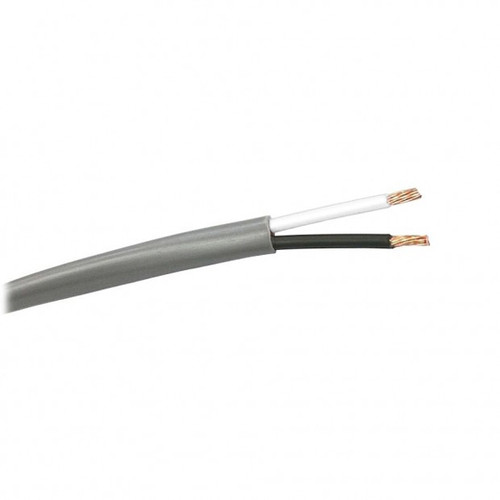

• (500') West Penn 226 14/2 Unshielded Audio Speaker Wire - Gray
