Inside the Design
This warehouse paging sound system combines eight weather-resistant Pure Resonance Audio S6W 6.5" 2-way 70V surface-mount speakers with the RMA500BT 500W Bluetooth mixer amplifier and PTT1 push-to-talk paging microphone to provide clear, intelligible communication across a wide coverage area. The S6W speakers deliver balanced full-range audio for paging, announcements, background music, and general-purpose sound, while their weather-resistant construction makes them suitable for indoor and partially exposed outdoor environments.
The RMA500BT provides 500 watts of Class D power with multiple input options, Bluetooth connectivity, and emergency priority capabilities for flexible day-to-day operation and critical announcements. The PTT1 desktop push-to-talk gooseneck microphone provides clear, focused voice reproduction for routine paging and announcements. With 1,000 feet of 16/2 gauge speaker wire included, this system provides a complete 70V paging solution for broad coverage throughout warehouses, distribution centers, factories, and other commercial facilities.
Sound System Features:
- The IP65-rated S6W speakers feature weather-resistant, UV-protected ABS construction for reliable performance in indoor and partially exposed outdoor environments
- Each S6W features a 6.5" polypropylene cone woofer and 1" silk membrane tweeter for clear, balanced full-range sound with a frequency response of 80Hz - 18kHz and an average SPL of 92 dB
- The RMA500BT 5-channel, 4 ohm/70 volt Bluetooth commercial rack mount mixer amplifier provides 500 watts of high-performance Class D power
- The RMA500BT features a forced air-cooling fan to help accommodate long working hours and maintain reliable performance during extended operation
- Use the RMA500BT Emergency (EMC) input to take priority over other audio sources and clearly broadcast critical paging and emergency announcements
- The PTT1 uni-directional dynamic gooseneck microphone provides excellent speech intelligibility for paging, announcements, and general public address applications
- The included 1,000 feet of 16/2 gauge speaker wire provides the wire needed for flexible installation and extended speaker runs throughout the system
About the System Components

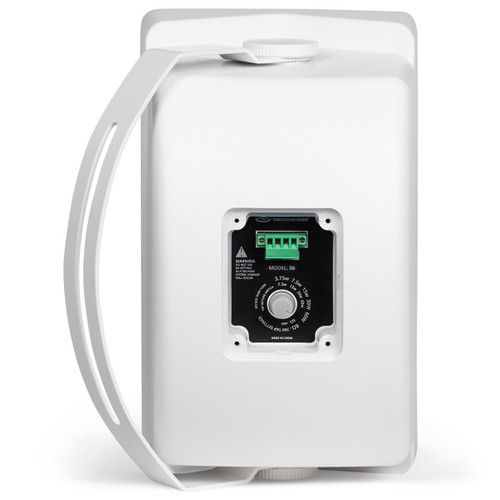

Pure Resonance Audio S6W 6.5" 70V Indoor/Outdoor Surface Mount Speaker
The Pure Resonance Audio S6W 2-way 70-volt surface mount speaker is designed to deliver clear, balanced audio for indoor and outdoor commercial installations. Its IP65 weather-resistant construction and UV-protected ABS enclosure provide reliable durability in partially exposed outdoor areas and demanding indoor environments. The S6W features a 6.5" polypropylene cone woofer and 1" silk membrane tweeter that deliver full-range sound with excellent vocal clarity, a frequency response of 80Hz - 18kHz, and an average SPL of 92 dB. Its integrated 70V transformer provides multiple wattage taps for efficient distributed audio installations, while the included mounting bracket allows flexible positioning for optimized sound coverage. With eight S6W speakers included, this system provides broad, consistent audio coverage throughout warehouse work areas, aisles, loading zones, entryways, and other facility spaces.
Pure Resonance Audio RMA500BT 500W Rack Mount Bluetooth Mixer Amplifier
The Pure Resonance Audio RMA500BT is a 5-channel 70V commercial rack mount mixer amplifier delivering 500 watts of high-performance Class D power for reliable distributed audio. Its multiple inputs provide flexible control for music, paging, and announcements, while built-in Bluetooth connectivity provides convenient wireless audio playback from compatible devices. The amplifier also features a forced air-cooling fan to help maintain reliable performance during extended operation and emergency priority capabilities for critical announcements. The dedicated Emergency (EMC) input can automatically override other audio sources and integrates with existing paging systems, emergency microphones, and relay triggers from fire alarm systems. Its slim rack mount design provides a clean, organized installation for commercial audio systems.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.
Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides clear, reliable voice reproduction for warehouse paging, announcements, general public address, and facility communication applications. Its uni-directional dynamic gooseneck microphone provides focused speech pickup and excellent intelligibility, while the rugged metal table stand provides a stable platform for daily commercial use. The PTT1 features a dual momentary switch for priority paging and a locking switch for continuous use, along with a 5-foot coiled cable and 3-pin male XLR connector for simple connection to compatible audio equipment. Its durable construction makes it well-suited for frequent use in warehouses, distribution centers, factories, and other commercial paging environments.
