Warehouse Speaker System with 4 H6 6.5" All-Weather Horn Speakers, RMA350BT 350W Rack Mount Bluetooth Mixer Amplifier and PTT1 Paging Mic

Inside the Design

This warehouse speaker system is designed to provide clear and powerful audio coverage in demanding warehouse environments. It includes four Pure Resonance Audio H6 6.5" 2-way full-range all-weather horn-loaded loudspeakers, which deliver robust sound both indoors and outdoors. This system is powered by the RMA350BT 350W commercial Bluetooth mixer amplifier, allowing for easy audio control and wireless streaming capabilities, making it versatile for various applications. The PTT1 desktop push-to-talk gooseneck microphone enhances communication, providing reliable and clear paging capabilities across different areas of your facility. Ideal for workshops, storage facilities, loading docks, manufacturing plants, and other industrial spaces, this paging system for warehouse environments ensures that important announcements, safety alerts, and operational updates are heard loud and clear. The rugged design of the components ensures durability, while the flexible configuration allows for easy integration into existing systems, providing a comprehensive solution.

Designed for exceptional clarity and vocal intelligibility, this comprehensive warehouse sound system ensures every message is heard distinctly. Each speaker, capable of covering distances up to 400 feet, benefits from 60 watts of continuous power handling and a 90° x 90° dispersion pattern, ensuring even coverage across the field. This setup guarantees that announcements, emergency notifications, and public safety alerts are delivered with unmatched clarity, far surpassing the intelligibility of typical paging horns used in industrial environments.

Sound System Features:

• Built to withstand harsh conditions, the H6's IP66 weatherproof rating and polypropylene carbonate enclosure provide complete protection against dust, water, and impacts for reliable performance in demanding environments
• Designed for crystal-clear sound, the H6 offers superior voice intelligibility over long distances, ensuring effective communication with its high-output performance and excellent paging capabilities
• Up to 60 watts of continuous power handling and a 90° x 90° dispersion pattern produce comprehensive and even coverage, making the H6 ideal for areas where uniform sound distribution is crucial
• The RMA350BT 5 channel, 4 Ohm/70 Volt Bluetooth commercial rack mount mixer amplifier provides 350 watts of high-performance Class D power
• The RMA350BT features a forced air-cooling fan, which helps accommodate the long working hours of warehouse applications
• The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications



About the System Components

Pure Resonance Audio H6 6.5" Horn Loudspeakers

The Pure Resonance Audio H6 horn-loaded loudspeaker is a durable and reliable choice for public address systems in challenging environments. Constructed from polypropylene and calcium carbonate, it delivers high-quality paging and announcements over long distances, even in extreme conditions. With an IP66 rating and impact-resistant housing, the H6 is protected against dust, dirt, water, and environmental impacts. Ideal for settings like stadiums, schools, arenas, parks, and factories, it provides clear speech with power taps up to 60 watts and a wide 90° x 90° coverage angle. Featuring a 6.5" woofer and a 1" tweeter, it offers high-output sound with a frequency response of 120Hz - 18kHz and 93 dB SPL sensitivity. The built-in 60W 70V/100V transformer and heavy-duty mounting bracket ensure flexible, secure installation, making the H6 a practical solution for various warehouse applications.

Pure Resonance Audio RMA350BT Bluetooth Mixer Amplifier

The simple to operate Pure Resonance Audio RMA350BT 5-channel commercial rack mount mixer amplifier features 350 watts of high-performance power encased in a slim and lightweight space-saving design. This mixer amplifier provides quick and easy Bluetooth connection as well as the ability to accommodate most input sources like microphones, AV equipment, or computer audio. Adjust the audio levels/settings and control the volume of the H6 horn speakers with the included remote control. Not only can you connect your Bluetooth device to the mixer amplifier’s multimedia player you can also use a TF card, USB thumb drive, or the built-in FM tuner. The forced air-cooling fan helps accommodate long working hours making this compact and affordable mixer amplifier perfect for your warehouse environment.

Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.

Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone

The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your warehouse speaker system. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in tough environments.

System & Component Videos

Pure Resonance Audio H6 6.5" Full-Range All-Weather Horn-Loaded Loudspeakers

• Weatherproof - Built to withstand harsh conditions, the IP66 weatherproof rating and polypropylene calcium carbonate enclosure ensure complete protection against dust, water, and impacts while also providing enhanced thermal conductivity for reliable long-term performance in demanding indoor and outdoor environments
• Quality Performance - The 6.5" LF paper and 1" ABS/glass fiber HF drivers produce a frequency response of 120Hz - 18kHz and a max SPL of 110 dB for full-range high-output sound
• Excellent Paging - Designed to deliver crystal-clear sound, the H6 provides superior voice intelligibility essential for effective communication over long distances

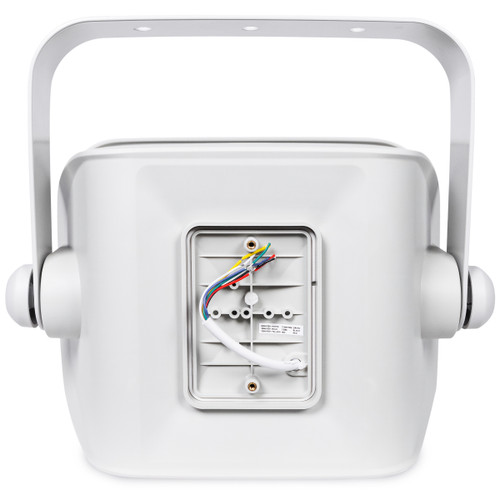

• Built-In Transformer - The H6 features a built-in 60-watt 70V/100V transformer with a 4-ohm bypass and a recessed bare wire connector for versatile power options and a weather-safe connection
• Wide Coverage - Up to 60 watts of continuous power handling and a 90° x 90° dispersion pattern produce comprehensive and even coverage, making the H6 ideal for areas where uniform sound distribution is crucial
• Quick & Secure Installation - The included heavy-duty mounting bracket allows for safe, secure, and straightforward installation, providing stability and peace of mind in small stadiums, schools, warehouses, parks, docks, and other indoor or outdoor commercial applications



Pure Resonance Audio RMA350BT 350W Bluetooth Mixer Amplifier

• 1 RU chassis, high-efficiency, and lightweight design
• MP3 media player supports USB, TF, Bluetooth and FM tuner
• Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
• Bass and treble tone controls
• Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
• Advanced high-performance power amplifier circuit
• 4-16Ω/70V speaker output
• 350W rated output power
• Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
• Remote control



Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone

• Built To Last - Reliable and durable, the PTT1 is built to withstand even the toughest daily use in restaurants, retail stores, schools, offices, or any commercial environment
• Paging and Announcements - This push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
• Excellent Performance - The uni-directional gooseneck dynamic microphone provides excellent performance and speech intelligibility from a push-to-talk microphone
• Metal Table-Stand - The gooseneck microphone is mounted on a rugged table-stand that is die-cast from corrosion-resistant zinc alloy metal
• Push-To-Talk Switch - The table-stand features a dual momentary switch for priority paging as well as a locking switch for continuous usage
• Simple Setup - The dynamic capsule does not require AC power and a coiled 5' cable with an XLR connector, make for a quick and easy to set up

• (4) Pure Resonance Audio H6 6.5" 2-Way Full-Range All-Weather Horn-Loaded Loudspeakers
• (4) Mounting Brackets
• (1) Pure Resonance Audio RMA350BT 5-Channel 350W Commercial Rack Mount Mixer Amplifier with Bluetooth
• (1) Power Cord
• (1) Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
• (1) Pure Resonance Audio XLRF-3-PREP Female XLR to Prep Patch Cable - 3ft

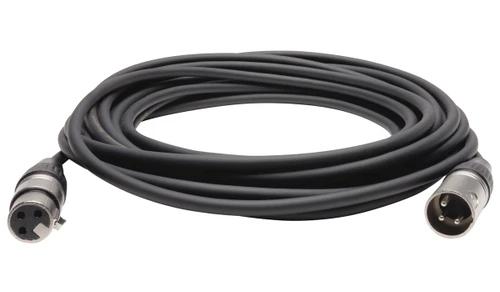

• (1) Pure Resonance Audio XLR-25 Female XLR to Male XLR Cable - 25ft
• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Black
