- Description
Details

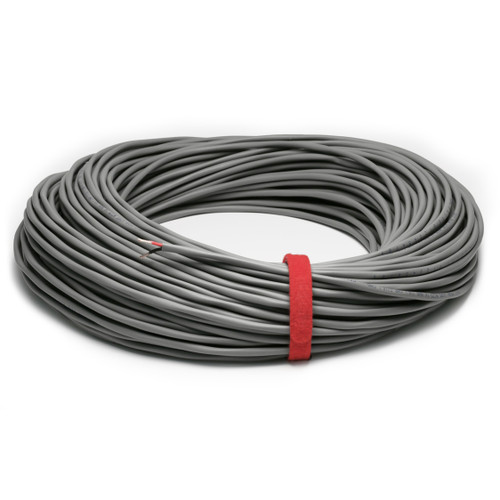

The 224 is a non-plenum audio speaker cable that features 18/2 stranded bare copper conductors, unshielded with an overall jacket. Great for intercom, security, sound audio, background music, and power limited control circuits.
- Features
Features
- Available in tangle-free boxes or spools
- Sequential footage markings
- 2 Number of conductors
- Flexible polyvinyl-chloride jackets
- Jacket Color: Gray or Black
- Conductor Color: Red and Black
- Specification
Construction Parameters Conductor 18 AWG Bare Copper Stranding 7x26 Insulation Material PVC Insulation Thickness 0.008'' Nom Number of Conductors 2 Jacket Material PVC Jacket Thickness 0.017'' Nom Overall Cable Diameter 0.156'' Nom Approximate Cable Weight 16.1 lbs/1M' Nom Flame Rating UL 1666 Riser Flame Test Electrical & Environmental Properties Temperature Rating -20°C to +60°C Operating Voltage 300 V RMS Max. Capacitance Between Conductors @ 1 kHz 30 pf/ft Nom DC Resistance per Conductor @ 20° C 6.2 Ohms/1M' Nom Insulation Colors Black, Red Jacket Color Black RoHS Compliant Yes Mechanical Properties Min. Bend Radius (Install) 1.6" (40.64 mm) Max. Recommended Pull Tension 42 lbs (19 kg) - Documents
Documents
- Reviews
Write Your Own Review
