West Penn 224 18/2 Non-Plenum Audio Speaker Cable

Home /
Shop By Brand /
West Penn Wire /

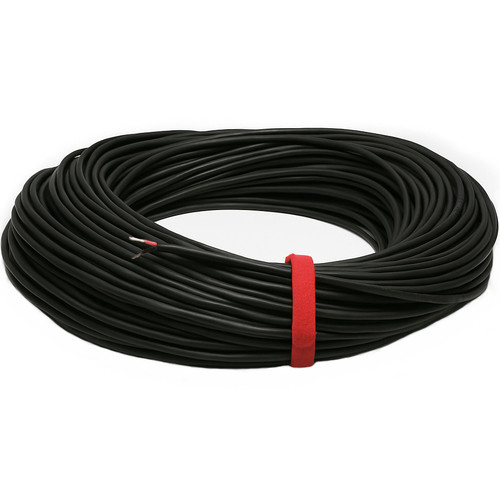

West Penn 224 18/2 Non-Plenum Audio Speaker Wire - Black (100ft)

Description

Details

The 224 is a non-plenum audio speaker cable that features 18/2 stranded bare copper conductors, unshielded with an overall jacket. Great for intercom, security, sound audio, background music, and power limited control circuits.

Features

Features

Available in tangle-free boxes or spools
Sequential footage markings
2 Number of conductors
Flexible polyvinyl-chloride jackets
Jacket Color: Gray or Black
Conductor Color: Red and Black

Specification

Construction Parameters
Conductor	18 AWG Bare Copper
Stranding	7x26
Insulation Material	PVC
Insulation Thickness	0.008'' Nom
Number of Conductors	2
Jacket Material	PVC
Jacket Thickness	0.017'' Nom
Overall Cable Diameter	0.156'' Nom
Approximate Cable Weight	16.1 lbs/1M' Nom
Flame Rating	UL 1666 Riser Flame Test
Electrical & Environmental Properties
Temperature Rating	-20°C to +60°C
Operating Voltage	300 V RMS
Max. Capacitance Between Conductors @ 1 kHz	30 pf/ft Nom
DC Resistance per Conductor @ 20°C	6.2 Ohms/1M' Nom
Insulation Colors	Black, Red
RoHS Compliant	Yes
Mechanical Properties
Min. Bend Radius (Install)	1.6" (40.64 mm)
Max. Recommended Pull Tension	42 lbs (19 kg)
