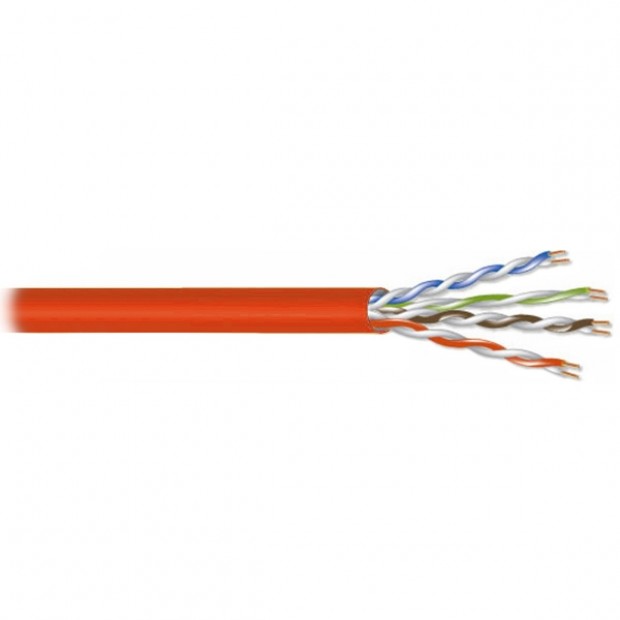

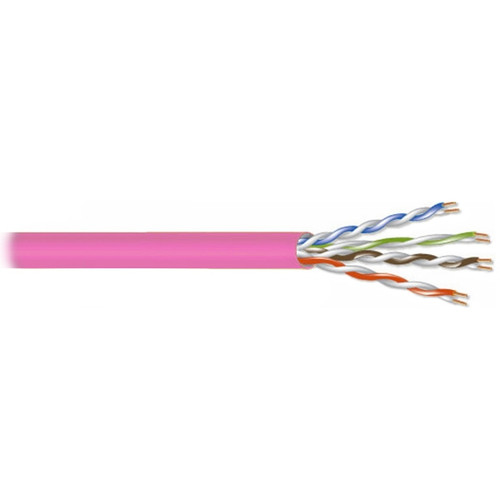

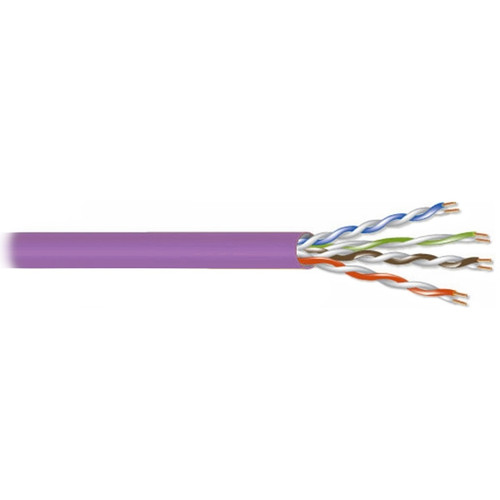

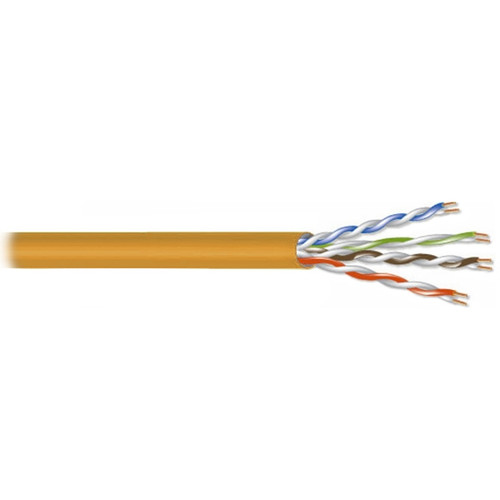

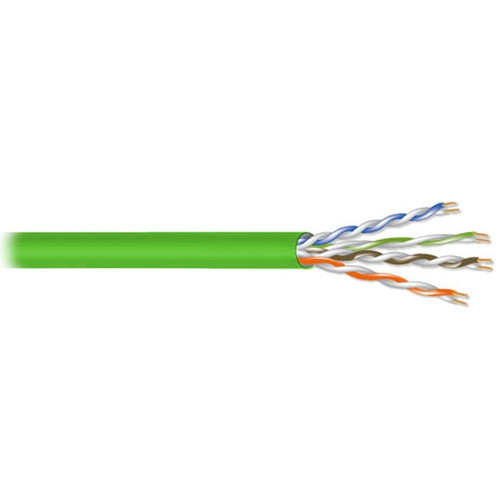

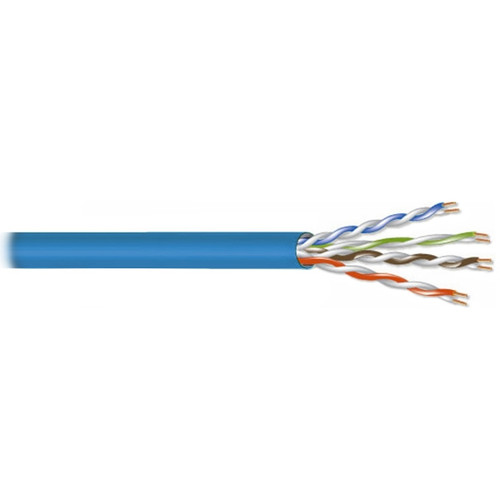

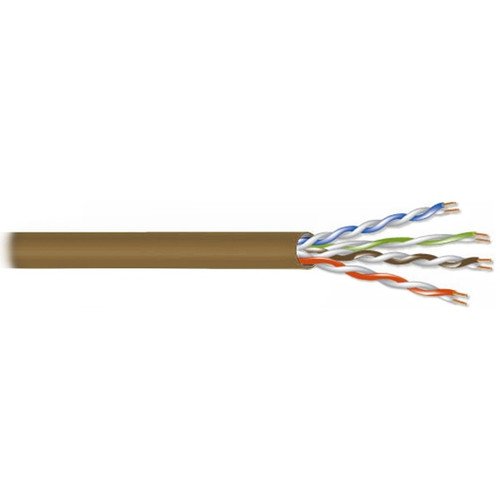

West Penn's 254245 is an unshielded CAT5E network plenum cable with 4 pairs of 24 AWG solid bare copper conductors and an overall plenum PVC jacket. Applications include Ethernet, IP cameras, digital integration, and more.

Description

West Penn Wire's 254245 is an unshielded CAT5E network plenum cable with 4 pairs of 24 AWG solid bare copper conductors and an overall plenum PVC jacket. Applications include Ethernet, IP cameras, digital integration, and more.

Features
  • Conductor: 24 AWG Bare Copper
  • Stranding: Solid
  • Number of Conductors: 8 (4 Pair)
  • Insulation: Dual Insulation FEP - 0.008"
  • Shield: None
  • Drain: None
  • Jacket Material: Plenum PVC
  • Overall Cable Diameter: 0.190'' Nom.
  • Approximate Cable Weight: 25 lbs/1M' Nom.
  • Flame Rating: NFPA 262

Specifications
Number of Pairs 4
AWG Size 24
Conductor Stranding Solid
Conductor Type Bare Copper
Nominal DCR 26 Ohm/1000f
Insulation Type Flouropolymer
Shield Type Unshielded Twisted Pair (UTP)
ANSI/TIA Category Category 5E TIA/EIA 568C.2
Pull Tension 25 lbs
Bend Radius 1.025 in
Cable Weight 23 lbs (10.43 kg)
