West Penn D3651 2 Pair 22 AWG Data Grade Wire

Home /
Shop By Brand /
West Penn Wire /
West Penn D3651 2 Pair 22 AWG Data Grade Wire - Gray (1000ft)

More Views

West Penn D3651 2 Pair 22 AWG Data Grade Wire - Gray (1000ft)

Part # D3651GY1000

Model # D3651

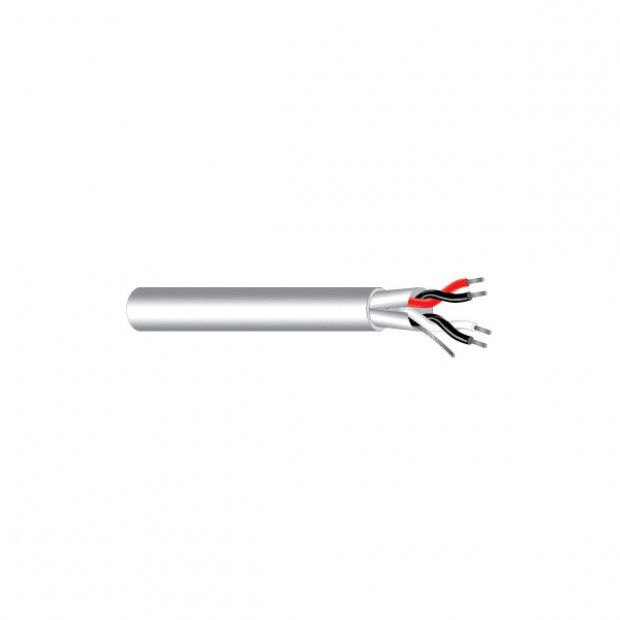

The West Penn D3651 is a shielded, fire-resistant, paired, multi-strand 22 AWG. Serial Data Grade Cable with tinned copper conductors. This cable is meant for indoor use with control, signaling, electronic, and microprocessor based applications.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Cable length is 1000'

Features

Features

NEC Type CM
(UL) Listed
Meets 300V requirements as specified in the NEC
Flame Rating: UL1685

Specification

NEC Rating	CM, NEC Article 800
Approvals	(UL) or c(ETL)us Listed
Construction Parameters
Conductor	22 AWG Tinned Copper
Stranding	7x30
Insulation Materials	Copolene
Insulation Thickness	0.010" Nom.
Number of Conductors	4 (2 Pair)
Shield	100% Aluminum Polyester Foil
Drain	Stranded Tinned Copper
Jacket Material	PVC
Jacket Thickness	0.030" Nom.
Overall Cable Diameter	0.235" Nom.
Approximate Cable Weight	27 lbs/ 1M' Nom.
Flame Rating	UL 1685
Electrical & Environmental Properties
Temperature Rating	-20deg C to 60deg C
Operating Voltage	300 V RMS
Max.Capacitance Between Conductors @ 1 KHz	26 pf/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz	47 pf/ft Nom.
DC Resistance per Conductor @ 20deg C	17 Ohms/1M' Nom.
Velocity of Propagation	71% Nom.
Impedance	55Ω Nom
Insulation Colors	1. Black/Red, 2. Black/White
Jacket Color	Gray
Mechanical Properties
Max. Recommended Pull Tension	51 lbs
Min. Bend Radius (Install)	2.3"
