Williams AV BA SYS1 Infinium Broadcast Audio System with 2 Receivers
Usually arrives in 5-9 business days.

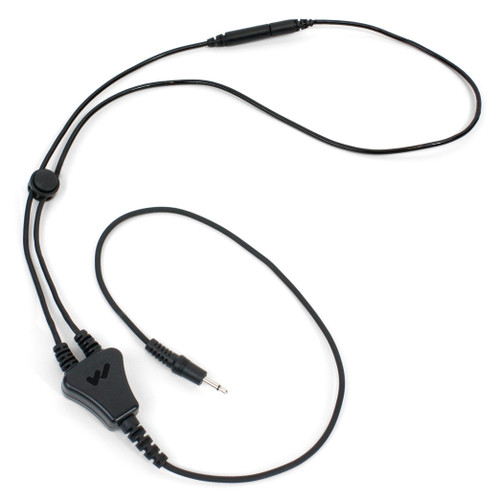

The BA SYS5 Infinium Flex assistive listening system is a complete, future-ready solution that combines FM, Wi-Fi, and Auracast broadcast audio into a single integrated system. Building on the proven Infinium Flex Bundle, the BA-SYS5 adds the receivers and accessories needed to begin serving guests immediately. The system includes the FM+ T55C D FM/Wi-Fi transmitter, Infinium CT1 Auracast controller/transmitter, four FM handheld receivers, four surround earphones, and two neckloops, providing maximum flexibility for a wide range of assistive listening applications.
The FM+ T55C D simultaneously broadcasts audio over FM and Wi-Fi, allowing guests to listen using the included FM receivers or stream audio directly to their smartphones through the free WaveCAST app. The Infinium CT1 adds Auracast broadcast audio, enabling direct streaming to compatible hearing aids, cochlear implants, earbuds, headphones, smartphones, and Williams AV Infinium receivers. Together, these three broadcast technologies provide exceptional compatibility while allowing venues to support both traditional assistive listening devices and the latest personal audio technologies.
Designed for modern professional AV installations, both transmitters feature integrated Dante networking for seamless integration with digital audio systems. The included dual rack-mount kit installs both half-rack units side-by-side in a single rack space for a clean, professional installation. Designed, engineered, and manufactured in the USA and TAA-compliant, the BA-SYS5 is ideal for venues seeking a complete, scalable assistive listening solution that delivers maximum accessibility, immediate deployment, and long-term flexibility.

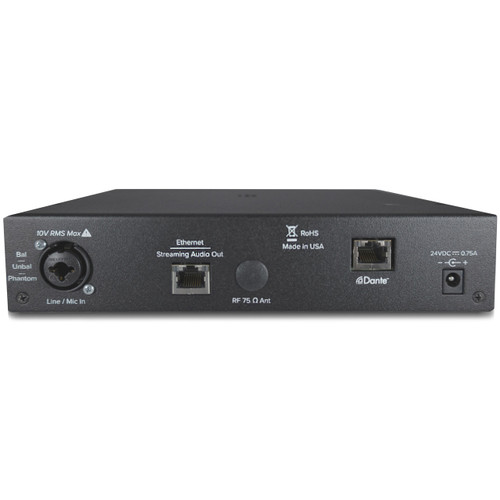

| FM T55C D FM Transmitter | |
|---|---|
| Broadcast Technologies | FM (72-76 MHz), Wi-Fi & Dante |
| FM Transmission Range | Up to 1,000 ft (304 m) with ANT 005 antenna |
| Audio Input | XLR/TRS Combo Mic/Line Input with Phantom Power; Dante Input |
| Rackmount | 1/2-Rack Width, 1RU; Compatible with RPK 005 & RPK 006 Rack Kits |
| Dimensions (H x W x D) | 1.72" (43.69 mm) x 8.45" (214.63 mm) x 8.25" (209.55 mm) |
| Weight | 3.2 lbs (1.45 kg) |

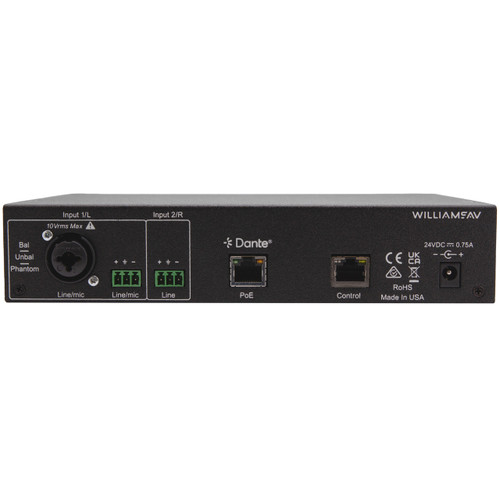

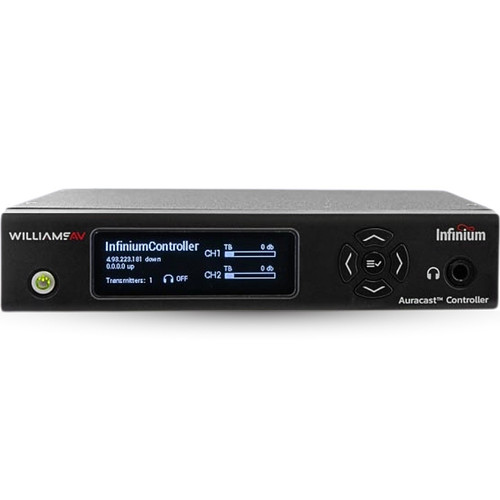

| BA CT1 Controller and Transmitter | |
| Broadcast Technology | Auracast Broadcast Audio with Dante |
| Network Connectivity | Gigabit Ethernet (RJ45) with PoE and Web-Based Management |
| Controller Installation | 1/2-Rack Width (1RU), Shelf, or Tabletop; Compatible with RPK 005 & RPK 006 Rack Kits |

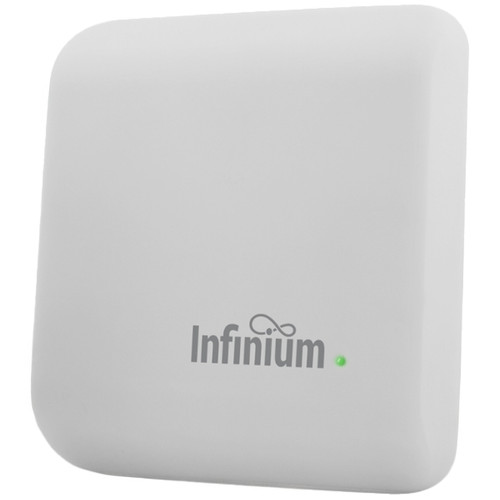

| Transmitter Installation | Ceiling, Wall, or Shelf Mount with PoE |
| Dimensions (H x W x D) |
Controller: 1.72" (43.69 mm) x 8.45" (214.63 mm) x 8.25" (209.55 mm) Transmitter: 1.19" (30.23 mm) x 4.7" (119.38 mm) x 5" (127 mm) |
| Weight |
Controller: 2.3 lbs (1.04 kg) Transmitter: 0.4 lbs (0.18 kg) |

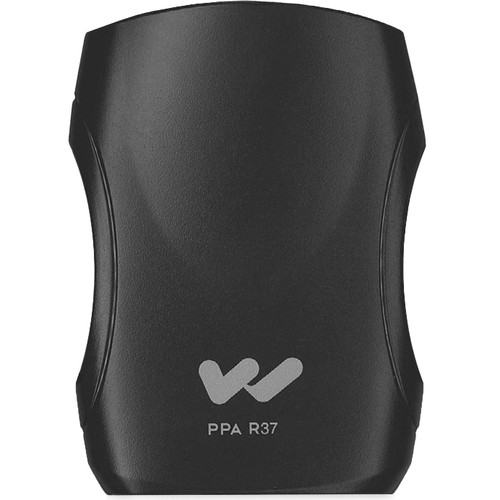

| PPA R37N Receiver | |
| Current Consumption | Nominal 52 mA |
| Operating Frequency | 17 channels |
| FM Deviation | +75 kHz |
| Input Overload | 100 mV |
| Frequency Response | 200 Hz to 15 kHz, ± 3 dB |
| Signal-to-Noise Ratio | 65 dB at 100 μV |
| Audio Output | 35 mW, max. 16 ohm load |
| Output Connector | 3.5 mm stereo phone jack, accepts either stereo or mono plug |
| Dimensions (H x W x D) | 4.1" (104 mm) x 2.85" (72 mm) x 1.38" (35 mm) |
| Weight | 0.28 lbs (0.127 kg) with batteries |
