The Williams AV DW SYS3ACM 12-person Digi-Wave ACM wireless intercom system delivers portable full-duplex communication for production teams. Includes headsets, charging station, and cases with subgroup control, All Call, and flexible access point technology.

Description

Williams AV DW SYS3ACM 12-Person Digi-Wave ACM Wireless Intercom System

The DW SYS3ACM Digi-Wave ACM system is a fully portable 12-person wireless intercom solution designed for professional production environments. Ideal for broadcast, theater, and live events, it delivers clear full-duplex communication without the need for a fixed base station, allowing complete mobility and flexibility.

This advanced system features Flexible Access Point technology, enabling any unit to function as the system hub to maximize range and maintain reliable communication across large or complex venues. Teams can communicate instantly using All Call functionality or divide into up to four customizable subgroups for efficient coordination between departments such as lighting, camera, stage, and security.

Administrators benefit from flexible control options that allow system programming online or offline, ensuring smooth setup and management without interrupting live communication. With intuitive subgroup switching and private line capability, the system supports both large-scale coordination and direct one-on-one communication when needed.

Features

  • 12-person Digi-Wave ACM wireless full-duplex intercom system
  • Designed for broadcast, theater, live events, and production teams
  • Fully portable system with no fixed base station required
  • Flexible Access Point allows any unit to act as system hub
  • Supports up to four customizable communication subgroups
  • All Call function for instant team-wide communication
  • Private line communication for direct leader-to-user contact
  • Up to 16 hours of battery life for all-day operation
  • Includes headsets, a charging station, and protective cases
  • Ideal for scalable professional production communication workflows

Specifications

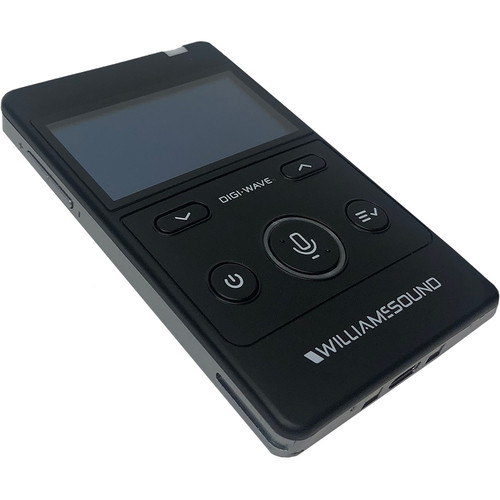

DLT 400-ACM
Frequency Range 2.4 GHz ISM Band (2402–2476 MHz, FHSS)
Operating Range Up to 900 ft (274 m) depending on environment
Battery Type 1800 mAh Lithium Polymer rechargeable battery
Battery Life Up to 16 hours talk time per charge
Audio Frequency Response 100 Hz - 7.2 kHz (intercom/Q&A modes), up to 11.5 kHz (other modes)
Signal-to-Noise Ratio 73 dB (A-weighted)
Total Harmonic Distortion 0.1% at 1 kHz
Encryption Security 87-bit/128-bit encryption with PIN protection
Headphone Output 3.5 mm TRRS jack, 25 mW into 32 ohms
Charging Interface USB-C plus contact charging for CHG 412 system
Dimensions (H x W x D) 4.22" (107.3 mm) x 2.60" (66 mm) x 0.50" (12.6 mm)
Weight 0.21 lbs (0.1 kg)

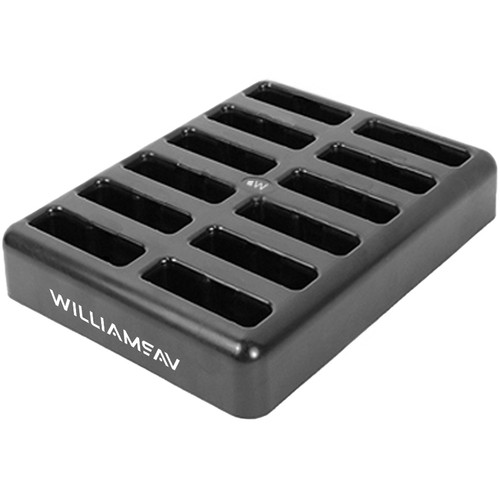

CHG 412
Power Supply Input TFP 066, 90-240 VAC input, 1.5 A max
Power Supply Universal DC adapter, 5 VDC - 6A output, center positive
Output Rating 5 VDC, 0.5A per bay (12 charging bays)
Charging Time ~5 hours
Unit Capacity 12 Units
Compatible Units Transceiver: DLT 400 Receiver: DLR 400 RCH
Indicators Charge status indicators on DLT or DLR
Approvals CE, FCC, WEEE, RoHS, CB
Enclosure Black, ABS plastic with metal base
Dimensions (H x W x L) 1.5" (38.1 mm) x 7" (177.8 mm) x 9" (228.6 mm)
Weight 1.8 lbs (0.82 kg)

DOCUMENTS

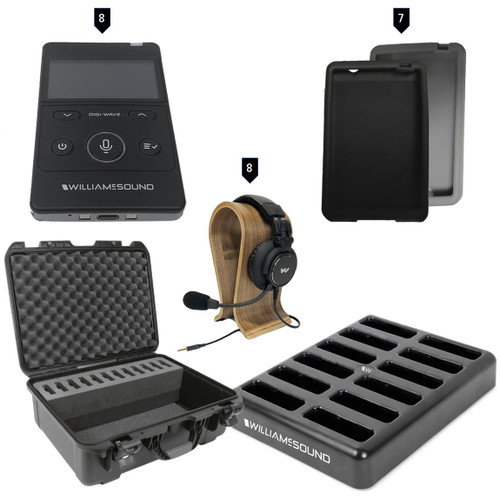

System Includes

  • (12) DLT 400-ACM Digi-Wave ACM Transceivers
  • (12) MIC 157 Single-Muff Headset with Microphone and TRRS Plug

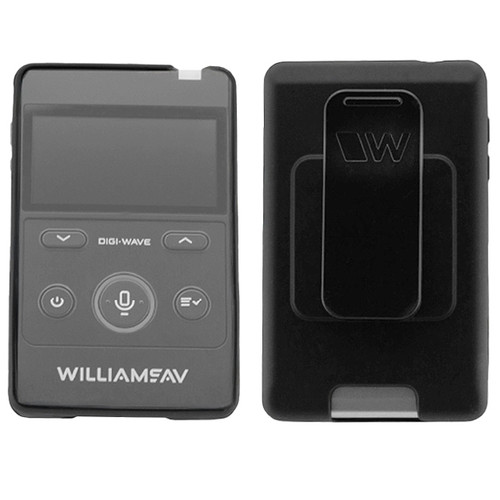

  • (12) CCS 063 BK Protective Carry Case
  • (1) CHG 412 12-Bay Charger with Power Supply
  • (1) CCS 053 Large Wheeled Carry Case with FMP 048 Custom Foam Insert
