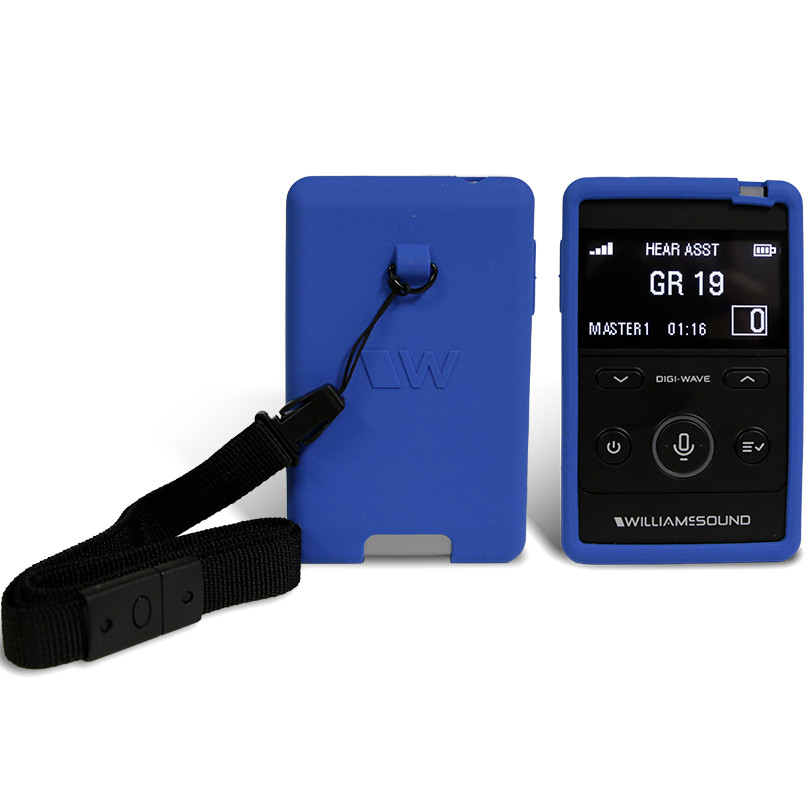

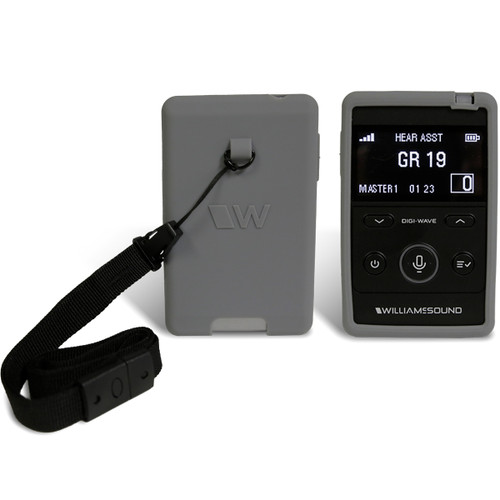

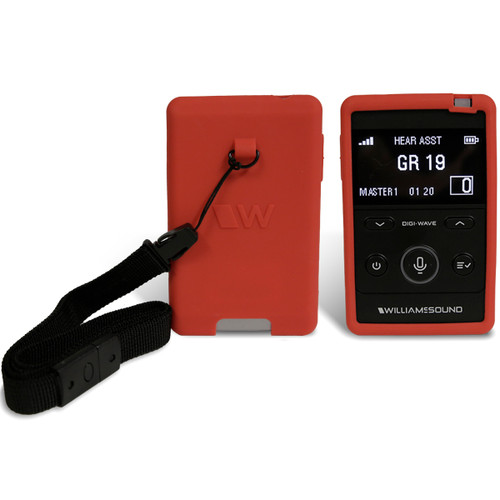

Williams AV DW SYS1AIM Digi-Wave AIM Wireless Interpretation System

The Digi-Wave AIM DW SYS1AIM system is a portable, professional wireless interpretation solution designed for bilingual presentations, meetings, and guided tours. Built around the Advanced Interpretation Module (AIM), it enhances standard Digi-Wave functionality with powerful features such as Q&A mode, enabling seamless two-way communication between presenters, interpreters, and audience participants. With support for up to 24 channels, the system delivers flexible, high-quality audio for simultaneous interpretation across a wide range of applications.

Designed for real-world usability, the system allows users to customize channel names using ISO language codes or custom labels, making it easy to organize multilingual events. Subgroup functionality enables segmentation of users into specific listening groups, while Control Mode allows system configuration and programming without interrupting live sessions. These features ensure efficient management in dynamic environments such as conferences, training sessions, and multi-room events.

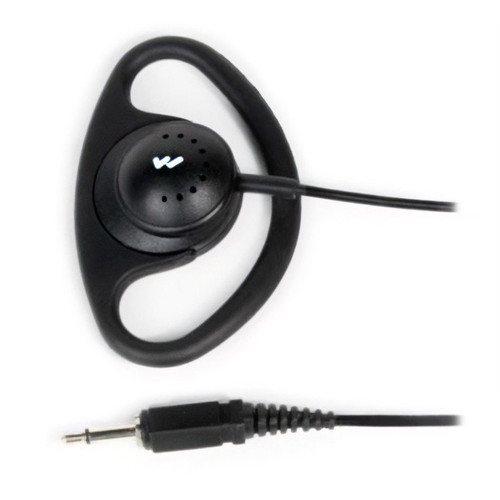

This complete system supports one presenter, one interpreter, one two-way participant for audience questions, and up to nine listeners. It includes transceivers, receivers, microphones, earphones, and a 12-bay charging case for streamlined deployment. Expandable with additional receivers or transceivers, the DW SYS1AIM is a scalable and reliable solution for professional interpretation and communication needs.

Features

Features

Wireless Digi-Wave AIM interpretation system for bilingual presentations
Q&A mode enables real-time audience interaction and two-way communication
Supports up to 24 channels for flexible multi-language environments
Includes 3 transceivers for presenter, interpreter, and audience interaction
9 receivers included for audience listening
Custom channel naming with ISO language codes or user-defined labels
Subgroup functionality for organized multi-room or multi-group setups
Control Mode allows offline programming without interrupting events
High-quality digital audio for clear and reliable communication
Expandable system with additional receivers and transceivers

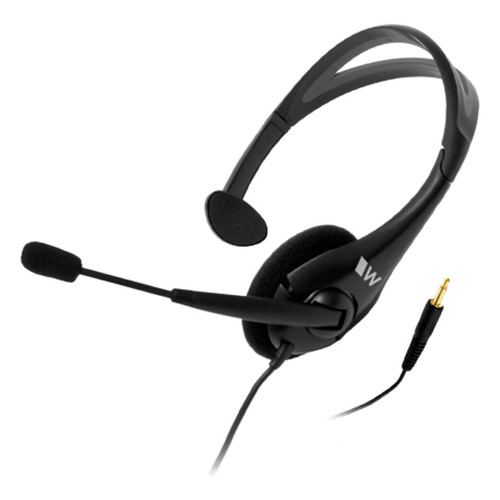

Includes headset and plug-in microphones for versatile input options
12-bay charging case for efficient device management and storage
Ideal for conferences, guided tours, business meetings, and training sessions

Specification

DLT 400-AIM
Frequency Range	2.4 GHz ISM Band (2402 - 2476 MHz, FHSS)
Operating Range	Up to 900 ft (274 m) depending on environment
Battery Type	1800 mAh Lithium Polymer (rechargeable)
Battery Life	Up to 16 hours talk time per charge
Audio Frequency Response	100 Hz - 7.2 kHz (INTP/Q&A modes), up to 11.5 kHz (other modes)
Signal-to-Noise Ratio	73 dB (A-weighted)
Encryption & Security	87-bit/128-bit encryption with PIN protection
Dimensions (H x W x D)	4.22" (107.33 mm) x 2.60" (66 mm) x 0.50" (12.6 mm)
Weight	0.21 lbs (0.1 kg)
DLR 400 RCH
Frequency Range	2.4 GHz ISM Band (2402 - 2476 MHz, FHSS)
Operating Range	Up to 900 ft (274 m) depending on environment
Battery Type	1800 mAh Lithium Polymer (rechargeable)
Battery Life	Up to 32 hours per charge
Audio Frequency Response	100 Hz - 7.2 kHz (Intercom), up to 11.5 kHz (other modes)
Signal-to-Noise Ratio	73 dB (A-weighted)
Encryption & Security	87-bit/128-bit encryption with PIN protection
Dimensions (H x W x D)	2.60" (66 mm) x 4.22" (107.3 mm) x 0.50" (12.6 mm)
Weight	0.21 lbs (0.1 kg)
MIC 144
Microphone Element	Electret Condenser, Noise Cancelling
Microphone Sensitivity	-62 +/- 4dBv/µbars @1kHz @1/4"
Microphone Frequency Response	100kHz - 10 kHz
Microphone Signal to Noise Ratio	More than 60 dB @ 1 kHz
Earphone Sensitivity	105 dB SPL Typical at 1 kHz @ 1 mW on flat plate coupler
Earphone Impedance	32 ohms typical @ 1 kHz
Boom	Gooseneck
Plug	3.5 mm TRRS w/ black plastic housing and strain relief
CHG 412 PRO
Power Supply Input	TFP 066, 90-240 VAC input, 1.5 A max
Power Supply	Universal DC adapter, 5 VDC - 6A output, center positive
Output Rating	5 VDC, 0.5 A per bay (12 charging bays)
Charging Time	~5 hours
Unit Capacity	12 Units
Compatible Units	Transceiver: DLT 400 Receiver: DLR 400 RCH
Dimensions (H x W x L)	1.5" (38.1 mm) x 7" (177.8 mm) x 9" (228.6 mm)
Weight	1.8 lbs (0.82 kg)
