Williams AV IR SY11 IR Plus Complete Infrared Assistive Listening System

The IR SY11 IR+ complete infrared assistive listening system is a fully integrated, professional-grade solution designed for large venues requiring reliable, ADA-compliant audio distribution. Built around the IR M1 rack-mounted modulator, this system delivers clear and consistent infrared audio transmission, supported by dual IR E4 wall-mounted emitters for wide-area coverage and optimal signal performance. It is engineered for seamless installation in theaters, houses of worship, conference centers, and other public spaces where assistive listening is essential.

This complete system includes four WIR RX22-4 infrared receivers with lanyards, four HED 021 performance headphones, and two NKL 001 neckloop attachments for hearing aid compatibility and ADA compliance. Power and convenience are supported through a CHG 3502 two-bay drop-in charger and rechargeable NiMH battery system, ensuring continuous operation and easy device management for users. The included MLB 003 linking bar and BKT 024 wall mounts provide secure and flexible emitter installation options.

Designed for turnkey deployment, the IR SY11 system also includes IDP 008 ADA signage to meet accessibility requirements in public environments. With its combination of robust hardware, scalable design, and user-friendly operation, this system delivers a complete infrared assistive listening solution that meets the demands of modern professional AV installations while ensuring clear, intelligible audio for all users.

Features

Features

Complete infrared assistive listening system for large venues
IR M1 rack-mounted modulator for centralized signal processing
Dual IR E4 wall-mounted emitters for wide-area coverage
4 WIR RX22-4 IR receivers with lanyards
4 performance headphones included for flexible user options
2 NKL 001 neckloops for hearing aid compatibility (ADA compliant)
2-bay drop-in charger for efficient battery management

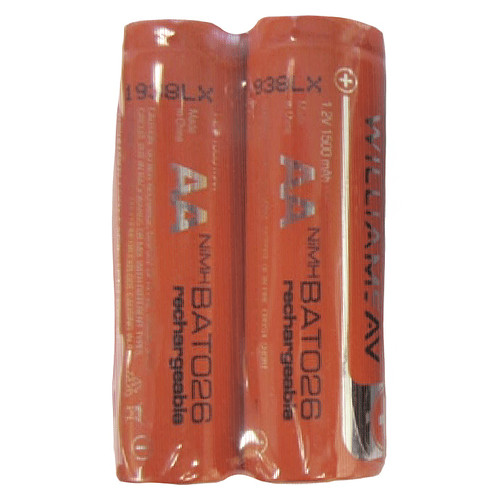

Rechargeable NiMH battery system included
MLB 003 linking bar and BKT 024 wall mounts included

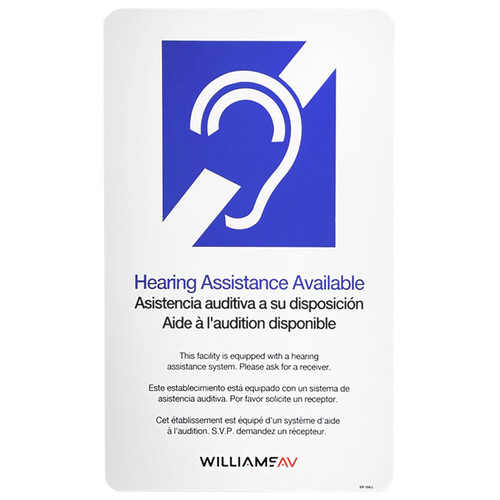

IDP 008 ADA signage for accessibility compliance
Designed for professional AV and assistive listening installations

Specification

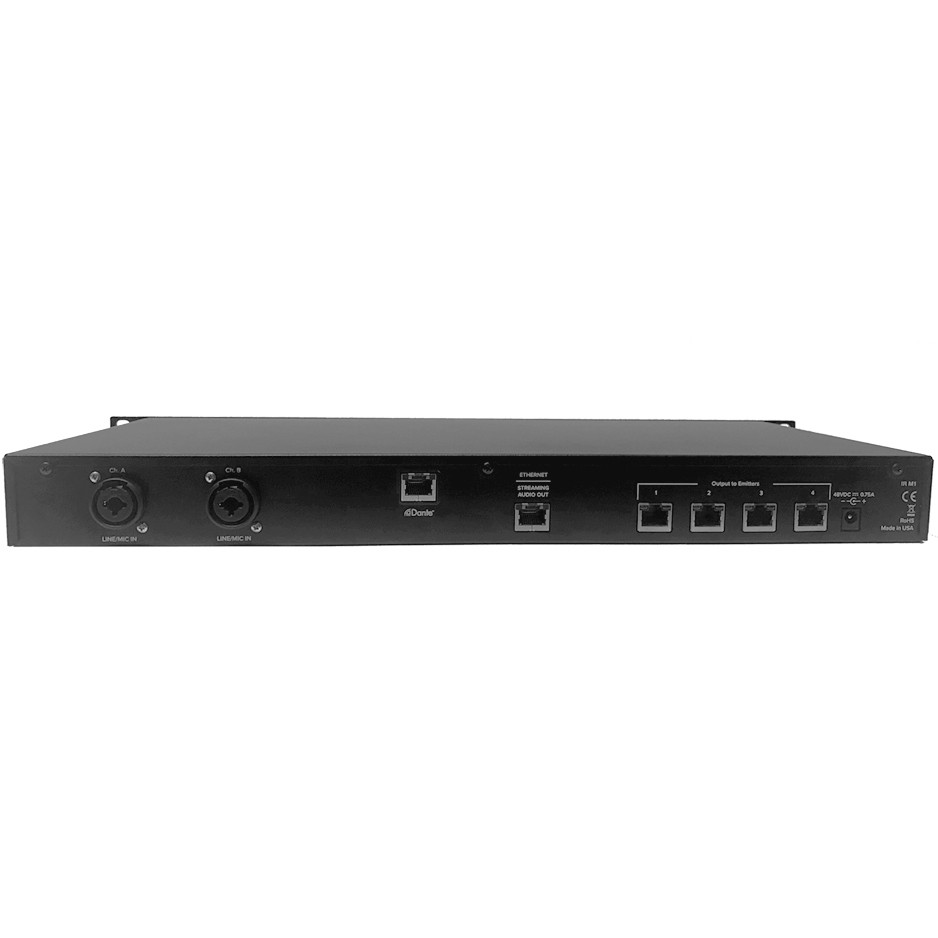

IR M1 Modulator
Power Supply	110-240 VAC input, +48 VDC output (international desktop supply)
Power Consumption	36W
Audio Inputs	2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable)
Frequency Response	40 Hz - 16 kHz (+1 dB, -3 dB)
Signal-to-Noise Ratio	67 dB (typical)
Dimensions (H x W x D)	1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm)
Weight	5.2 lbs (2.4 kg)
IR E4 Emitter
Power	48 VDC supplied by IR M1 via CAT 5e cable
Coverage Area	Up to 18,000 (1670 m) square feet in single channel mode
Connectivity	+48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1
Operating Requirements	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Dimensions (H x W x D)	1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm)
Weight	0.8 lbs (0.36 kg)
WIR RX22
Battery Type	2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Drain	25 mA, nominal
Frequency Response	25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion	Less than 1%, electrical response
Controls	ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch
Dimensions (H x W x L)	1.2" (30.4 mm) x 3.86" (72.4 mm) x 4.1" (104.1 mm)
Weight	0.28 lbs (0.13 kg)

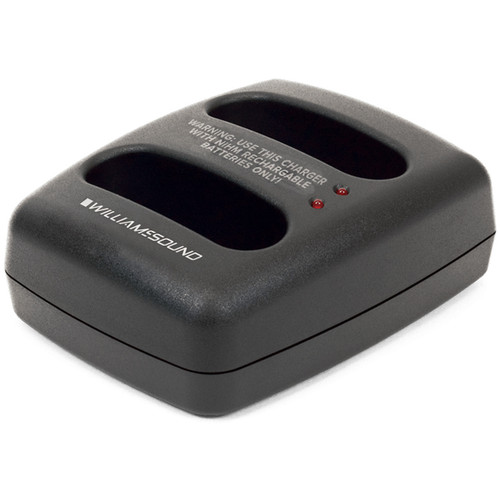

CHG 3502
Power Supply	Input: 100-240 VAC, 50-60 Hz, 0.5-0.3A Output: 6 VDC, 1.5A
Charging Time	16 hours nominal
Charger Power	Input: 6 VDC, 300 mA, Center Positive Output: 100mA per bay
Dimensions (H x W x L)	2" (50.8 mm) x 2.85" (72.39 mm) x 4.88" (123.95 mm)
Shipping Weight	1.1 lbs (0.5 kg)
