Williams Sound DLR 360 Digital Receiver for Listen-Only Applications
Receives Up to 2 Presenters Simultaneously During Team Presentations
The Williams Sound DLR 360 is a conveniently rechargeable receiver for listen-only applications. The DLR 360 is a receiver only. Users of receivers can only hear what is being broadcast by Williams Sound DLT transceiver(s).
The DLR 360 is both simple to set up and to use. It features automatic mode selection and shut-off. The large LCD screen displays channel, volume, battery level, and RF signal strength. The DLR 360 receives up to two presenters simultaneously during team presentations. It can be used with earphones, headphones, neckloop or built-in speaker. The DLR 360 uses two (2) AAA Alkaline or NiMH batteries. The optional rechargeable NiMH batteries (BAT 022-2) are sold separately.
Effective communication is the lifeblood of any successful organization. DLR 360 receivers are compatible with the DLT 300 transceiver (sold separately) and can be combined with the Digi-Wave Dock communication hub (sold separately) to complete your Digi-Wave digital communication system. The Williams Sound Digi-Wave communication system is lightweight and portable with two-way technology that is designed to connect you instantly to employees, clients, and team members. Add any quantity of DLR 360 receivers to your communication system for larger groups.
| Frequency Band | 2.4 GHz (ISM band) |
|---|---|
| Modulation | FSK |
| Multi Channel | Up to 15 simultaneous channels (one way mode) |
| Case Material | Black ABS Plastic |
| Battery Type | 2 x AAA Alkaline or NiMH |
| Battery Life | Alkaline Disposable (BAT 010-2): Up to 24 hrs NiMH Rechargeable (BAT 022-2): Up to 18 hrs |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Audio Frequency Response (-3dB knee level) | Conference Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz |
| SNR | 65 dB (A-weighted) |
| THD | 0.1% (typical) |
| Antenna | Internal |
| Headphone Audio Output | 3.5 mm stereo jack with mono output for headphones, earphones, or neckloop 27 mW maximum @33Ω mono Internal Speaker (disabled when headphone jack in use) |
| Controls | Power, Volume +/-, Channel +/-, Setup, Battery Type |
| Display | LCD shows status: Battery Level, RSSI, Group/Channel# |
| Indicators | Red LED - blinks when charging Green LED - stays on when charged |
| Docking Connector | 30-pin iPod Style for charging and audio out |
| Compatible Transmitter | DLT 300 only |
| Temperature Range | 32° – 122°F (0° to 50°C) |

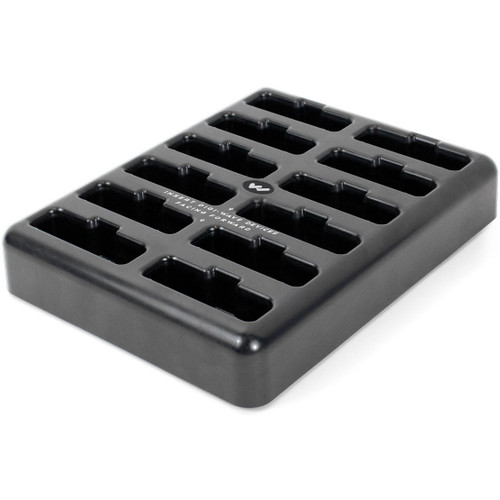

| Optional Chargers | 2-bay CHG 102, 12-bay CHG 1012, TFP 045 |
| Accessories | Silicone Skin, Lanyard, Wrist Strap |
| Approvals | FCC, Industry Canada, RoHS, CE, WEEE, RCM |
| Dimensions (H x W x D) | 3.54" (90 mm) x 2.36" (60 mm) x 0.63" (16 mm) |
| Weight | 0.11 lbs (0.05 kg) |
