- Description
Details
The Williams Sound DWS COM 8 300 is a simultaneous, two-way, wireless intercom system in the 2.4 GHz band. Works well in an event-production scenario where the director and other crew members can immediately and accurately communicate from different production locations. One- and/or two-way simultaneous communication with other crew members: director and assistant director can speak simultaneously; members can hear both the director and assistant director; members can participate as listen-only or can access 2-way mode with the push of a button. Director is always in control.
- Features
Features
- Set-up lock (SLOC) enables the administrator to lock each DLT 300 to prevent unauthorized changes to a Digi-Wave system set-up
- 4-digit secure key, entered into each group members' DLT 300, prevents unauthorized individuals from listening in on the group
- Expandable, flexible: accommodates any size production crew
- Completely portable; no base station needed
- Reversible, lightweight headsets allow for hands-free, push-to-talk operation
- 2.4 GHz digital and frequency-hopping technology offer low-noise, crystal-clear audio, continuity in
- communication and less interference from other products
- Push-to-talk button can mute unwanted background noise
- Four independent groups can be operating simultaneously within a range of up to 200 feet outdoors/300 feet indoors (in 1- or 2-way mode, depending on environmental conditions). Outside of this range, other groups can be in operation
- All-day operation (up to 14 hours) on one charge
- Easily import/export additional audio via 3.5mm mini plug
- Specification

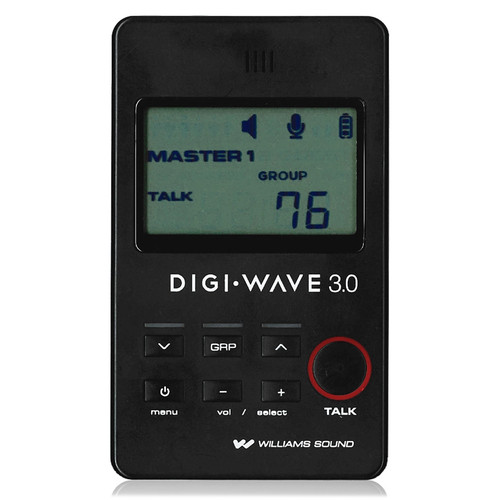

DLT 300 Transceiver Color Black/Silver (Front/Back) Case Material Black ABS plastic Battery Type Lithium Polymer with smart charge built into transceiver; 2000 mAH Battery Life Up to 14 hrs talk time per charge Current consumption range: 39 mA @ idle to 94 mA w/1 Ch Tx and 3 Ch Rx Power Save Auto Sleep Mode after 5 minutes of no RF signal from compatible devices Charge Time 5 hrs TFP 045 with cable and international adapters Optional Chargers 2-bay CHG 102, 12-bay CHG 1012, TFP 045 Simultaneous Channels/Groups/Talkers Up to 15 simultaneous channels (0-14) (Interpretation mode) Up to 4 simultaneous groups (2 way mode) Up to 4 simultaneous talkers per group (2-way mode) Up to 6 simultaneous talkers per group (2-way Intercom mode) Operating Frequencies 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS Audio Frequency Response Conference Mode, Interpreter Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz (-3dB Knee Level) SNR 74 dB (A-weighted, Maximum output) THD 0.33 % Microphone Input Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (tip/sleeve) with electret microphone bias, adjustable gain with 63dB range Headphone Output 3.5 mm phone jack; 33 Ω load Audio Output Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal speaker (disabled when haedphone jack in use) <20mW @ 10% THD/RL = 33Ω Range Up to 750 ft (depending upon environmental conditions) Modulation FSK RF Output 14 dBm Typical Security 87 bit encryption, Secure Key Code, Setup Lock (SLOC) Controls Front panel push buttons for volume up/down, group select, menu access and selection, timer, time, MIC on/off, power on/off, tone control SLOC access and Secure Key access. System reset button (rear panel) Outputs 3.5 mm stereo/mono headphone jack; 30 pin charging jack with audio out to base stations Side Tone -12 dB below volume, tone variation [ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB] Indicators LCD (Group, channel, volume level, battery status, mode, number of people with talk button on) LEDs Charge status: Red LED around talk button when enabled Docking Connector 30-pin Connector for charging and audio in/out Compatible Receiver DLR 360 only Approvals FCC, Industry Canada, CE, RoHS, WEEE, RCM Dimensions (H x W x D) 2.43" (61.8 mm) x 4.07" (103.3 mm) x 0.44" (11.3 mm) Weight 0.18 lbs (0.082 kg) MIC 044 2P Headset Microphone Color Black Phantom Powered No Nominal Impedance 32 Ω Frequency Response 150 - 18 kHz Pick-Up Pattern Cardiod Element Electret Condenser Earphone Sensitivity 105 dB @ 1 kHz Replacement Windscreen WND 008 Replacement Earpad EAR 035 Plug 2 x 3.5 mm Cord 39" Weight 0.19 lbs (0.086 kg) - Documents
Documents
- System Includes
System Includes
- (8) DLT 300 Transceivers *
- (8) MIC 044 2P Headset Microphones

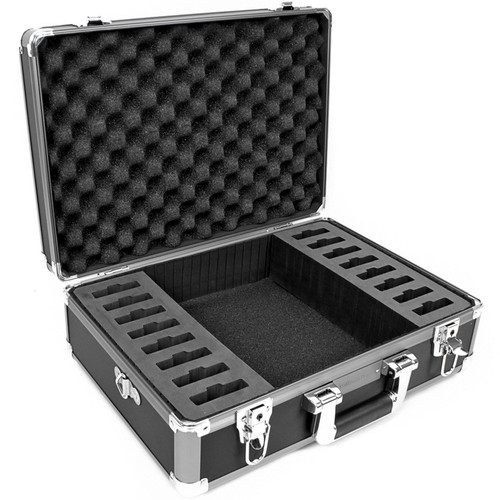

- (1) CCS 030 DW 16 Heavy-duty System Carry Case
- (1) CCS 044 GR Grey Silicone Skin
- (7) CCS 044 BK Black Silicone Skins
* Each DLT 300 is packaged with an individual charger
