This simultaneous, two-way system helps you hear in everyday situations - and you can easily access two-way communication with the push of a button. Perfect for classrooms, Digi-Wave maximizes a student’s ability to hear, ensures that the teacher’s message is heard clearly, and provides the option for student Q&A.
In The Classroom:
Add an optional DLT 300 and MIC 044 2P headset microphone to your DWS PCS 2 300 to create the ideal team-teach scenario. Two teachers can speak simultaneously and hear one another. The student can hear both teachers and has push-to-talk capability.
In Group Settings:
Add an optional DLT 300 to your DWS PCS 2 300 to enhance conference/meeting interaction. Place a DLT 300 on either end of a conference table. (The DLT 300 features a built-in microphone and speaker; so, additional headsets for other meeting attendees are unnecessary.) The listener (with a DLT 300) can hear other meeting attendees and has push-to-talk capability.
| DLT 300 | |
|---|---|
| Color | Black/Silver (Front/Back) |
| Case Material | Black ABS plastic |
| Battery Type | Lithium Polymer with smart charge built into transceiver; 2000 mAH |
| Battery Life | Up to 14 hrs talk time per charge Current consumption range: 39 mA @ idle to 94 mA w/1 Ch Tx and 3 Ch Rx |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Charge Time | 5 hrs. TFP 045 with cable and international adapters |
| Simultaneous Channels/Groups/Talkers | Up to 15 simultaneous channels (0-14) (Interpretation mode) Up to 4 simultaneous groups (2 way mode) Up to 4 simultaneous talkers per group (2-way mode) Up to 6 simultaneous talkers per group (2-way Intercom mode) |
| Operating Frequencies | 2.4 GHz (ISM band) 2402 - 2476 MHz FHSS |
| Audio Frequency Response (-3dB Knee Level) | Conference Mode, Interpreter Mode: 140 - 11.5 KHz Intercom Mode: 140 - 7.6 KHz |
| SNR | 74 dB (A-weighted, Maximum output) |
| THD | 0.33 % |
| Microphone Input | Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (tip/sleeve) with electret microphone bias, adjustable gain with 63dB range |
| Headphone Output | 3.5 mm phone jack 33 Ω load |
| Audio Output | Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal speaker (disabled when haedphone jack in use) |
| Range | Up to 750 ft (depending upon environmental conditions) |
| Modulation | FSK |
| RF Output | 14 dBm Typical |
| Security | 87 bit encryption, Secure Key Code, Setup Lock (SLOC) |
| Controls | Front panel push buttons for volume up/down, group select, menu access and selection, timer, time, MIC on/off, power on/off, tone control SLOC access and Secure Key access. System reset button (rear panel) |
| Outputs | 3.5 mm stereo/mono headphone jack 30 pin charging jack with audio out to base stations |
| Side Tone | -12 dB below volume, tone variation [ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB] |
| Indicators | LCD (Group, channel, volume level, battery status, mode, number of people with talk button on) |
| LED's | (charge status) Red LED around talk button when enabled |
| Docking Connector | 30-pin Connector for charging and audio in/out |
| Compatible Receiver | DLR 360 only |
| Warranty | 2 years parts and labor (90 days on accessories); 6 months on internal battery |
| Dimensions (H x W x D) | 4.07" (103.38 mm) x 2.43" (61.72 mm) x 0.44" (11.18 mm) |
| Weight | 0.181 lbs (0.082 kg) |

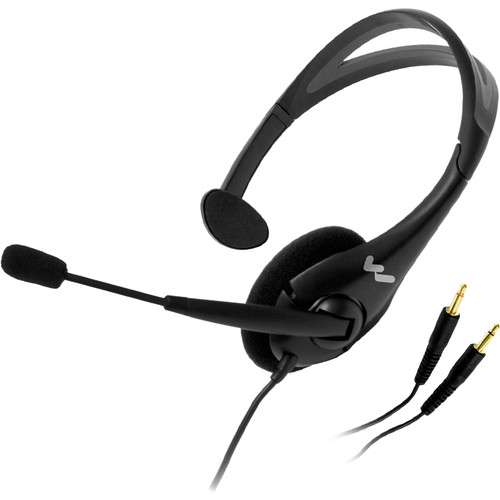

| MIC 044 2P | |
| Color | Black |
| Plug | 2 x 3.5 mm |
| Phantom Powered | No |
| Nominal Impedance | 32 Ω |
| Frequency Response | 150 - 18 kHz |
| Pick-Up Pattern | Cardiod |
| Element | Electret Condenser |
| Earphone Sensitivity | 105 dB @ 1 kHz |
| Replacement Windscreen | WND 008 |
| Replacement Earpad | EAR 035 |
| Warranty | 90 days |
| Cord | 39" (990.6 mm) |
| Weight | 0.19 lbs (0.0862 kg) |
| CHG 102 | |
| Compatible Units | Transceivers: DLT 300, DLT 100 2.0, DLT 100 Receivers: DLR 360, DLR 60 2.0 and DLR 60 |
| Power Input | 110 - 240V AC @ 50 - 60 Hz |
| Power Output | 5 volts DC @ 1.2 amps |
| Warranty | 90 days |
| Cable Length | 6' (1.8 m) |
*Each DLT 300 is Packaged with an Individual Charger
