Williams Sound DWS PCS 2 400 Digi-Wave 400 Personal Communication System

The Digi-Wave™ system is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using its frequency-hopping algorithm, it avoids interference and is a very secure method of communication.

The Williams Sound DWS PCS 2 400 Digi-Wave Personal Communication System includes two DLT 400 transceivers which allows users to listen and talk to one another wirelessly in a variety of scenarios.

Features

Features

Team Teaching:

Full, two-way communication between two teachers
Students can hear both teachers
Allows student interaction (Q&A) with the quick push of a button
Portable - easily moved from room to room

Portable Presentation:

One-way communication with any size group
Expandable system allows for multiple presenters
For mobile or stationary use
Use with spk 024 or any powered speaker

Specification

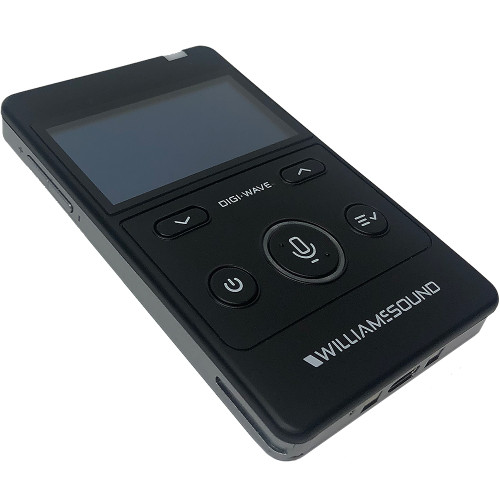

DLT 400 Transceivers
Color	Black/Silver (Front/Back)
Case Material	Black ABS Plastic
Battery Type	Lithium Polymer with Smart Charge Built into Transceiver; 1800 mAH
Battery Life	Up to 16 hrs Talk Time Per Charge @ 1ch Tx and 1ch Rx
Power Save	Auto Sleep Mode After 5 Minutes of No RF Signal from Compatible Devices
Charge Time	5 hrs. Approx.
Operating Frequencies	2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
Simultaneous Channels/Groups/Talkers	Up to 15 Simultaneous Channels (0-14) (Interpretation Mode) Up to 4 Simultaneous Groups (2 Way Mode) Up to 4 Simultaneous Talkers Per Group (2-Way Mode) Up to 6 Simultaneous Talkers Per Group (2-Way Intercom Mode)
Operating Frequencies	2.4 GHz (ISM Band); 2402 – 2476 MHz FHSS
Audio Frequency Response (-3dB Level)	Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz
SNR	73 dB (A-Weighted, Default Rx Volume with Mic Input)
THD	0.1% Default Volume, 1kHz)
Microphone Input	Internal Microphone (Disabled When MIC Jack Engaged) and 3.5 mm Phone Jack (Sleeve) with Electret Microphone Bias, Adjustable Gain with 63dB Range
Headphone Output	3.5 mm Phone Jack; 25 mW, R 32 ohms
Audio Output	Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
Range	Up to 900 ft (274 m) (Depending Upon Environmental Conditions)
Modulation	FSK
RF Output	19 dBm Typical
Security	87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for Settings
Side Tone	-6 dB Below Volume, Tone Variation (Off, Low and High Settings Available)
Indicators	OLED
LED’s	Red LED around Talk button when enabled; Bi-color, Changing Green and Red LED at Top
Charging Connectors	USB-C; Two Contacts for use with CHG 412
Compatible Receiver	DLR 400 RCH, DLR 400 ALK, DLT 300 with Some Limitations and DLR 360 with Some Limitations
Dimensions (H x W x D)	2.6" (66 mm) x 4.22" (107.3 mm) x 0.5" (12.6 mm)
Weight	3.3 oz (94 g) including battery

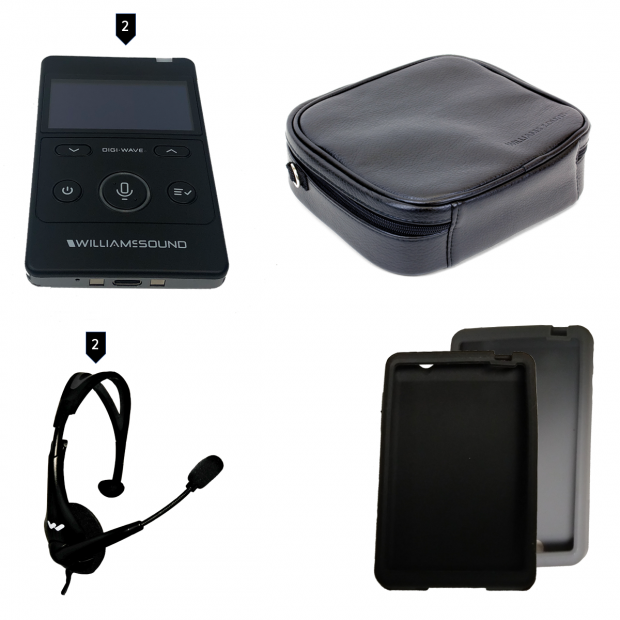

System Includes
