The Digi-Wave™ system is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using its frequency-hopping algorithm, it avoids interference and is a very secure method of communication.
The Williams AV DWS PCS 3 400 RCH Digi-Wave Personal Communication System includes the DLT 400 transceiver and the DLR 400 RCH receiver which allows users to listen and talk to one another wirelessly in a variety of scenarios.
Team Teaching:
Portable Presentation:

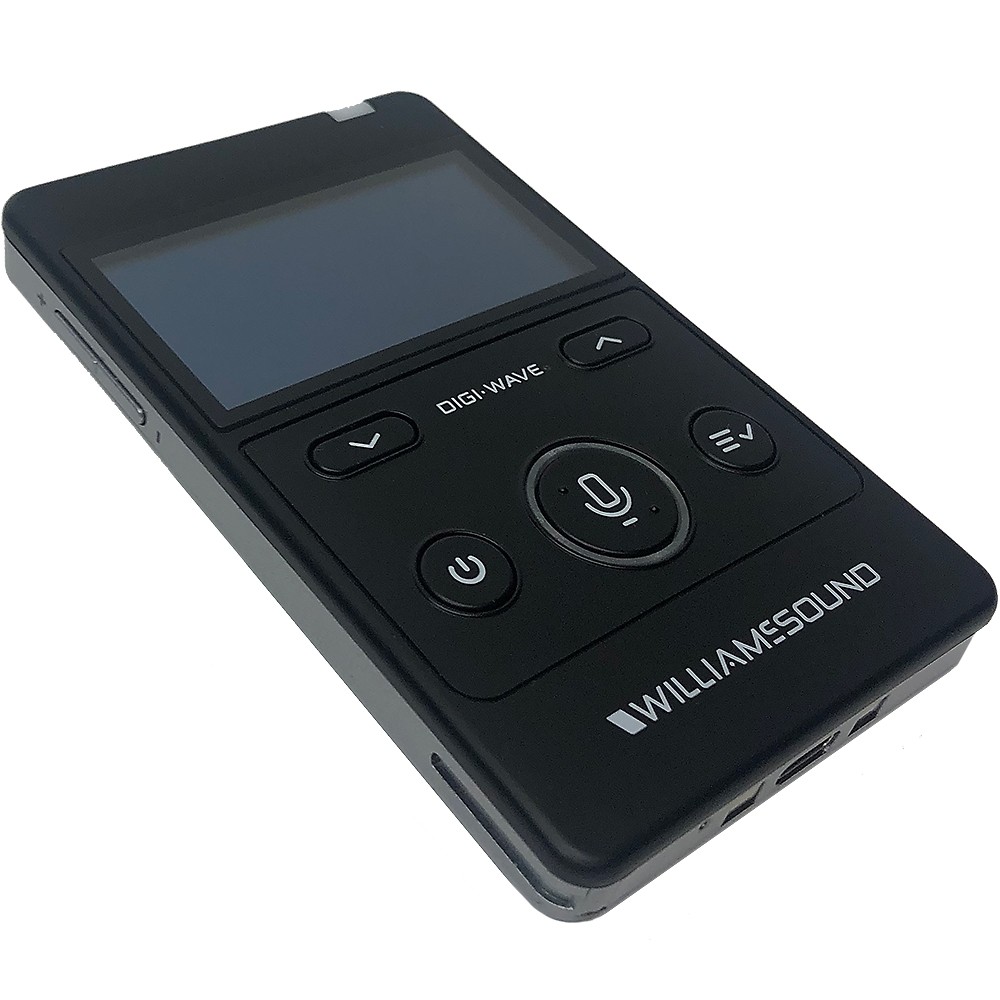

| DLT 400 Transceivers | |
|---|---|
| Color | Black/Silver (Front/Back) |
| Case Material | Black ABS Plastic |
| Battery Type | Lithium Polymer with Smart Charge Built into Transceiver; 1800 mAH |
| Battery Life | Up to 16 hrs Talk Time Per Charge @ 1ch Tx and 1ch Rx |
| Power Save | Auto Sleep Mode After 5 Minutes of No RF Signal from Compatible Devices |
| Charge Time | 5 hrs. Approx. |
| Operating Frequencies | 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS |
| Simultaneous Channels/Groups/Talkers | Up to 15 Simultaneous Channels (0-14) (Interpretation Mode) Up to 4 Simultaneous Groups (2 Way Mode) Up to 4 Simultaneous Talkers Per Group (2-Way Mode) Up to 6 Simultaneous Talkers Per Group (2-Way Intercom Mode) |
| Operating Frequencies | 2.4 GHz (ISM Band); 2402 – 2476 MHz FHSS |
| Audio Frequency Response (-3dB Level) | Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz |
| SNR | 73 dB (A-Weighted, Default Rx Volume with Mic Input) |
| THD | 0.1% Default Volume, 1kHz) |
| Microphone Input | Internal Microphone (Disabled When MIC Jack Engaged) and 3.5 mm Phone Jack (Sleeve) with Electret Microphone Bias, Adjustable Gain with 63dB Range |
| Headphone Output | 3.5 mm Phone Jack; 25 mW, R 32 ohms |
| Audio Output | Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) |
| Range | Up to 900 ft (274 m) (Depending Upon Environmental Conditions) |
| Modulation | FSK |
| RF Output | 19 dBm Typical |
| Security | 87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for Settings |
| Side Tone | -6 dB Below Volume, Tone Variation (Off, Low and High Settings Available) |
| Indicators | OLED |
| LED’s | Red LED around Talk button when enabled; Bi-color, Changing Green and Red LED at Top |
| Charging Connectors | USB-C; Two Contacts for use with CHG 412 |
| Compatible Receiver | DLR 400 RCH, DLR 400 ALK, DLT 300 with Some Limitations and DLR 360 with Some Limitations |
| Dimensions (H x W x D) | 2.6" (66 mm) x 4.22" (107.3 mm) x 0.5" (12.6 mm) |
| Weight | 3.3 oz (94 g) including battery |

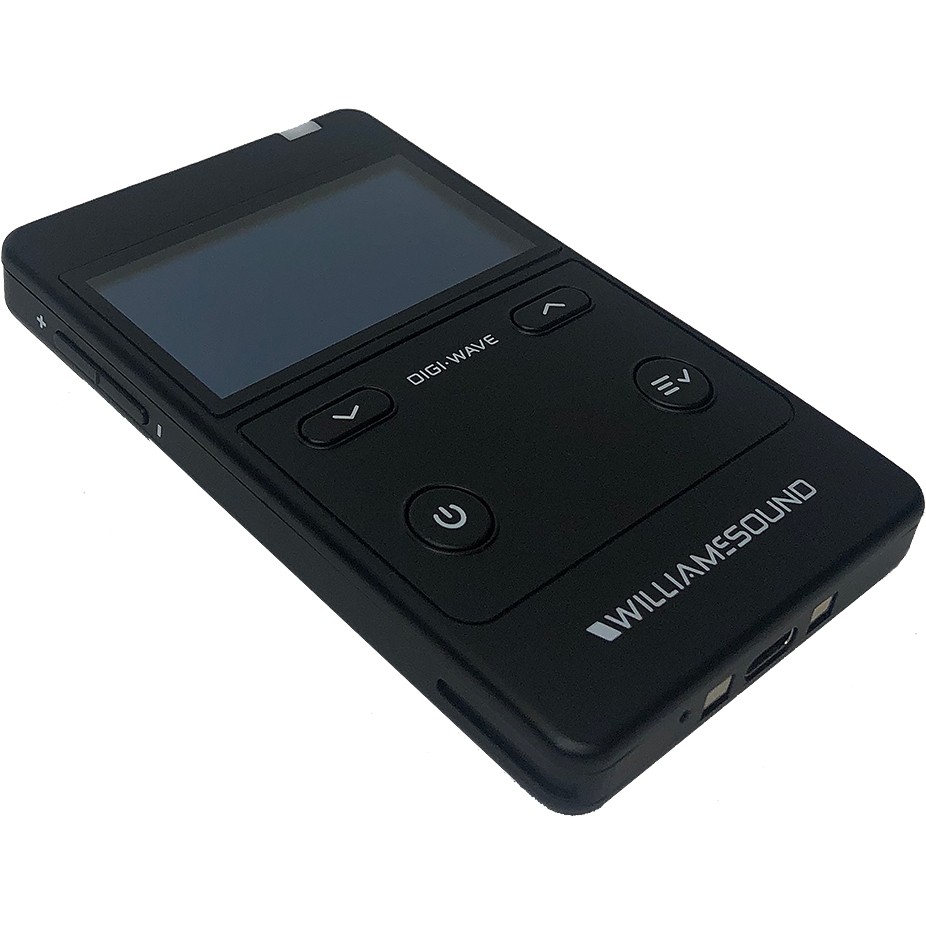

| DLR 400 RCH | |
| Color | Black |
| Battery Type | Lithium Polymer with Smart Charge Built into Transceiver; 1800 mAH |
| Battery Life | Up to 32 hrs per Charge @ 1ch Rx |
| Power Save | Auto Sleep Mode After 5 Minutes of no RF Signal from Compatible Devices |
| Charge Time | 5 hrs. Approx. |
| Operating Frequencies | 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS |
| Audio Frequency Response (-3dB Level) | Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz |
| SNR | 73 dB (A-weighted) |
| THD | 0.1 % (Default Volume, 1kHz) |
| Headphone Output | 3.5 mm TRRS Headphone Jack; 25 mW, R32 Ω |
| Range | Up to 900 ft (274 m) (Depending Upon Environmental C) |
| Modulation | FSK |
| RF Sensitivity | -92 dBm |
| Security | 87 bit Encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for Settings |
| Indicators | OLED |
| LEDs | Bi-color, Changing Green and Red LED at Top |
| Charging Connectors | USB-C; Two contacts for use with CHG 412 |
| Compatible Units | DLT 400, DLT 300 with Some Limitations |
| Operating Tempurature Range | 14º to 113ºF (-10º to 45ºC) |
| Approvals | FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki |
| Dimensions (H x W x D) | 2.6" (66 mm) x 4.22" (107.3 mm) x 0.5" (12.6 mm) |
| Weight | 3.3 oz (94 g) including battery |
| Compatible Transmitter | DLT 300 Only |
| Temp. Range | 32° – 122°F (0° to 50°C) |
| Optional Chargers | 2-Bay CHG 102, 12-Bay CHG 1012, TFP 045 |
| Accessories | Silicone Skin, Lanyard, Wrist Strap |
| Approvals | FCC, Industry Canada, RoHS, CE, WEEE, RCM |
| Warranty | 2 Years Parts and Labor (90 Days on Accessories) |
| Dimensions (H x W x D) | 3.54" (90 mm) x 2.36" (60 mm) x 0.63" (16 mm) |
| Weight | 0.106 lbs (0.048 kg) |
| EAR 041 | |
| Style | Single, In-Ear, Isolation Earphone |
| Plug | 3.5mm Mono |
| Sensitivity | 104 dB @ 1kHz |
| Driver Size | 10 mm |
| Nominal Impedance | 16Ω |
| Freq. Response | 20 - 20kHz |
| Max Power Input | 5 mW |
| Replacement Silicone Tip | EAR 043 (one pair) |
| Cord Length | 39" (990.6 mm) |
