| DLT 300 Transceivers |
| Color |
Black/Silver (Front/Back) |
| Case Material |
Black ABS Plastic |
| Battery Type |
Lithium Polymer with Smart Charge Built into Transceiver; 2000 mAH |
| Battery Life |
Up to 14 hrs Talk Time Per Charge Current Consumption Range: 39 mA @ Idle to 94 mA w/1 Ch Tx and 3 Ch Rx |
| Power Save |
Auto Sleep Mode After 5 Minutes of No RF Signal from Compatible Devices |
| Charge Time |
5 hrs. TFP 045 with Cable and International Adapters |
| Optional Chargers |
2-Bay CHG 102, 12-Bay CHG 1012, TFP 045 |
| Simultaneous Channels/Groups/Talkers |
Up to 15 Simultaneous Channels (0-14) (Interpretation Mode) Up to 4 Simultaneous Groups (2 Way Mode) Up to 4 Simultaneous Talkers Per Group (2-Way Mode) Up to 6 Simultaneous Talkers Per Group (2-Way Intercom Mode) |
| Operating Frequencies |
2.4 GHz (ISM Band); 2402 – 2476 MHz FHSS |
| Audio Frequency Response (-3dB Knee Level) |
Conference Mode, Interpreter Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz |
| SNR |
74 dB (A-Weighted, Maximum Output) |
| THD |
0.33 % |
| Microphone Input |
Internal Microphone (Disabled When MIC Jack Engaged) and 3.5 mm Phone Jack (Tip/Sleeve) with Electret Microphone Bias, Adjustable Gain with 63dB Range. |
| Headphone Output |
3.5 mm Phone Jack; 33 Ω Load |
| Audio Output |
Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal Speaker (Disabled When Haedphone Jack in Use) |
| Range |
Up to 200 ft Outdoors and 300 ft Indoors (Depending Upon Environmental Conditions) |
| Modulation |
FSK |
| RF Output |
14 dBm Typical |
| Security |
87 Bit Encryption, Secure Key Code, Setup Lock (SLOC) |
| Controls |
Front Panel Push Buttons for Volume Up/Down, Group Select, Menu Access and Selection, Timer, Time, MIC On/Off, Power On/Off, Tone Control SLOC Access and Secure Key Access. System Reset Button (Rear Panel) |
| Outputs |
3.5 mm Stereo/Mono Headphone Jack; 30 Pin Charging Jack with Audio Out to Base Stations |
| Side Tone |
-12 dB Below Volume, Tone Variation [ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB] |
| Indicators |
LCD (Group, Channel, Volume Level, Battery Status, Mode, Number of People with Talk Button On) |
| LED’s |
(Charge Status) Red LED Around Talk Button When Enabled. |
| Docking Connector |
30-Pin Connector for Charging and Audio In/Out |
| Compatible Receiver |
DLR 360 Only |
| Dimensions (H x W x D) |
2.43" (61.8 mm) x 4.07" (103.3 mm) x 0.44" (11.3 mm) |
| Weight |
0.181 lbs (0.082 kg) |

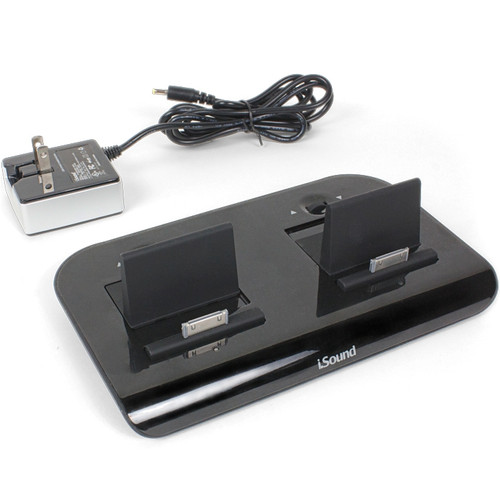

| CHG 102 Two-Bay Charger |
| Compatible Units |
Transceivers: DLT 300, DLT 100 2.0, DLT 100
Receivers: DLR 360, DLR 60 2.0 and DLR 60 |
| Power Input |
110-240V AC @ 50-60 Hz |
| Power Output |
5 Volts DC @ 1.2 amps |
| Cable Length |
6' (1.8 Meters) |
| Warranty |
90 Days |

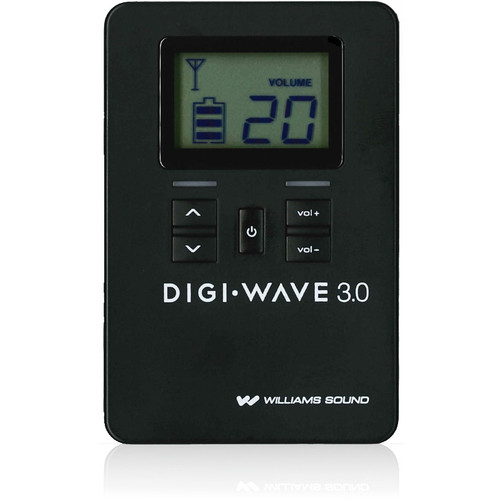

| DLR 360 Receivers |
| Frequency Band |
2.4 GHz (ISM Band) |
| Modulation |
FSK |
| Multi Channel |
Up to 15 Simultaneous Channels (One Way Mode) |
| Case Material |
Black ABS Plastic |
| Battery Type |
2 x AAA Alkaline or NiMH |
| Battery Life |
Alkaline Disposable (BAT 010-2): Up to 24 hrs

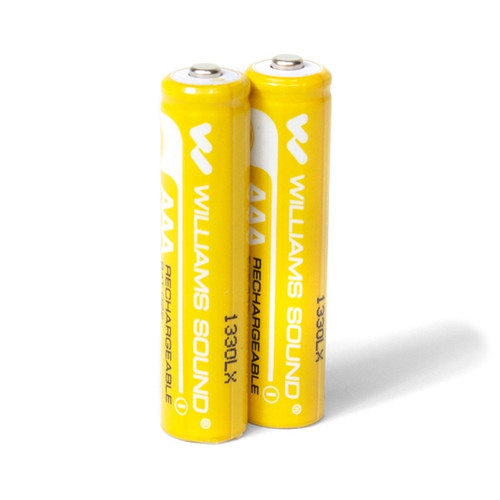

NiMH Rechargeable (BAT 022-2): Up to 18 hrs |
| Power Save |
Auto Sleep Mode After 5 Minutes of No RF Signal from Compatible Devices |
| Audio Frequency Response(-3dB knee level) |
Conference Mode: 140 – 11.5 KHz
Intercom Mode: 140 – 7.6 KHz |
| SNR |
65 dB (A-Weighted) |
| THD |
0.1% (Typical) |
| Antenna |
Internal |
| Headphone Audio Output: |
3.5 mm Stereo Jack with Mono Output for Headphones, Earphones, or Neckloop
27 mW maximum @33Ω Mono
Internal Speaker (Disabled When Headphone Jack in Use) |
| Controls |
Power, Volume +/-, Channel +/-, Setup, Battery Type |
| Display |
LCD Shows Status: Battery Level, RSSI, Group/Channel# |
| Indicators |
Red LED - Blinks When Charging
Green LED - Stays on When Charged |
| Docking Connector |
30-pin iPod Style for Charging and Audio Out |
| Compatible Transmitter |
DLT 300 Only |
| Temp. Range |
32° – 122°F (0° to 50°C) |
| Optional Chargers |
2-Bay CHG 102, 12-Bay CHG 1012, TFP 045 |
| Accessories |
Silicone Skin, Lanyard, Wrist Strap |
| Approvals |
FCC, Industry Canada, RoHS, CE, WEEE, RCM |
| Warranty |
2 Years Parts and Labor (90 Days on Accessories) |
| Dimensions (H x W x D) |
3.54" (90 mm) x 2.36" (60 mm) x 0.63" (16 mm) |
| Weight |
0.106 lbs (0.048 kg) |

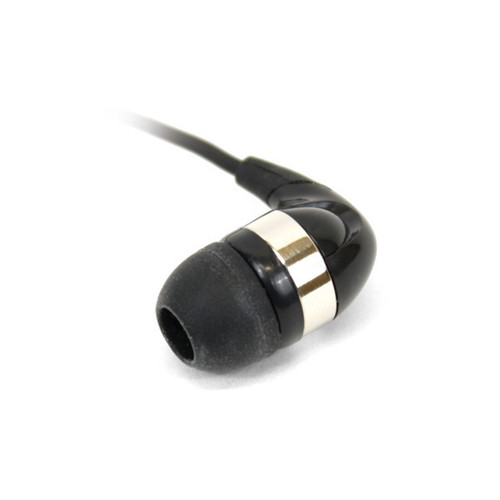

| EAR 041 |
| Style |
Single, In-Ear, Isolation Earphone |
| Plug |
3.5mm Mono |
| Sensitivity |
104 dB @ 1kHz |
| Driver Size |
10 mm |
| Nominal Impedance |
16Ω |
| Freq. Response |
20 - 20kHz |
| Max Power Input |
5 mW |
| Replacement Silicone Tip |
EAR 043 (one pair) |
| Cord Length |
39" (990.6 mm) |
| Weight |
0.0132 lbs (0.006 kg) |

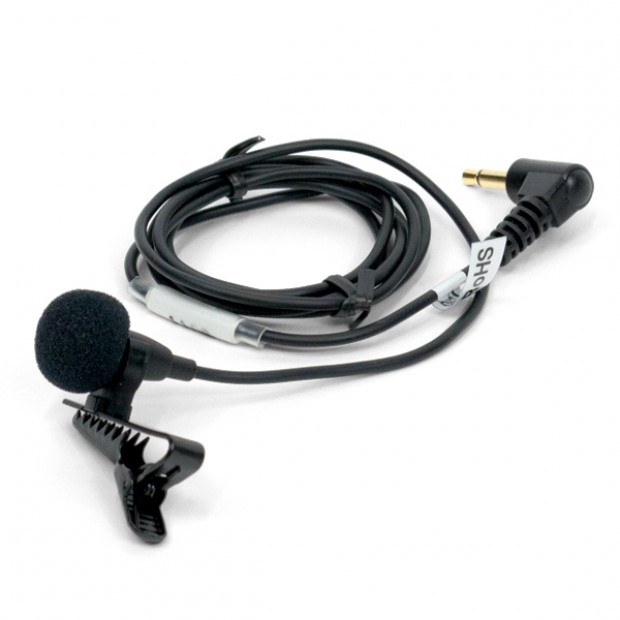

| MIC 090 |
| Color |
Black |
| Plug |
3.5mm Mono |
| Phantom Powered |
No |
| Nominal Impedance |
1500Ω @ 1kHz |
| Operating Voltage |
1.5 - 10VDC |
| Freq. Response |
20 - 18kHz |
| Pick-Up Pattern |
Omni-Direct |
| Transducer Type |
Back Electret |
| Max Input Sound Level |
110dB SPL |
| Sensitivity |
-56dB ± 3dB |
| Replacement Windscreen |
WND 090 |
| Replacement Lapel Clip |
CLP 090 |
| Cord Length |
39" (990.6 mm) |
| Weight |
0.05 lbs (0.0227 kg) |
