The Williams AV IR T3 is a two-channel infrared transmitter with integrated modulator and emitter. It delivers strong, consistent audio up to 32,000 sq ft using efficient LED tech, with PoE support, RS-232 control, and switchable frequencies.

Description

Williams AV IR T3 Infrared Transmitter

The SoundPlus® T3 continues Williams AV's legacy of audio innovation. Featuring cutting-edge LED technology, it delivers a stronger, more consistent audio signal over a wider range than previous models, ensuring comprehensive coverage and minimizing dropouts.

The new LEDs offer increased power and efficiency, providing complete coverage of up to 32,000 sq ft (2,972 sq m), overcoming background noise, reverberations, and distance from the sound source. With its expanded coverage pattern and more robust audio signal, there's no need for the additional cost of a secondary unit.

Engineered for AV professionals, the T3 offers a two-channel infrared transmitter with an integrated modulator and emitter. It operates on switchable carrier frequencies and includes optional Power-over-Ethernet (PoE) capability, allowing remote power delivery up to 100 feet, and remote RS-232 commands provide convenient control.

The T3's compact form factor allows for discreet placement, ensuring it integrates seamlessly into any room's aesthetics. It accommodates adjacent rooms without signal spillover, maintaining clear, high-quality audio within a single space. Ideal for environments requiring privacy or confidentiality, such as corporate boardrooms or spaces with sensitive information

Features

  • Coverage up to 32,000 sq. ft (2,601 m) in single-channel mode with the RX22-4 receiver
  • Two Phoenix-style line-level inputs and one 3.5 mm microphone input
  • Two audio channels each, up to four audio channels per room
  • Power-saving mode turns the unit off after no audio is present for 12 minutes

Specifications

Power Supply TFP 057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
DC Power Input 2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive
Power Indicator Green LED
Baseband Frequencies 2.3/2.8 MHz or 3.3/3.8 MHz
Microphone Gain Adjustment Rotary 10 dB range
Frequency Response 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
Signal-to-Noise Ratio 70 dB (line input)
Audio Inputs Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
Microphone Input 3.5 mm, stereo jack with signal and bias connected to tip, electret microphone compatible (6 VDC bias supply with 2.7 k ohm series resistor)
Dimensions (H x W x D) 1.4" (36 mm) x 9" (229 mm) x 3.8" (97 mm)
Weight 0.84 lbs (0.38 kg)

DOCUMENTS

In The Box

  • (1) IR T3 – Infrared Transmitter

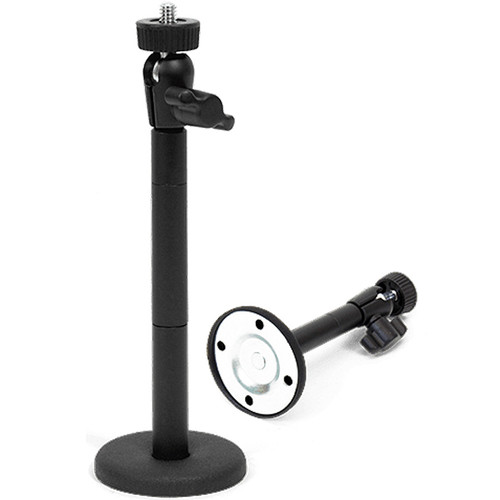

  • (1) BKT 024 – Wall/Ceiling Mounting Bracket

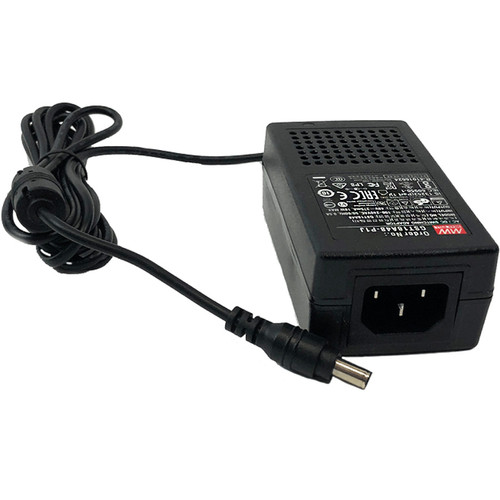

  • (1) TFP 057 – International Power Supply with Line Cord
