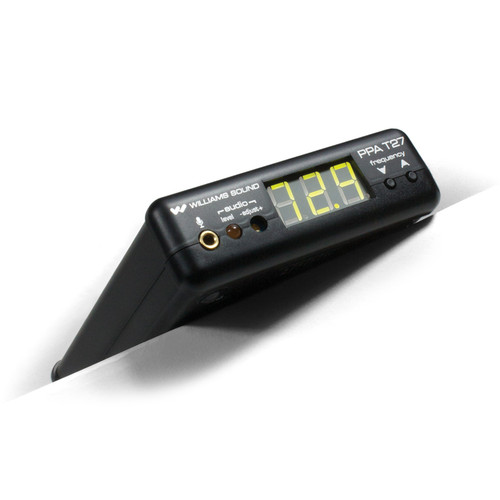

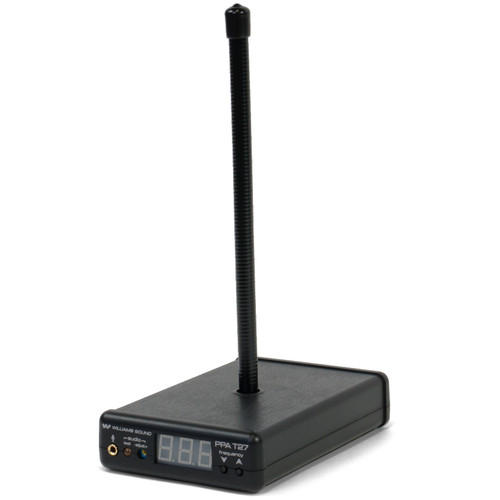

The PPA T27 transmitter broadcasts a speaker's voice, music program or audio service wirelessly up to 1000 feet to a listening audience. Audience participants can use an optional R37, R38 or any FM receiver operating on the 72-76 MHz frequency to pick up the broadcast. The speaker simply connects a microphone with a 3.5 mm plug into the unit to broadcast their voice. The unit also can connect to a sound system through a line-level (RCA) jack to broadcast music or other audio services. Meets Americans with Disabilities Act (ADA) accessibility requirements and is covered by a Lifetime PLUS Limited Warranty.
Note: The PPA T27 transmitter is approved by the FCC for operation in U.S. markets. The transmitter cannot be used in all countries. Check with your government's radio regulations for 72 - 76 MHz operation.
| Color | Black |
|---|---|
| Power (U.S./Canada) | 105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC |
| Operating Frequencies | 72-76 MHz |
| Frequency Selector | External switches, 17 channels (lockable) |
| RF Field Strength | Does not exceed 80mV/m @ 3m |
| Nominal Range | Upto 500ft w/standard ANT 021 "rubber duckie" antenna up to 1000ft w/optional ANT 005 coaxial antenna |
| Modulation | FM, 75 kHz deviation (wide–band) max |
| Stability | ± .005% over 0-50°C |
| Pre-Emphasis | 75 µS |
| Frequency Response | 85Hz - 14kHz ±3dB |
| Distortion | 1% Max. THD |
| Signal to Noise Ratio | 65 dB with R35 Receiver |
| Microphone Input | 3.5 mm mini phone jack, supplies +DC for electret mics |
| Mic Input Level | 1–10 mV, nominal |
| Line-Level Input | RCA Jack, Hi Z, unbal |
| Line Input Level | .1–1 Vrms, nominal |
| Input Attenuator | Pot, screw driver-adjustable |
| Dimensions (H x W x D) | 1.3" (33 mm) x 4.1" (104.1 mm) x 6.1" (154.9 mm) |
| Weight | 0.49 lbs (221 g) |
