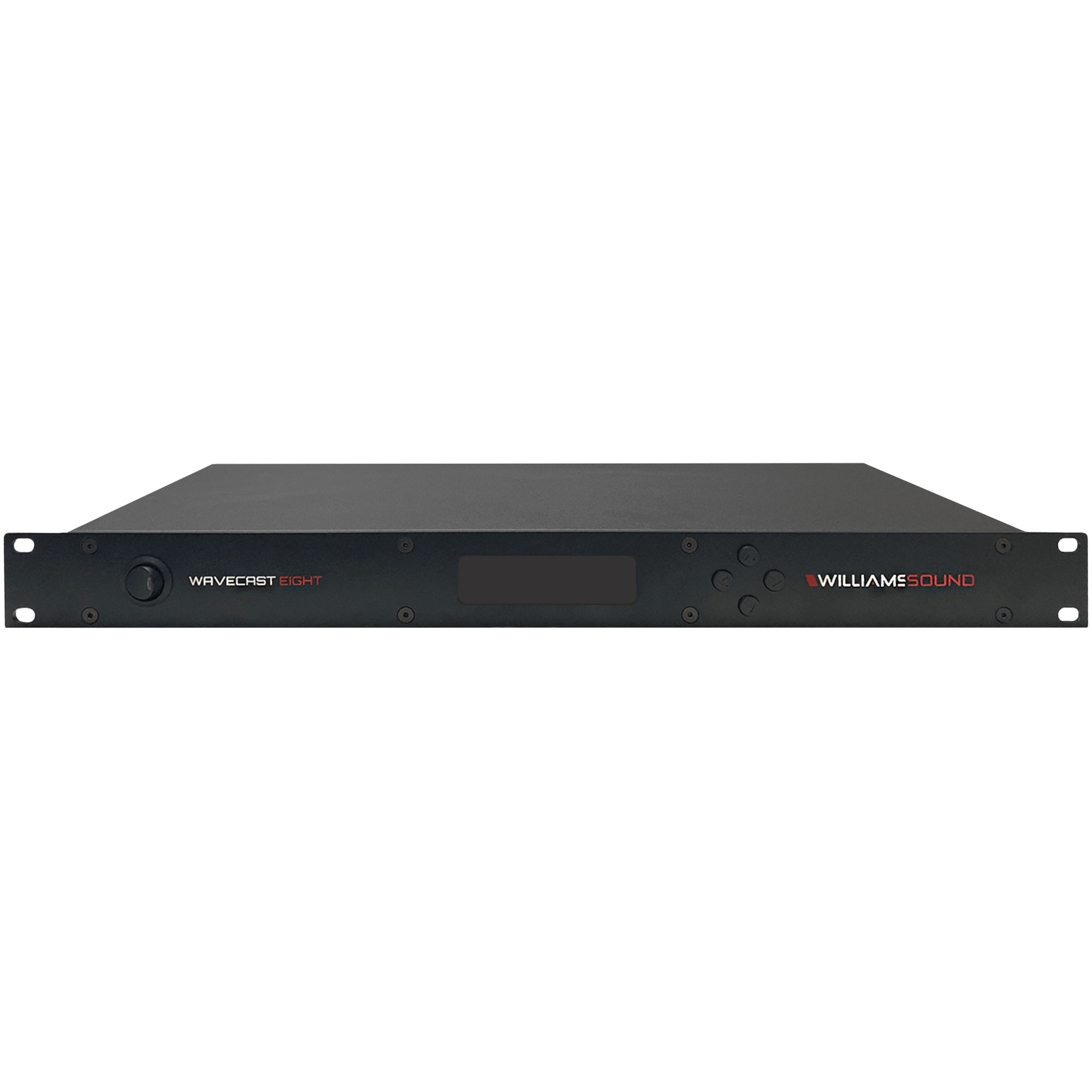

Williams AV WF T8 WaveCAST EIGHT Wi-Fi Assistive Listening Platform

Rear of Williams AV WF T8 WaveCAST EIGHT

By Williams AV

Williams AV WF T8 WaveCAST EIGHT Wi-Fi Assistive Listening Platform

Write a Review

Part #:

WF T8

Model #:

WF T8

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Williams Sound WaveCAST EIGHT is the new, multi-channel Wi-Fi assistive listening platform designed for larger assistive listening applications or for streaming audio in a bar, gym, or other devices where multiple sources of audio exist.

Description

Williams AV WF T8 WaveCAST EIGHT Wi-Fi Assistive Listening Platform

The WaveCAST family of Wi-Fi products is designed for pro-audio applications where high-quality sound is required for real-time streaming of audio to smartphones or handheld receivers. WaveCAST is the industry’s only audio over Wi-Fi platform with DSP-based system architecture, allowing system optimization to achieve the highest quality experience for the particular audio stream. Featuring ultra-low latency, hearing assistance can be optimized for hearing loss, music can be optimized for high-fidelity playback, and voice can be set for maximum speech intelligibility.

The WaveCAST EIGHT (WF T8) offers a multichannel platform designed for larger assistive listening applications or streaming audio. Up to 8 channels are available on a single WaveCAST EIGHT, and up to 8 WaveCAST EIGHTs can be used on one network.

The new WaveCAST app provides an easy-to-use, intuitive user interface and is available on iOS or Android. Listeners easily select channel and volume level once their personal device is connected to the Wi-Fi network.

Features

Audio seamlessly streams over Wi-Fi to iOS and Android personal devices or Williams AV handheld receivers using the free WaveCAST app
DSP-based system for maximum intelligibility
Supports multicast network configurations
Standard network version. A Dante-enabled version is also available for Dante audio network integration

Specifications

Frequency Response	31 – 16000 Hz, ±3 dB ("Music" Audio Preset)
Signal-to-Noise Ratio	Greater than or equal to 69 dB (streaming to iPhone)
Total Harmonic Distortion	Less than 0.25% @ 1 kHz
Common Mode Rejection	Greater than 52 dB @ 1 kHz
Ethernet	RJ-45 on the back of the unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant
Audio Inputs	8 Phoenix-style Line Level Analog Audio, Balanced or Unbalanced Line Level
Audio Input Gain Adjust	In menu, adjustable to +6 to -60 dB, in 1 dB steps
Audio Processor Functions	DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control
Power Switch	Rocker; backlit red LED indicates power on
Power Supply	Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W 2.5 mm ID center positive barrel connector
Temperature Range	Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)
Approvals	FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme
Warranty	2-year warranty against component failure and manufacturing defects. See the Full Warranty statement on the website for details
Rack Mount	Standard 19" Rack, one EIA rack space high, one rack space wide
Color	Black
Dimensions (H x W x D)	1.72" (43.69 mm) x 17" (431.8 mm) x 7.63" (193.7 mm)
Weight	5 lbs (2.27 kg)
