Williams Sound WIR SYS 90 ADV SoundPlus 2-Channel Infrared System (Discontinued)

By Williams AV

Williams Sound WIR SYS 90 ADV SoundPlus 2-Channel Infrared System (Discontinued)

Name: Williams Sound WIR SYS 90 ADV SoundPlus 2-Channel Infrared System (Discontinued)
Brand: Williams AV
SKU: WILLIAMS-WIR SYS 90 ADV
Price: 2984 USD
Availability: OutOfStock

Write a Review

Part #:

WIR SYS 90 ADV

Model #:

WIR SYS 90 ADV

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Williams Sound WIR SYS 90 ADV system comes the WIR TX90 DC 2-channel IR transmitter that combines modulator and emitter technology into a single operating unit, and can cover up to 28,000 sq ft in single-channel operation.

Description

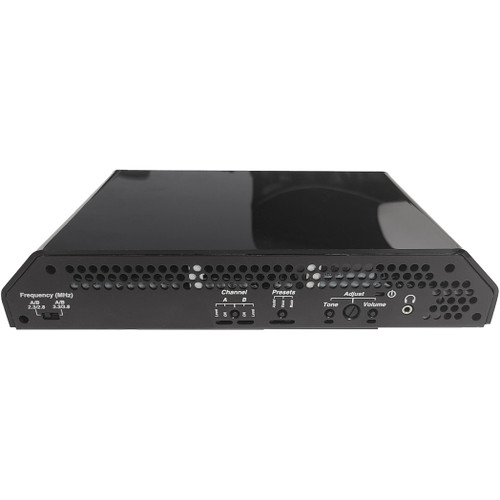

The WIR TX90 DC two channel IR transmitter combines modulator and emitter technology into a single operating unit, which reduces operating cost and eliminates precious rack space. The TX90 transmitter produces a wide-angle infrared signal that concentrates the IR energy efficiently in the listening area. Operating on the 2.3-3.8 MHz bandwidth, the TX90 is less susceptible to radio and lighting interference. Each TX90 transmitter can cover up to 28,000 sq ft (2,600 sq m) in single-channel operation. The coverage area can be easily increased by connecting additional TX9 emitters. A wall/ceiling omnidirectional mount is included, and stand kits are available for portable operation.

Features

Modulator/emitter combined into single operating unit
Resistant to high-efficiency lighting interference

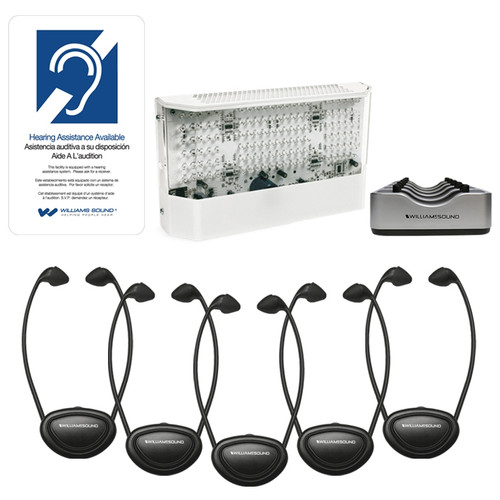

Transmitter also available in white (WIR SYS 90 ADV WHT)
Meets ADAAG Guidelines
Made in the USA

Specifications

Color	Black with white legends, black acrylic lens
Power Supply	Wall Transformer, 24 VAC, 50-60 Hz, 35 VA, 3-pin MOLEX Connector North America: TFP 010, UL/CSA
Power Cable	NEC Class 2 wiring, two-conductor, 18 ga., 200’ (61m) max. length
Modulation	FM Wideband, +50kHz deviation max., 50uS pre-emphasis
Carrier Frequency	Channel A: Selectable, 2.3/2.8 MHz Channel B: Selectable, 3.3/3.8 MHz
Emitter IR Power	3.5 watts
Coverage Area	Up to 28,000 ft 2 (2,600 m2) in single-channel mode when using the RX22-4 Receiver
Signal-to-Noise Ratio	>75 dB, +3dB
Frequency Response	80 to 15,000 Hz, electrical response
Total Harmonic Distortion	Less than .2%, electrical response at 1kHz
Compression	Music preset 1:1, Voice preset 1.5:1, Hearing Assist preset 2:1
Auto Carrier Shut-Off	20 minute timer shuts off carrier when no audio is present
Power Indicator	Red LED
Audio Volume Level Controls	CHA and CHB Input Level, press to select, 28 dB adjustable range
Audio Indicators	CHA and CHB Audio Level, yellow LED, flash
Carrier LEDs	2 green LED carrier "on" indicators
Phones Output	3.5mm TRS headphone jack. CH A tip, CH B ring on jack, 32 ohm headphone (min)
Application Preset	Music, Voice, Hearing Assist. Frequency response; Music: Flat; Voice: Mid-range boost
Tone Control	Press to select, 21 dB adjustable range (1 kHz between low boost/hi-cut and lowcut/hi boost)
Power Input	3-Pin Molex, 24 VAC, 50-60 Hz, 35 VA
Audio Input Connector	CHA and CHB, 3 wire Phoenix
Input Level	Balanced or unbalanced, 316 mVRMS (-10dBV) nominal, 5.7k input impedance
Baseband Output	BNC, 50 1/2, for use with TX9 only
Baseband Cable	RG 58 Coax, BNC connectors, maximum 1000’ (300m) length
Operating Requirements	0-50º C (+32°F to 122°F) ambient temperature, non-condensing, non-corrosive atmosphere
Mounting Kits	Wall or Ceiling Mount: BKT 024 Omnidirectional mount; Optional: Tripod Stands: SS-11 or SS-6
Warranty	5 years on transmitter, 90 days on accessories
Approvals	CE, FCC, RoHS, WEEE
Compatible Receivers	WIR RX22-4 Four-Channel Receiver WIR RX18 Two-Channel Receiver
Dimensions (H x W x D)	6.25" (159 mm) x 11.25" (286 mm) x 2.125" (54 mm)
Weight	1.8 lbs (0.8 kg)

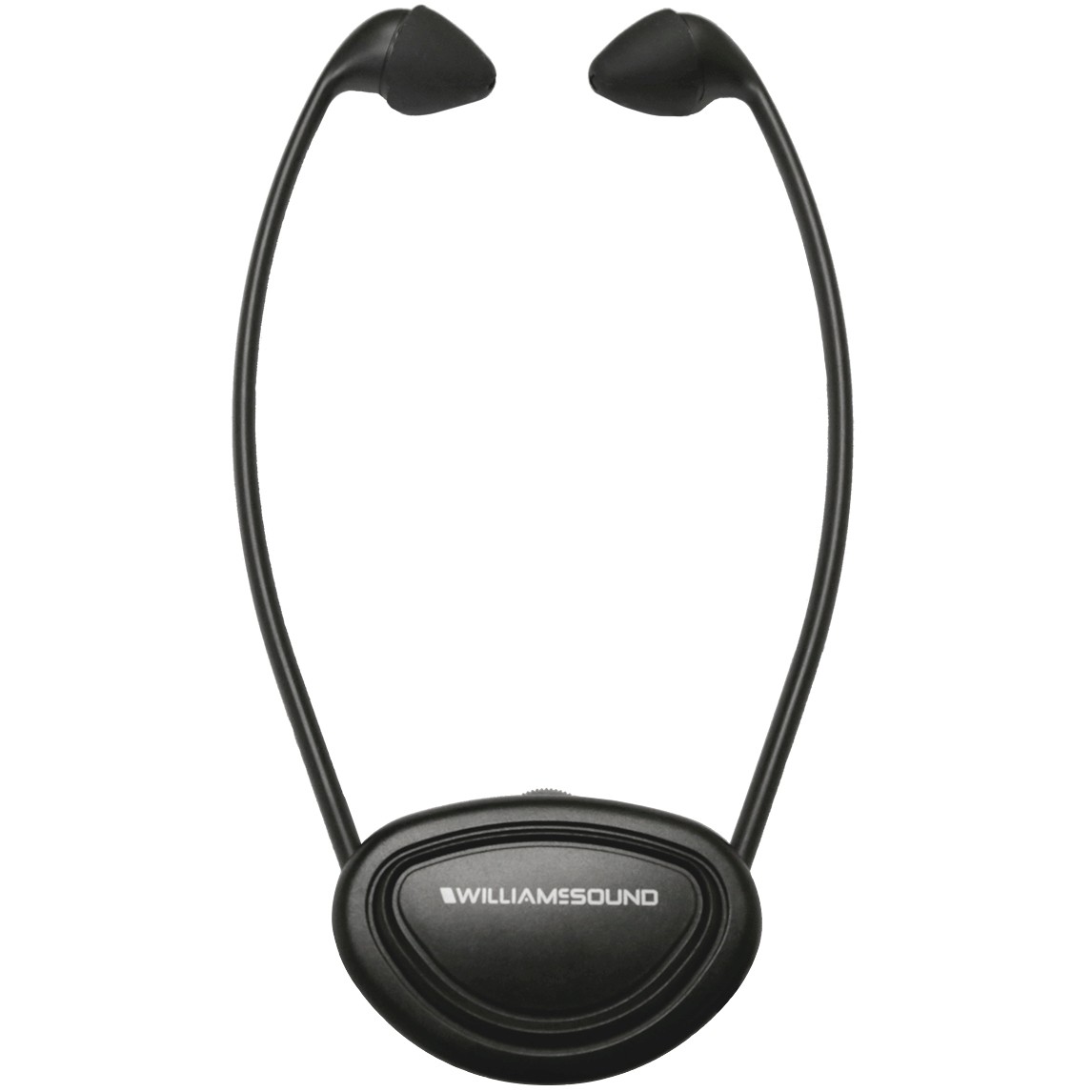

Material and Color	IR Transparent polycarbonate, black
Battery Type, Life	LiPo, 8 hours
Range	Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter
Operating Frequency	2.3 MHz or 2.8 MHz or stereo
Frequency Response	100 Hz to 12 kHz, ± 3 dB
Signal to Noise Ratio	60 dB at 10 m
Controls	Volume control thumbwheel; 3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power
Acoustic Output	120 dB MAX SSPL90 with 2 cc coupler
Compatibility	Compatible with 2.3 MHz and 2.8 MHz IR transmitters
Headphone Jack	3.5 mm stereo
Ear Pads	EAR 089
Weight	1.6 oz
Color	Black metal and plastic

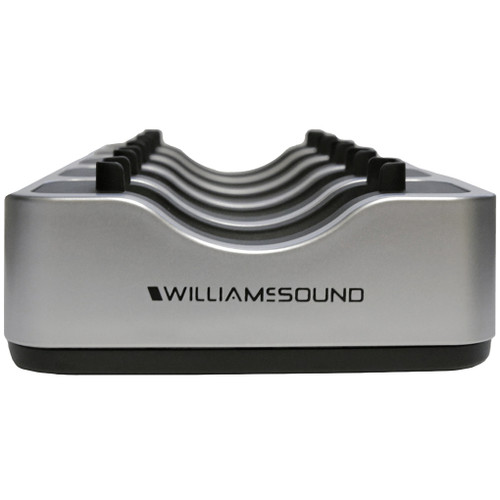

Power Supply Input	120 VAC
Power Supply	100-240V / 12VDC TFP 043
Unit Capacity	5 Units
Indicators	Individual Charging Indicators: Red LEDs
Dimensions (H x W x D)	1.5" (38.1 mm) x 6.25" (158.7 mm) x 12" (304.8 mm)
Weight	0.85 lbs (0.39 kg)
