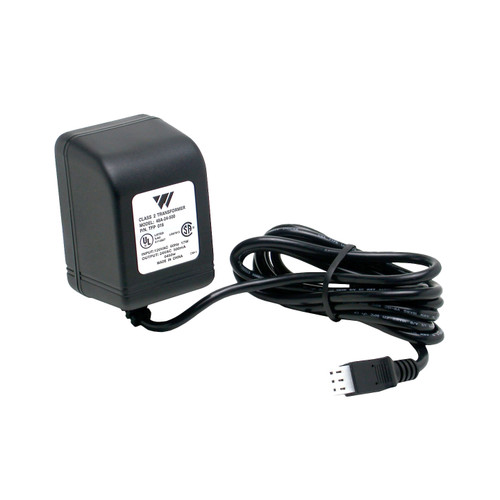

| Power Supply |
TFP 016, UL/CSA |
| Modulation |
FM Wideband, +50 kHz deviation, 50 uS pre-emphasis |
| Carrier Frequency |
Channel A: Selectable, 2.3/2.8/3.3/3.8 MHz, Channel B: Selectable, 2.3/2.8/3.3/3.8 MHz |
| Signal-to-Noise Ratio |
More than 60dB |
| Frequency Response |
30 to 16,000 Hz, +1 dB, -3 dB, electrical response |
| Total Harmonic Distortion |
Less than 2%, electrical response |
| Audio Processing |
Compression (slope) adjustable from 1:1 to 2:1, Switchable compression gain: Moderate: 16dB Max: 33dB |
| Auto Carrier Shut-Off |
15-minute timer shuts off carrier when no audio is present (can be disabled) |
| Power Switch |
Two-position push button, ON/OFF |
| Power Indicator |
Green LED |
| Audio Level Controls |
CHA and CHB Input Level, rotary knobs |
| Audio Indicators |
CHA and CHB Audio Level, 10-segment LED's |
| Carrier LEDs |
4 green LED carrier "on" indicators per channel (indicates frequency, malfunctions) |
| Compress Control |
1:1 to 2:1 |
| Input Mix LED |
Indicates inputs A and B audio are mixed and transmitted by CHA and CHB off |
| Stereo LED |
Indicates stereo mode |
| Phones Switch |
Selects CH1 or CH2 for phones when not in stereo mode |
| Phones Output |
1/4" TRS headphone jack, Accepts stereo, mono and any impedance phones |
| Infrared Test LED |
IR LED for receiver testing, monitoring and audio signal testing |

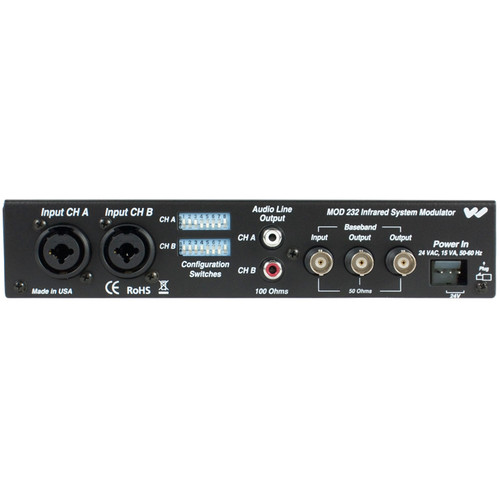

| Power Input |
3-Pin Molex, 24 VAC, 50-60 Hz, 15 VA |
| Audio Input Jack |
CHA and CHB combination XLR/TRS jack |

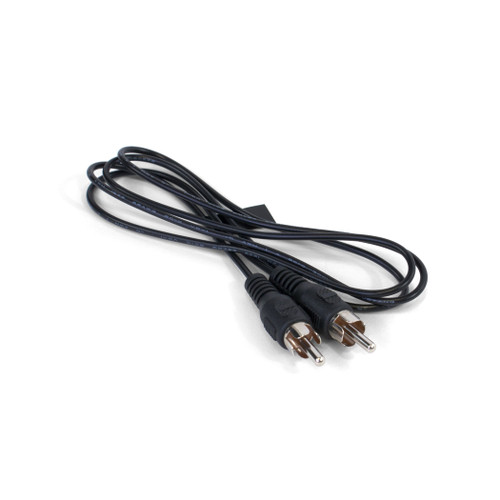

| Audio Line Output Jacks |
RCA Jack, CHA and CHB, 500 mV, unbalanced, 100 ½ source impedance |
| Configuration Switches |
CHA and CHB 8-position DIP switch, selects Mic/Line input, compressor gain, simplexpower |
| Baseband Input Jack |
BNC, allows mixing with additional MOD 232 Modulator (4CH operation), 100mV, 50½ input impedance |
| Baseband Output Jack |
Two BNC jacks carry baseband signal, 100 mV/channel, 50 Ω source impedance |
| Line Level |
Balanced or unbalanced, 21 mV min. to 10V max., 212 mV nominal, 100 kΩ |
| Color |
Black epoxy paint with white legends |
| Dimensions (H x W x D) |
1.7" (44 mm) x 8.5" (215 mm) x 8.2" (208 mm) |
| Weight |
3.1 lbs (1.5 kg) |

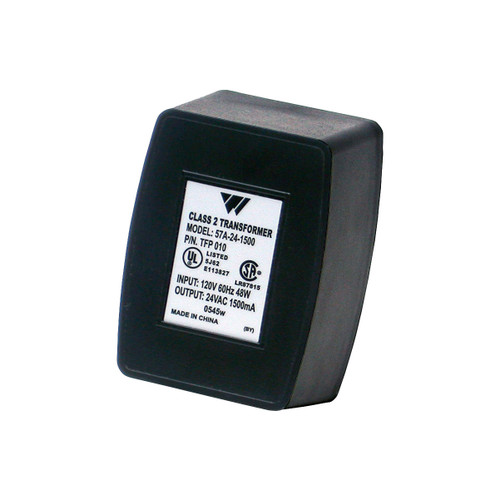

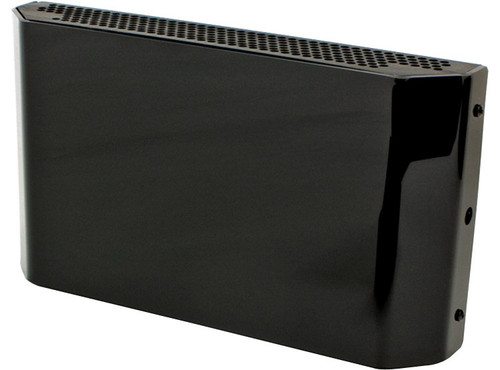

| Power Supply |
TFP 010, UL/CSA |

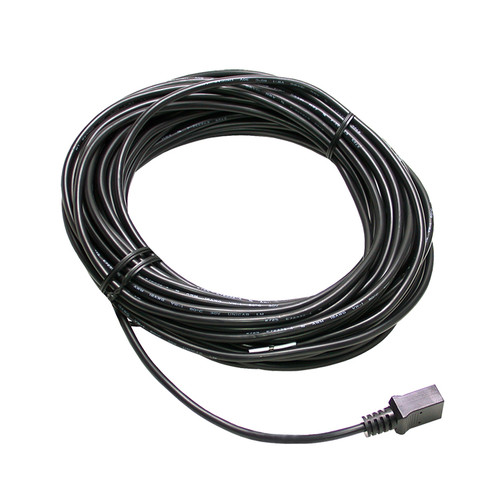

| Power Cable |
NEC Class 2 wiring, two-conductor, 18 ga, 200' (61m) max. length |
| Indicators |
Green LED power indicator, red LED baseband indicator |
| Carrier Frequency |
50 kHz to 8 MHz |
| Emitter IR Power |
3.5 watts |
| Baseband Input |
BNC, 100 mV per carrier, 50 Ω, for use with WIR TX9 or MOD 232 only |
| Baseband Output |
BNC, 50 Ω, for use with TX9 only |

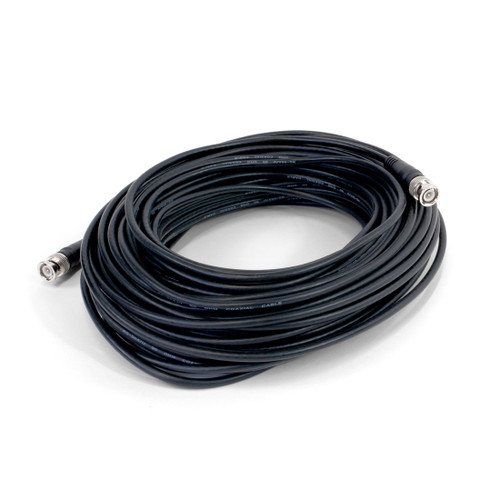

| Baseband Cable |
RG 58 Coax, BNC connectors, maximum 1000' (300m) length |
| Operating Requirements |
0-50º C ambient temperature, non-condensing, non-corrosive atmosphere |

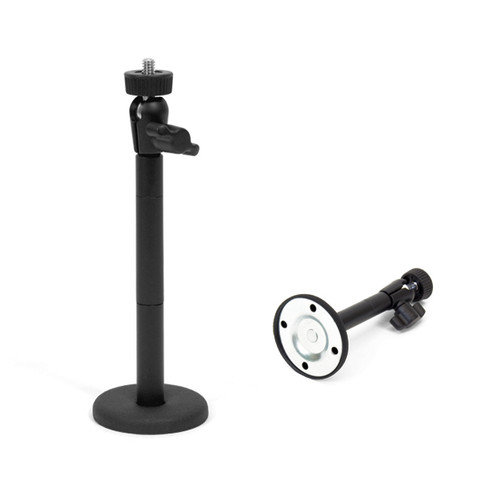

| Mounting Kits |
Wall or Ceiling Mount: BKT 024 Omnidirectional mount, Mic Stand Kit: SS-11 or SS-6 |
| Color |
Black with white legends, red acrylic lens |
| Dimensions (H x W x D) |
6.25" (159 mm) x 11.25" (286 mm) x 2.125" (54 mm) |
| Weight |
1.9 lbs (0.9 kg) |
