Winery Sound System with Multi-Zone Background / Foreground Music for up to 8,000 SF
This multi-zone commercial background music and paging sound system is designed for background or foreground music and paging in up to four independent zones totaling 8,000 sq. ft. Perfect for a winery, brewery, orchard or cider house, the Pure Resonance Audio RZMA120BT multi-zone Bluetooth mixer has several audio and microphone inputs enabling the user to choose different audio sources and volumes for different areas as well as paging to any combination of zones such as the vineyard restaurant, wine tasting rooms, wine bar, outdoor patios and courtyards. Attach our PMZ16 remote paging microphone control station to page each of your zones independently or all zones simultaneously. The PMZ16 also gives you the capacity to create groups of zones, allowing you to communicate with individual zones, group zones, or all zones with the push of a button. The maximum communication distance of the microphone is 500 ft.
Below is an example of how this custom multi-zone sound system can be set up (but can be adjusted to meet your specific needs):
| Zone 1: |
Wine/Bar Tasting Area
(1) QSC AcousticDesign Series AD-P.SAT Pendant Mount 4 Satellite Speaker System with 1 Subwoofer
|
| Zone 2: |
Vineyard Restaurant
(1) QSC AcousticDesign Series AD-P.SAT Pendant Mount 4 Satellite Speaker System with 1 Subwoofer
|
| Zone 3: |
Event Area
(1) QSC AcousticDesign Series AD-P.SAT Pendant Mount 4 Satellite Speaker System with 1 Subwoofer
|
| Zone 4: |
Outdoor Area
(4) QSC AD-S6T AcousticDesign 6" 2-Way Wall Mount Loudspeakers
|
The QSC AcousticDesign Series offers unprecedented acoustic performance from a small form factor to enhance the look of any installation. Backed by the QSC legacy of quality and support, this pendant speaker system supports retail, restaurant, hospitality and other commercial spaces. Even at low volume levels, the AcousticDesign Series SUB/SAT loudspeakers provide exceptional warmth and crystal-clear highs for remarkable acoustic ambiance and offers a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount, perfect for the wine tasting rooms, wine bar, vineyard restaurant and event areas.

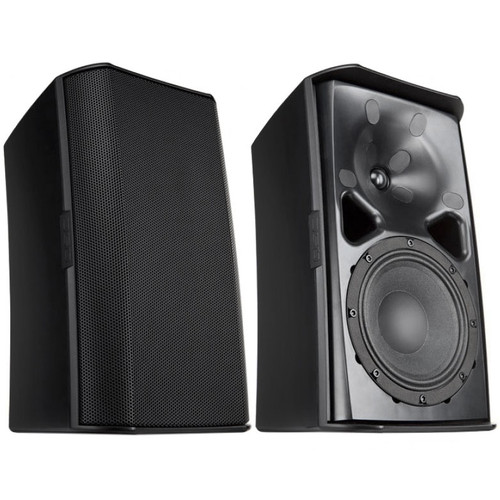

The QSC AD-S6T is an AcousticDesign 6" 2-way surface mount weather resistance loudspeaker. The AD-S6T has DMT (Directivity Matched Transition) that ensures smooth, uniform frequency response over a 105° axisymmetric (conical) coverage area. The AD-S6T has an X-Mount system that enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time. The AD-S6T's lightweight ABS enclosure offers long-term durability and lasting good looks, ideal for outdoor patios and courtyards.

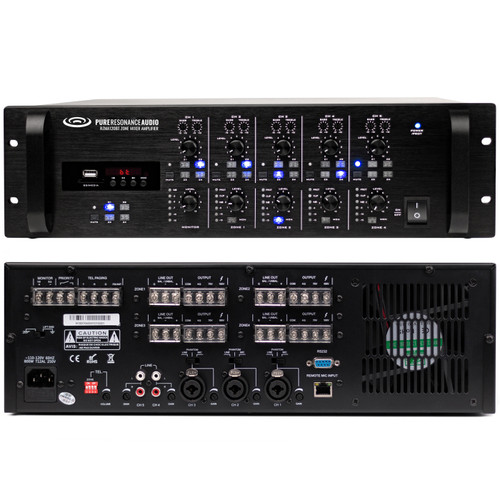

The Pure Resonance Audio RZMA120BT 4 zone commercial mixer amplifier is designed with 4 ohms, 70 Volt and 100 Volt terminals and 4 x 120W power output. It is a rack mount audio matrix system multi-room solution with MP3, tuner and Bluetooth. Each of the 4 inputs can easily be designated to a different zone, allowing this multi-source mixer-amplifier to provide audio to 4 different zones. Each input is also supplied with separate bass, treble and volume control for precise sound in each individual zone. Background music, paging, public address, the RZMA120BT has it all covered in any 70V commercial multi-zone audio system. The RZMA120BT is simple to operate without complicated programming. It is equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You can also mix 70v and 8 ohms between zones with high impedance and low impedance supported with every zone. Additionally, the RZMA120BT lets you easily record your own message through the mixer-amplifier and play it back through your system via USB or SD card. The RZMA120BT also allows you to conveniently play your own music through the mixer-amplifier via Bluetooth connection. The ease of this system saves both time and energy.

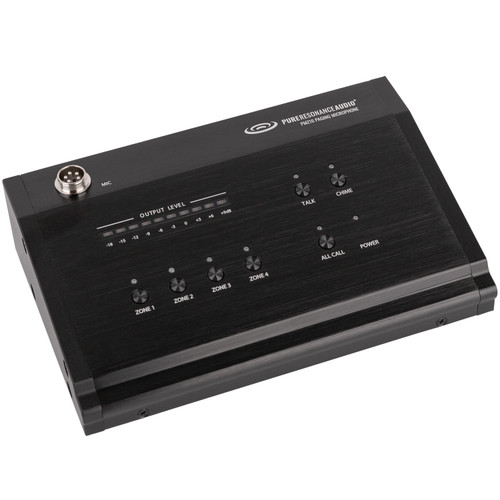

The Pure Resonance Audio PMZ16 is a remote paging microphone with 4 zone capacity design for use with the RZMA120BT mixer amplifier only. Linked by RJ45 port through shielded CAT5 cable, up to 4 microphones can be cascaded together for one amplifier. The microphone with zone control has a built-in two and four tone chime selector and is powered by the amplifier at 24V DC. The zone control station allows you to page each of your zones independently or all zones simultaneously. Then PMZ16 also gives you the capacity to create groups of zones, allowing you to communicate with individual zones, group zones or all zones with the push of a button. The maximum communication distance of the microphone is 500'. The PMZ16 features four zone selector buttons, an all call button, talk, and chime buttons, as well as a 10 segment level meter to display the output level. It also includes a built-in microphone, chime, and master volume control. Volume gain can be adjusted by the volume control on the rear panel. When the call confirmation button is turned off, the call confirmation indicator will be off, and there will be no call signal output. It has online function and an online interface for LINK IN LINK OUT, as well as a built-in independent switching power supply.
Ideal for a variety of installations, the Tascam CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is also possible. The CD-400U has been designed for full-proof and automatic operation with the inclusion of a "panel lock" function which disables the panel buttons, and an automatic playback function which starts playback upon power up.
The Middle Atlantic PDS-615R sequencing 15 amp power distribution unit provides 6-step sequencing to 6 rear outlets. Sequencing intervals are facilitated via front panel controls, while all sequencing activity is monitored by a series of LED indicators also found on the front panel. Additionally, a remote up/down sequencing connection block is located on the rear panel, which facilitates daisy-chaining and remote control. An illuminated combination power switch/circuit breaker is located on the front panel.
