Wireless Classroom Sound System with Ceiling Speaker, AA35 Atlas Sound Mixer Amplifier and Sennheiser Wireless Microphone

The SD Speaker employs (4 smaller 6.5”) very fast transient response aluminum-woofer drivers that are very powerful and stable. Working in unison these drivers produce clean powerful dynamic sound. When designing the SD the goal was to have the single most import feature at the forefront, good transient response ("dynamic contrast"). A transient is a sound of short duration, and good transient response can only be achieved if the speaker can deliver its output quickly and cleanly without smearing the original sound, and be completely soundless immediately after. Transients contain the essentials of sound reproduction they provide the sharp pop from a snare drum, the cutting edge of digital sound, the dynamics of the human voice. Larger 2-way cabinet loudspeaker systems offer relatively slow transient response, and the small high-frequency horn tends to beam a narrow, blaring sound at the listener—end result, muddy sound. By replacing larger speakers with four 6 or 8" drivers we increased the driver surface area while creating more punch and a tight, more focused low-end.

The AA35 is a three input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone input and two stereo line inputs, the AA35 will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 25V, 70.7V, and 8Ω outputs are provided.

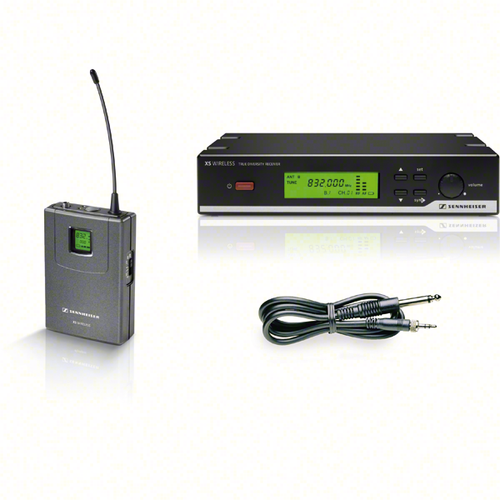

This system includes your choice of a Sennheiser Wireless System. Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues, conference rooms or houses of worship. The all-metal True Diversity receiver offers intuitive scan and sync functions that ensure trouble-free operation with your choice of Handheld, Lavalier, or Head-worn Microphones.

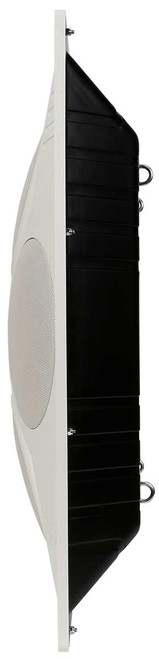

Pure Resonance® Audio SD4 SuperDispersion® Ceiling Speaker

• SuperDispersion® 360 x 180 Omni Directional Coverage .
• Engineered for voice, paging and music applications.
• Infinite-baffle in-ceiling speaker drops into standard ceiling tile openings.
• Powerful – 160 Watts at 8 Ohms, 64 Watts at 70 Volts.
• 4 - 6.5” High compliance aluminum woofers with ported bass response and high frequency dome tweeters.
• Uniquely designed fire retardant ABS housing may be painted to match any décor.

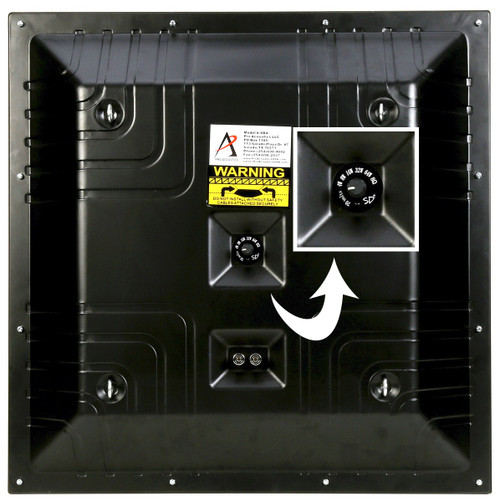

• Impedance: 8 ohms nominal with built-in 70 Volts (4, 8, 16, 32, 64 watt taps), easily adjustable by rotating switch.
• Metal Backbox that is acoustically engineered and sealed for maximum sonic performance.
• Safety cable kit included.

Atlas Sound 35 Watt Mixer Amplifier

• 1 Mic In w/Phantom Power
• 2 Stereo Line Inputs
• 35 Watts of True Output Power
• Dual Line Outputs
• Pre Out/ Power In Patch
• Remote and VOX Activated Mute
• Route Any Source Combination or Entire Mix Bus to Zone 2 (MOH Out)
• Special Low Cut Filter is 6dBu /octave at 400Hz

• (1) Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Array
• (1) Atlas Sound 35 Watt Mixer Amplifier
• Your Choice of (1) Sennheiser Wireless System

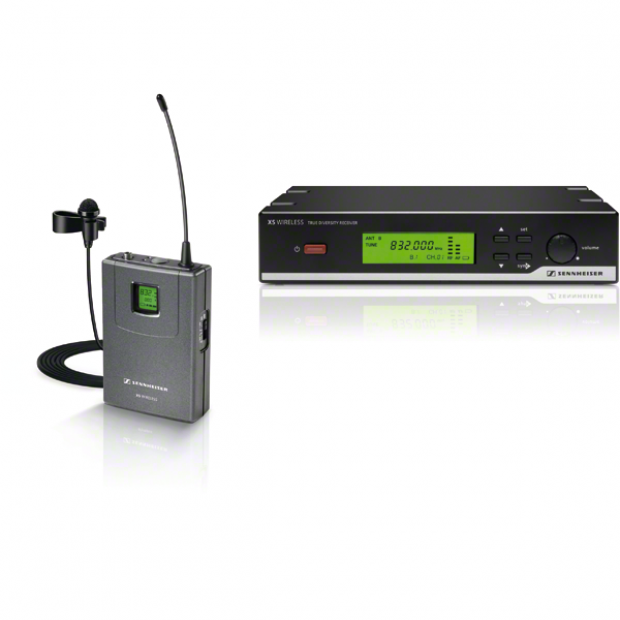

• Sennheiser XSW 12 Wireless Presentation Set

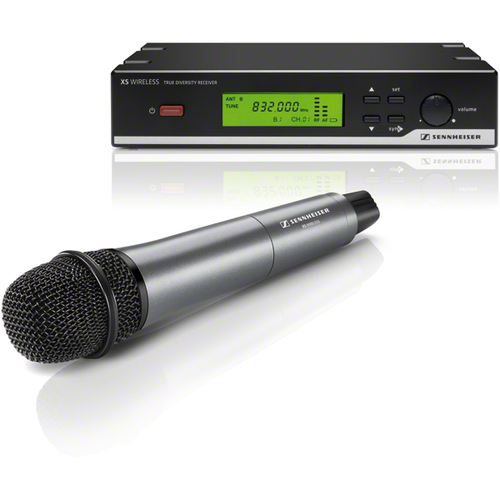

• Sennheiser XSW 35 Wireless Vocal and Presentation Set

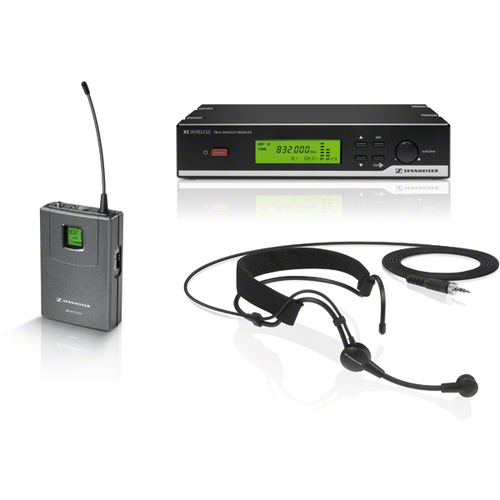

• Sennheiser XSW 52 Wireless Headmic Set
• (50') 18 gauge Speaker Cable (West Penn 224)
• (1) Microphone Cable (CBI ML2-6-PREP-f)
