Yamaha Classroom Sound System with 16 VXC6 In-Ceiling Loudspeakers and MTX3 Processor

This Yamaha Sound System is a total sound solution for lecture halls and classrooms. A podium-mounted control panel allows convenient adjustment of overall volume and preset selections. The system accepts simultaneous input from audio players and microphones.

Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.

Yamaha's new IF2108 Installation Series Speakers address a number of important issues that give them unprecedented performance and handling characteristics for live sound applications, including permanent installations. In particular, phase characteristics have been kept smooth and consistent throughout the entire series, so you can mix and match speakers to suit any system and venue without ending up with hot and dead spots due to phase interference. And of course sonic quality is superb throughout the entire reproduction range so the full impact of the source material reaches the audience undiluted.

The Yamaha MTX Series feature an input/output configuration that is ideal for a wide range of applications: 8 mono inputs (mic/line), 2 stereo inputs (line) and 16 digital inputs via YDIF. The output side consists of 8 line-level mono outputs and 16 digital outputs via YDIF. MTX processors also feature an SD Card Slot for playback of MP3/WAV files stored on an SD Memory Card. The Event Scheduler function allows you to play back these files as music, announcements or chimes or even trigger external devices with a GPI output at scheduled times, as well as recall presets stored within the MTX.

The Yamaha XP series offers five power amplifier models that deliver unmatched quality and value for installations. These power amplifier feature high power, outstanding sound quality, extended reliability, and superior stability for a wide range of installed sound systems as well as portable live sound applications.

The Yamaha XMV Series multi-channel power amplifiers combine Class-D efficiency with features designed specifically to benefit commercial installation sound systems. The Series is comprised of 8 different models with varying output power capabilities and flexible in/out connectivity to accommodate a wide range of installation environments.

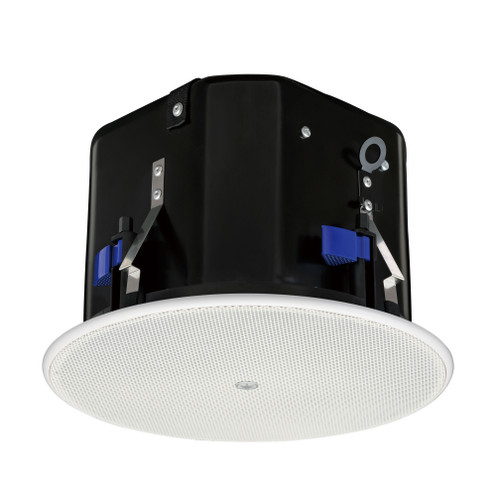

Yamaha VXC6 Full-Range In-Ceiling Speaker

• Series offers three different woofer sizes in either black or white
• Features newly customized transducers for superb music reproduction as well as
• crystal clear announcements
• Designed with optimized bass-reflex tuning to offer a firm, tight low-end
• Equipped with internal transformers that allow both high and low impedance drive,
• which can be selected by simply switching the tap on the baffle
• Anti-Drop tab allows the speakers to be mounted temporarily in the ceiling for
• improved safety and ease of installation
• A flexible carrying band makes the speakers very portable and allows carrying
• multiple speakers at once
• Comes complete with O-rings and tile rails for safer and smoother installation
• Overload protection circuit provided to protect speaker components
• Comes with paintable speaker grilles for flexible design ideas
• Supported by the dedicated software CISSCA (Commercial Installation Solutions Speaker Calculator)

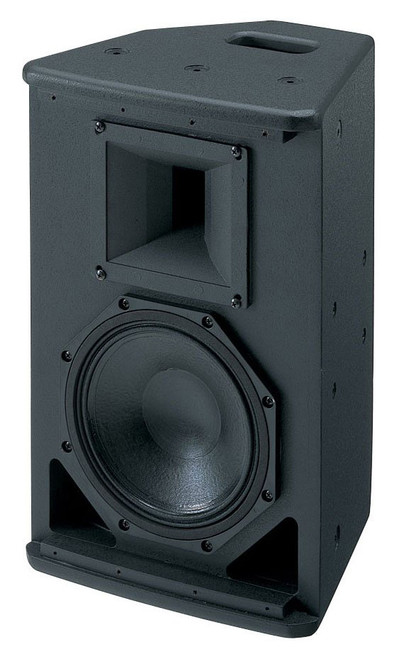

Yamaha IF2108 Installation Series Speaker

• 90º x 60º dispersion pattern
• Multi-angle cabinet design enables floor monitor applications
• Horn can be rotated 90-degrees, allowing vertical or horizontal mounting
• 1.75" high-frequency compression driver with 1" exit
• Eleven 10mm-screw (M10) and six 8mm-screw (M8) suspension points provided for flexible rigging
• Durable black or white finish (can be painted to match any interior)
• Optional matching U-bracket available
• Parallel-wired two Neutrik NL4 and barrier strip connectors



Yamaha MTX3 MTX Series Matrix Processor

• Feedback Suppressor
• Auto Gain Control
• Priority Ducker
• Ambient Noise Compensator
• Reverb and Echo effect processors
• YDIF digital transmission format that delivers 16ch audio
• SD Card Slot for playback of MP3/WAV files
• On-board Dante network port
• MY card slot for additional expandability and functionality



Yamaha XP3500 Power Amplifier

• High impedance and low impedance or both
• New “Double Power Mode”
• Selectable input formats for a wider range of applications
• A perfect match for the MTX Series
• Protection features for more reliable operation
• 4x 140W at 8O/4O
• 4x 125W at 100V/70V lines
• 2x 280W at Double Power Mode (8O/4O)



Yamaha XMV4140 Commercial Power Amplifier

• High impedance and low impedance or both
• New “Double Power Mode”
• Selectable input formats for a wider range of applications
• A perfect match for the MTX Series
• Protection features for more reliable operation
• External control via Ethernet

• (16) Yamaha VXC6 Full-Range In-Ceiling Speaker
• (2) Yamaha IF2108 Installation Series Speaker
• (1) Yamaha MTX3 MTX Series Matrix Processor
• (1) Yamaha XP3500 Power Amplifier
• (1) Yamaha XMV4140 Commercial Power Amplifier
• (1) Yamaha Pro DCP1V4S In-Wall Digital Control Panel
