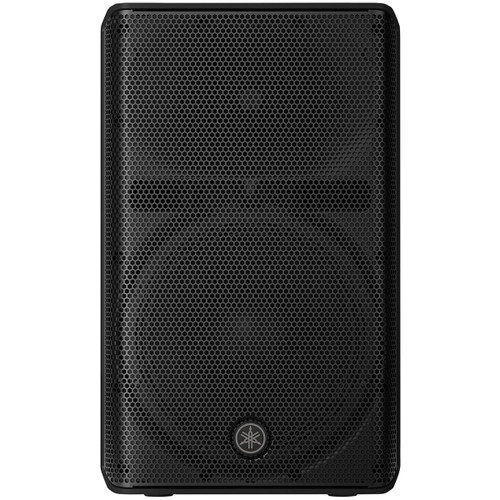

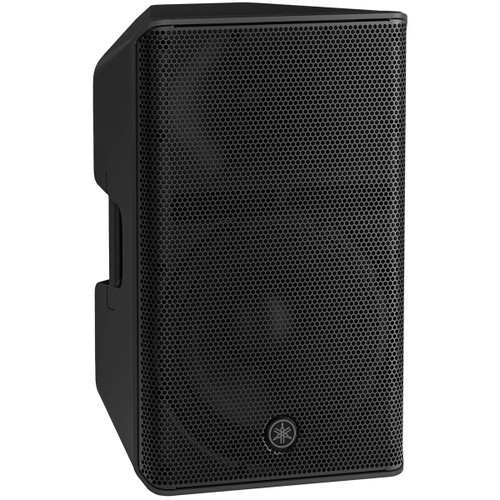

The CXR12 mk3 is a high-performance 2-way passive loudspeaker designed to provide an ideal balance of size, output, and clarity. Equipped with a 12-inch low-frequency driver and a 1.75-inch high-frequency compression driver, it delivers detailed, full-range sound with strong output, making it well-suited for front-of-house applications, stage monitoring, and side fill use.
Its advanced acoustic design includes a large-diameter horn that ensures controlled dispersion across a wide frequency range, along with optimized port positioning to minimize standing wave interference. The lightweight yet durable injection-molded enclosure provides excellent reliability for both portable and installed sound systems.
The CXR12 mk3 is built for flexible deployment, featuring dual-angle pole mounting (0° or -7°), integrated rigging points for flown installations, and compatibility with optional U-brackets for wall or ceiling mounting. Optional protective covers are available for added durability during transport and storage, making it a dependable choice for professional audio environments.
| Speaker Type | 2-way Speaker, Bass-reflex |
|---|---|
| Frequency range (-10 dB) | 51 Hz - 20 kHz |
| Coverage Area | H90° x V60° |
| Crossover | 1.9 kHz |
| Nominal Impedance | 8Ω |
| SPL | Sensitivity (1W; 1 m on axis): 94 dB SPL Peak (Calculated): 124 dB SPL |
| Components | LF: Diameter: 12" cone, Voice Coil: 2.5" HF: Diaphragm: 1.75", Type: 1" throat compression driver |
| Power Rating | NOISE: 275W, PGM: 550W, PEAK: 1100W |
| I/O Connectors | SpeakON NL4MP x 2 (parallel connected) |
| Cabinet Material | Plastic (PP) |
| Finish | Black |
| Handle | Side x2 |
| Pole Socket | Φ35 mm x2 (Bottom, 0° or -7°) |
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 18 mm Eyebolts) Bottom x2 Side x 2 (Fit for M8 x 25 mm UB-DXRDHR12A) |
| Floor Monitor Angle | 52° |
| Dimensions (H x W x D) | 23.6" (600 mm) x 14.4" (366 mm) x 13.8" (350 mm) |
| Weight | 34 lbs (15.4 kg) |
