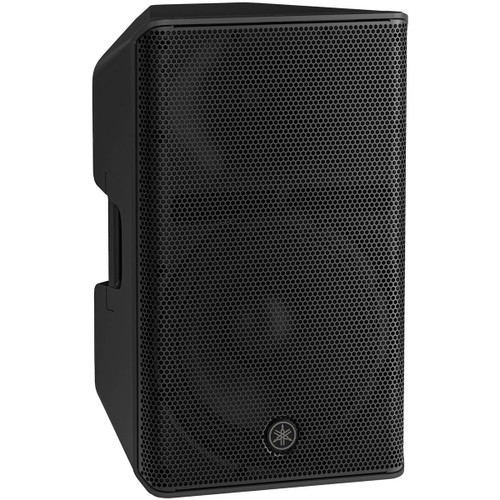

The CXR15 mk3 is a high-output 2-way passive loudspeaker designed to deliver the deepest low-frequency response in the CXR series while maintaining exceptional clarity and precision. Featuring a 15-inch low-frequency driver and a 1.75-inch high-frequency compression driver, it provides powerful full-range sound, making it ideal for front-of-house applications, DJ events, and live performances that demand strong bass presence.
Engineered for consistent and accurate sound reproduction, the CXR15 mk3 incorporates a large-diameter horn for controlled dispersion across a wide frequency range. Its optimized port design minimizes standing wave interference, while the lightweight injection-molded enclosure ensures durability and portability for both mobile and installed sound systems.
The CXR15 mk3 offers flexible installation and deployment options, including dual-angle pole mounting (0° or -7°), built-in rigging points for suspended setups, and compatibility with optional U-brackets for wall or ceiling mounting. Optional protective covers are available for added durability during transport and storage, making it a reliable solution for demanding professional audio environments.
| Speaker Type | 2-way Speaker, Bass-reflex |
|---|---|
| Frequency range (-10 dB) | 50 Hz - 20 kHz |
| Coverage Area | H90° x V60° |
| Crossover | 1.8 kHz |
| Nominal Impedance | 8Ω |
| SPL | Sensitivity (1W; 1 m on axis): 95 dB SPL Peak (Calculated): 126 dB SPL |
| Components | LF: Diameter: 15" cone, Voice Coil: 3" HF: Diaphragm: 1.75", Type: 1" throat compression driver |
| Power Rating | NOISE: 300W, PGM: 600W, PEAK: 1200W |
| I/O Connectors | SpeakON NL4MP x 2 (parallel connected) |
| Cabinet Material | Plastic (PP) |
| Finish | Black |
| Handle | Side x2 |
| Pole Socket | Φ35 mm x2 (Bottom, 0° or -7°) |
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 18 mm Eyebolts) Bottom x2 Side x 2 (Fit for M8 x 25 mm UB-DXR15A) |
| Floor Monitor Angle | 52° |
| Dimensions (H x W x D) | 27.5" (699 mm) x 17.6" (447 mm) x 15" (380 mm) |
| Weight | 41.9 lbs (19 kg) |
