Yamaha DSR115 DSR Series 15 inch 2 Way Bi-Amp Loudspeaker (Discontinued)

By Yamaha

Yamaha DSR115 DSR Series 15 inch 2 Way Bi-Amp Loudspeaker (Discontinued)

Name: Yamaha DSR115 DSR Series 15 inch 2 Way Bi-Amp Loudspeaker (Discontinued)
Brand: Yamaha
SKU: YAMAHA-DSR115
Price: 999.99 USD
Availability: OutOfStock

Write a Review

Part #:

DSR115

Model #:

DSR115

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Yamaha DSR115 1300-watt Powered PA Speaker gives you big, clean, and clear sound for all kinds of venues.

Description

Yamaha's revolutionary DSR Series of active loudspeakers take full advantage of our expertise and experience amassed as one of the world's leading pro audio manufacturers.

The DSR Series feature an ideal combination of advanced digital sound processing and the latest acoustic technologies for Integral Digital Tuning, plus our all-new D-CONTOUR multi-band dynamic processing for Intelligent Dynamic Control. Furthermore, they harness our next-generation high power Class-D amplifiers, featuring PFC switching mode power supply for Powerful Digital Drive while power supply, amplifiers, and transducers are continuously monitored by Extensive DSP Protection.

These core elements give the DSR Series the capability to deliver class leading power, extreme sound pressure levels and a listening experience that re-defines high definition audio. For loudspeakers you can count on to deliver the musicality and sound that will thrill audiences night after night, let the DSR Series power your performances to incredible new heights.

Features

Next-generation active loudspeaker incorporating high performance DSP
All-new high power Class-D amplifiers with PFC switching mode power supply full range models only
Advanced digital sound processing
FIR-X tuning™ for the smoothest possible crossover transitions
D-CONTOUR(Dynamic-CONTOUR) multi-band dynamic processing provides consistent clarity at both high and low output levels
Compact and lightweight, yet capable of 1300W (LF850W, HF450W) power output. Loudest,cleanest output of any loudspeakers in their class
Extensive protection of the transducers, amplifiers and power supply from high performance DSP
Premium-grade, custom-designed transducers
Exclusive LTBD (Long Throw, Broad Dispersion) Constant Directivity Waveguide Horns provide expansive 90° x 60° coverage

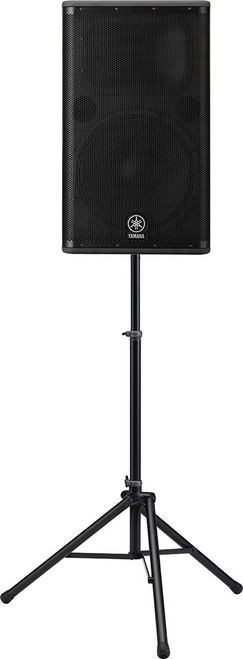

Stand and pole mountable, with 35mm pole sockets
M10 rigging points for suspended installation

Specifications

LINE/MIC switch: LINE
System Type	15" 2-way, bi-amp poweredspeaker, bass-reflex type
Frequency Range (-10dB)	45Hz ~ 20kHz
Frequency Response (-3dB)	55Hz ~ 18kHz
Coverage Angle	H: 90º x V: 60º
Crossover Type	FIR-X tuning (linear phase FIR filter)
Crossover Frequency	1.7kHz
Measured Maximum SPL	136dB SPL
Amplifier Type	Class-D
Power Rating	1300W
HF	450W
LF	850W
Cooling	Natural Convection

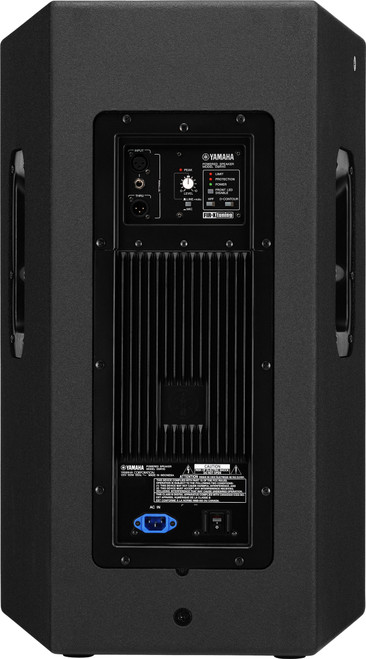

Controls	LEVEL control, LINE/MIC switch, HPF switch, D-CONTOUR switch, FRONT LED DISABLE switch, POWER switc
Indicators	PEAK: x1 (Red), LIMIT: x1 (Red), PROTECTION: x1 (Red), POWER: x1 (Green), FRONT: x1 (White), HPF: x1 (Orange)
HPF Frequency	120Hz (-6dB) 24dB/oct
Boost Type	D-CONTOUR (Dynamic CONTOUR)
Protection Load	POWER switch on/off: MuteDC-fault: power supply shuts down automatically (reset manually)
Protection Amplifier	Thermal: Limit the output or Mute; Output through current: Amplifier shuts down automatically
Protection Power supply	Thermal : Amplifier shuts down automatically; Over voltage: power supply shuts down automatically
Connectors Input	XLR-3-31 x1 (Balanced); TRS Phone Jack x1 (Balanced)
Connectors Output	XLR-3-32 x1 (Balanced); Parallel connection with INPUT
Connectors Power	AC inlet x1
Power Consumption	100W
Low-Frequency	15" cone
Magnet	Neodymium Magnet
Voice Coil	3 Inch
High-Frequency	2" Titanium diaphragm compression driver
Externals Finish, Color	LINE-X®, Black
Grille	16 gauge matte black powder coated perforated steel grille
Metal Handle	2pcs (Side Board)
Input Sensitivity	maximum LEVEL position: maximum - 0dBu; LEVEL position: center (12 O'clock) - +7dBum +10dBu "+4" indication +17dBu
Maximum Input Level	+24dBu
Input Impedance	12kΩ
LINE/MIC switch: MIC
Input Sensitivity	LEVEL position: maximum -25dBu
Maximum Input Level	-11dBu
Input Impedance	8kΩ
Pole Socket	35mm (Bottom Board)
Flying Hardware	3 x M10 (TOP L/R 1pc each, Bottom rear 1pc)
Dimensions (H x W x D)	29-6/8" (755 mm) x 17-4/8" (442 mm) x 16-6/8" (423 mm)
Weight	62 lbs (28.0 kg)
