Yamaha DSR118W 18 Inch Bass Reflex Active Subwoofer (Discontinued)
Part # DSR118W
Model # DSR118W

The Yamaha DSR118W Powered PA subwoofer gives you the big, clean low-frequency performance you need

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Yamaha's revolutionary DSR Series of active loudspeakers take full advantage of our expertise and experience amassed as one of the world's leading pro audio manufacturers.

The DSR Series feature an ideal combination of advanced digital sound processing and the latest acoustic technologies for Integral Digital Tuning, plus our all-new D-CONTOUR multi-band dynamic processing for Intelligent Dynamic Control. Furthermore, they harness our next-generation high power Class-D amplifiers, featuring PFC switching mode power supply for Powerful Digital Drive while power supply, amplifiers, and transducers are continuously monitored by Extensive DSP Protection.

These core elements give the DSR Series the capability to deliver class leading power, extreme sound pressure levels and a listening experience that re-defines high definition audio. For loudspeakers you can count on to deliver the musicality and sound that will thrill audiences night after night, let the DSR Series power your performances to incredible new heights.
Features

Features

  • 800W Class-D amplifier with PFC* switching mode power supply
  • Power Factor Correction
  • Maximum SPL 132dB peak
  • Extensive protection of the transducers, amplifiers and power supply
  • Premium-grade, custom designed transducers
  • Long travel, cast frame 18" woofer
  • High power, low distortion output
  • Low-frequency extension down to 40Hz
  • Compact and lightweight
  • Bass-reflex, direct-radiating design
  • Top panel pole mount for satelite configuration
  • Heavy-duty 16-gauge (1.6mm) steel grilles
  • Locking IEC cable
Specification
System Type18" Powered speakerbass-reflex type
Frequency Range (-10dB)40Hz ~ 130Hz
Frequency Response (-3dB)50Hz ~ 110Hz
Measured Maximum SPL (peak) IEC noise @ 1m132dB SPL
Amplifier TypeClass-D
Power Rating800W
CoolingNatural Convection

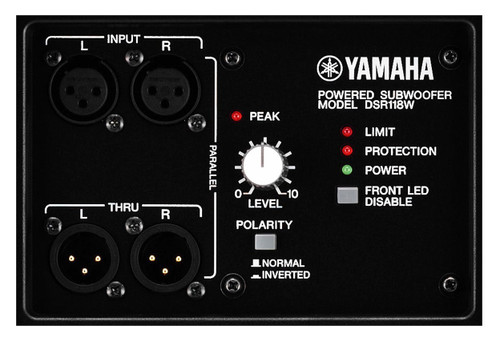

ControlsLEVEL control, POLARITY switch, FRONT LED DISABLE switch, POWER switch
IndicatorsPEAK: x1(Red), LIMIT: x1(Red), PROTECTION: x1(Red), POWER: x1(Green), FRONT: x1(White)
Protection LoadPOWER switch on/off: Mute; DC-fault: power supply shuts down automatically (reset manually)
Protection AmplifierThermal: Mute; Output through current: Amplifier shuts down automatically
Protection Power supplyThermal : Amplifier shuts down automatically; Over voltage: power supply shuts down automatically
Connectors InputXLR-3-31 x2 (Balanced)
Connectors OutputXLR-3-32 x2 (Balanced) Parallel connection with INPUT
Power Consumption100W
Transducer
Low-Frequency18" cone
MagnetFerrite Magnet
Voice Coil3 Inch
External Finish, ColorLINE-X®, Black
Grille16 gauge matte black powder coated perforated steel grille
Metal Handle2pcs (Side Board)
LINE/MIC switch: LINE
Input SensitivityMaximum: +10dBu
Maximum Input Level+24dBu
Input Impedance10kΩ
Pole Socket35mm (Top Board)
Dimensions (H x W x D)25 2/8" (638 mm) x 20 4/8" (520 mm) x 23" (584 mm)
Weight93 lbs (42.0 kg)
