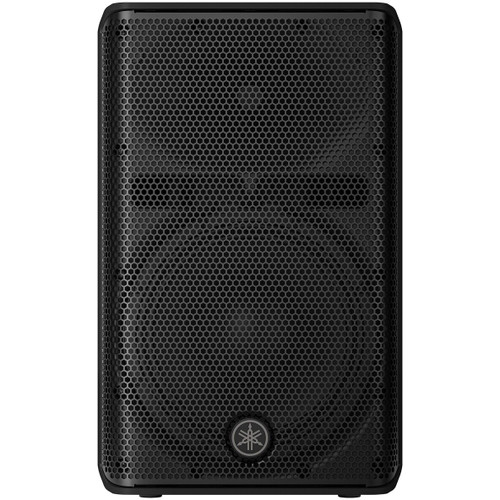

Yamaha DXR10 mk3 10-Inch 2-Way Powered PA Loudspeaker

The DXR10 mk3 is the most compact model in the Yamaha DXR series, designed to deliver exceptional clarity, precision, and powerful performance in a highly portable format. With a 2000W Class-D amplifier and a maximum output of 132 dB SPL, it is ideal for applications requiring a lightweight yet high-output solution, including front-of-house systems, stage monitoring, and mobile sound reinforcement.

Equipped with a 10-inch low-frequency driver and a 1.75-inch high-frequency compression driver, the DXR10 mk3 ensures accurate full-range sound reproduction with excellent detail. Advanced FIR-X tuning and Drive Motion Calibration technologies provide precise phase alignment and improved low-frequency linearity, while the optimized horn design ensures consistent coverage across a wide listening area.

The DXR10 mk3 also includes powerful DSP functionality with FOH/MAIN and MONITOR modes, featuring Auto V/H Position for quick setup optimization. Bluetooth audio streaming and remote control via the Yamaha D-Remote app (iOS and Android) add modern flexibility, while intelligent feedback suppression enhances live performance stability. Its rugged yet lightweight enclosure, dual-angle pole mount, rigging points, and optional accessories make it a versatile solution for both portable and installed sound systems.

Features

Features

2000W Class-D bi-amped amplifier for powerful, high-output performance
132 dB SPL maximum output in a compact 10" enclosure
10" LF driver and 1.75" HF compression driver for precise full-range sound
FIR-X tuning reduces phase distortion for improved clarity and accuracy
Drive Motion Calibration enhances low-frequency linearity and response
Advanced DSP modes for FOH and monitor applications with Auto V/H Position
Bluetooth audio streaming for wireless playback flexibility
Remote control via the Yamaha D-Remote app for iOS and Android devices
Intelligent feedback suppressor reduces unwanted live sound feedback
Lightweight injection-molded enclosure for portability and durability
Optimized horn design ensures consistent sound dispersion
Dual-angle pole mount (0° or -7°) for flexible positioning
Built-in rigging points for suspended installation options
Optional U-bracket for wall or fixed installation use
Optional protective cover for transport and outdoor protection

Specification

Speaker Type	2-way, Bi-amped Powered Speaker, Bass-reflex
Low-Frequency Driver	10" cone, 2.5" voice coil
High-Frequency Driver	1.75" diaphragm, 1" throat compression driver
Frequency Range (-10 dB)	53 Hz - 20 kHz
Maximum Output Level	132 dB SPL (peak, IEC noise @ 1 m)
Amplifier Type	Class-D
Power Output (Peak)	2000W (LF: 1700W, HF: 300W)
Power Output (RMS)	1000W (LF: 850W, HF: 150W)
Coverage Angle	90° Horizontal x 60° Vertical
Crossover Frequency	1.8 kHz with FIR-X tuning (linear phase FIR filter)
DSP Modes	FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF
Bluetooth	Ver. 5.0, A2DP (SBC, AAC), Class 1
Mounting/Rigging	35 mm pole socket (0° or -7°), M8 fly points, optional U-bracket
Color	Black
Dimensions (H x W x D)	19.8" (502 mm) x 12.2" (310 mm) x 12.2" (310 mm)
Weight	32 lbs (14.5 kg)
