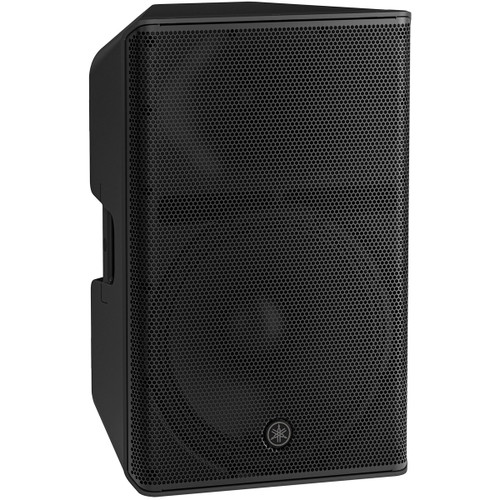

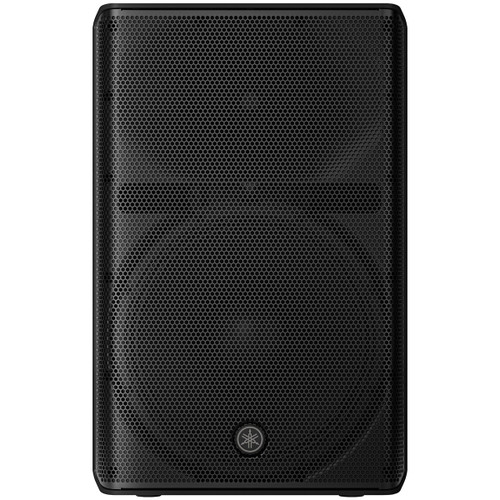

Yamaha DXR10 mk3 10" 2-Way 2000W Bi-Amped Powered PA Loudspeaker with Bluetooth and DSP
Usually arrives in 5-9 business days.
The DXR15 mk3 is a high-performance 2-way, bi-amped powered loudspeaker designed to deliver the deepest low-frequency response in the DXR series, along with exceptional clarity and precision. With a powerful 2000W Class-D amplifier and a maximum SPL of 134 dB, it is ideal for front-of-house applications, DJ events, and live performances that demand strong, impactful bass and consistent coverage.
Engineered with a 15-inch low-frequency driver and a 1.75-inch high-frequency compression driver, the DXR15 mk3 ensures balanced, full-range sound. Advanced technologies such as FIR-X tuning and Drive Motion Calibration optimize phase response and low-frequency accuracy, while the large-diameter horn enhances directivity across a wide frequency range. Its rugged yet lightweight injection-molded enclosure is built for durability and easy transport.
The DXR15 mk3 also features powerful DSP functionality, including FOH and monitor modes with automatic configuration via Auto V/H Position. Users can control settings remotely through the D-Remote app on iOS or Android devices, and Bluetooth audio streaming adds modern flexibility. Additional features like an intelligent feedback suppressor, dual-angle pole mounting, and optional mounting and protection accessories make it a versatile and reliable solution for professional audio environments.
| Speaker Type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
|---|---|
| Low-Frequency Driver | 15" cone, 3" voice coil |
| High-Frequency Driver | 1.75" diaphragm, 1" throat compression driver |
| Frequency Range (-10 dB) | 46 Hz - 20 kHz |
| Maximum Output Level | 134 dB SPL (peak, IEC noise @ 1 m) |
| Amplifier Type | Class-D |
| Power Output (Peak) | 2000W (LF: 1700W, HF: 300W) |
| Power Output (RMS) | 1000W (LF: 850W, HF: 150W) |
| Coverage Angle | 90° Horizontal x 60° Vertical |
| Crossover Frequency | 1.8 kHz with FIR-X tuning (linear phase FIR filter) |
| DSP Modes | FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF |
| Processing | 32-bit/96 kHz A/D and D/A converters |
| Bluetooth | Ver. 5.0, A2DP (SBC, AAC), Class 1 |
| Inputs | INPUT1: Combo x1, INPUT2: Combo x1 (Mic/Line selectable) |
| Mounting/Rigging | Pole socket (35 mm, 0° or -7°), Fly points (M10), Optional U-bracket |
| Color | Black |
| Dimensions (H x W x D) | 27.5" (699 mm) x 17.6" (447 mm) x 15" (380 mm) |
| Weight | 46.3 lbs (21 kg) |
