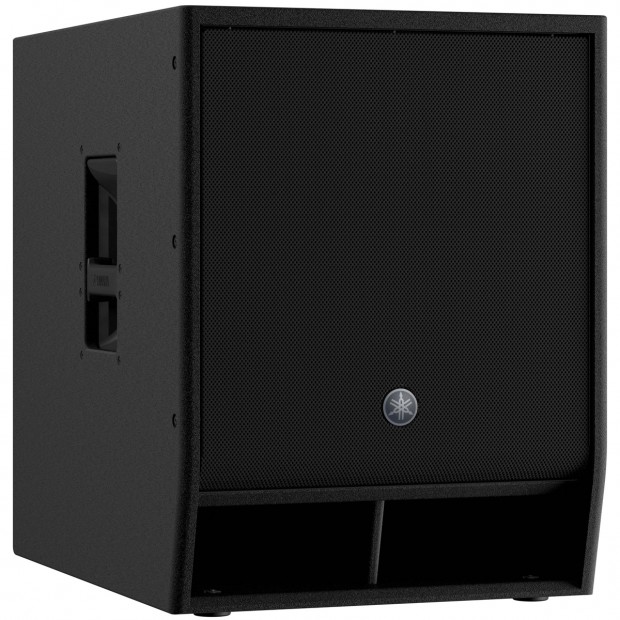

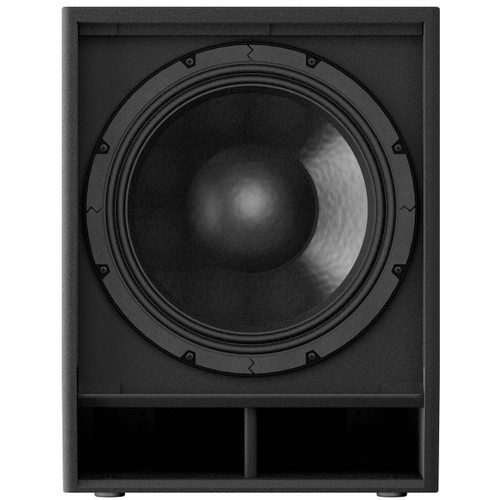

Yamaha DXS15XLF 15" 1600W Powered Bass-Reflex Subwoofer - Black
Yamaha DXS15XLF 15" 1600W Powered Bass-Reflex Subwoofer - Black
Yamaha DXS15XLF 15" 1600W Powered Bass-Reflex Subwoofer - Black
Yamaha DXS15XLF 15" 1600W Powered Bass-Reflex Subwoofer - Black
Yamaha DXS15XLF 15" 1600W Powered Bass-Reflex Subwoofer - Black
By Yamaha

Yamaha DXS15XLF 15" 1600W Powered Bass-Reflex Subwoofer - Black

Write a Review
Part #:
DXS15XLF
Model #:
DXS15XLF
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

Perfectly suited for use with DZR full-range speakers, the Yamaha DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in-class maximum SPL of 136dB SPL with superb clarity and power.

Description

Yamaha DXS15XLF 15-Inch 1600W Powered Subwoofer

Perfectly suited for use with DZR full-range speakers, the Yamaha DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in-class maximum SPL of 136dB SPL with superb clarity and power.

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of all Yamaha’s accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha’s first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.

Features
  • Powered 15" subwoofer with 4" Voice Coil
  • Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today’s sound engineering demands
  • High power 1600W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-definition sound with super low latency
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • Equipped with D-XSUB processing and cardioid mode capability
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)

Specifications
Frequency Range (-10 dB) 33Hz - 150Hz
Power Rating 1600W
Maximum SPL 136dB SPL
LF Driver 15" Cone, 4" Voice Coil, Ferrite magnet
Optional Accessories Cover: SPCVR-DXS15X, Casters: SPW-1
Dimensions (H x W x D) 23.1" (587 mm) x 17.7" (450 mm) x 23.6" (600 mm)
Weight 88.2 lbs (40 kg)

DOCUMENTS

Related Products

Yamaha DXS15XLF-D 15" 1600W Powered Bass-Reflex Subwoofer with Dante - Black Yamaha DXS15XLF-D 15" 1600W Powered Bass-Reflex Subwoofer with Dante - Black

Yamaha DXS15XLF-D 15" 1600W Powered Bass-Reflex Subwoofer with Dante - Black

Yamaha DXS15XLF-D 15-Inch Dante-Equipped Powered Subwoofer Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a Dante-equipped powered bass-reflex type subwoofer with extended...
MSRP: $2,684.00
$1,789.99

Usually arrives in 5-9 business days.

MSRP: $2,684.00
$1,789.99
Add to Cart The item has been added
Yamaha DXS18XLF 18" 1600W Powered Bass-Reflex Subwoofer - Black Yamaha DXS18XLF 18" 1600W Powered Bass-Reflex Subwoofer - Black

Yamaha DXS18XLF 18" 1600W Powered Bass-Reflex Subwoofer - Black

Yamaha DXS18XLF 18" 1600W Powered Subwoofer Perfectly suited for use with DZR full-range speakers, the DXS18XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a...
MSRP: $2,608.00
$1,739.99

Usually arrives in 5-9 business days.

MSRP: $2,608.00
$1,739.99
Add to Cart The item has been added

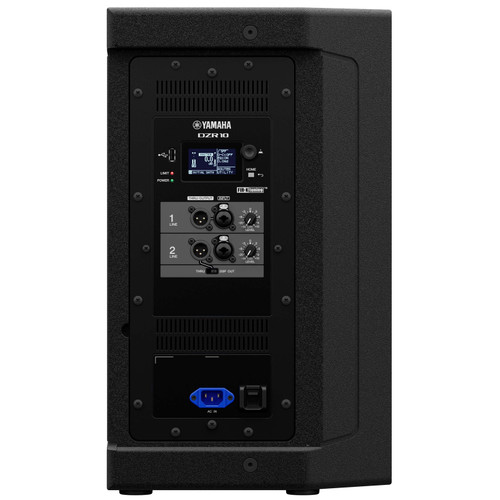

Yamaha DZR10 10" 2-Way 2000W Powered Loudspeaker Yamaha DZR10 10" 2-Way 2000W Powered Loudspeaker

Yamaha DZR10 10" 2-Way 2000W Powered Loudspeaker

Yamaha DZR10 10" 2-Way Bi-Amped Powered Loudspeaker The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance,...
MSRP: $1,964.00
$1,309.99

Usually arrives in 5-9 business days.

MSRP: $1,964.00
$1,309.99
Add to Cart The item has been added

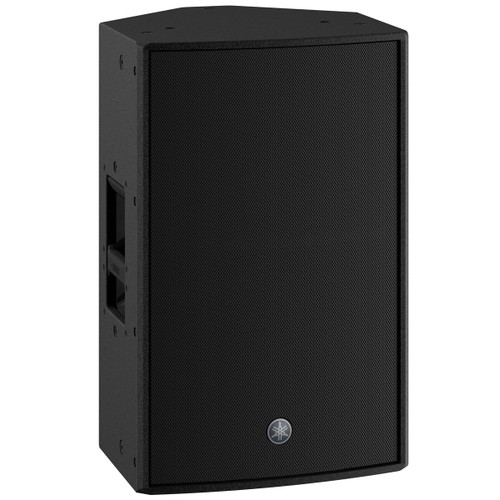

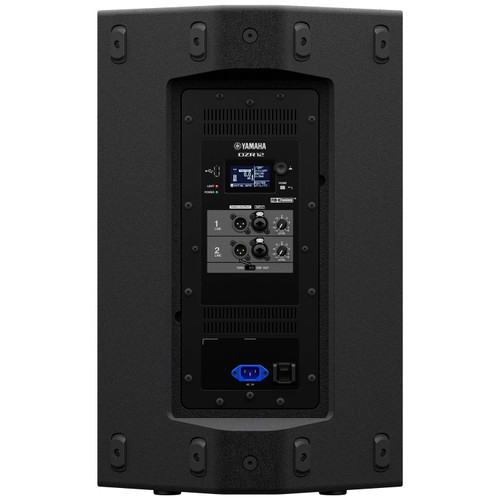

Yamaha DZR12 12" 2-Way 2000W Bi-Amplified Powered Loudspeaker - Black Yamaha DZR12 12" 2-Way 2000W Bi-Amplified Powered Loudspeaker - Black

Yamaha DZR12 12" 2-Way 2000W Bi-Amplified Powered Loudspeaker - Black

Yamaha DZR12 12-Inch Bi-Amped Powered Loudspeaker The DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL. With best-in-class SPL performance,...
MSRP: $2,114.00
$1,409.99

Usually arrives in 5-9 business days.

MSRP: $2,114.00
$1,409.99
Add to Cart The item has been added

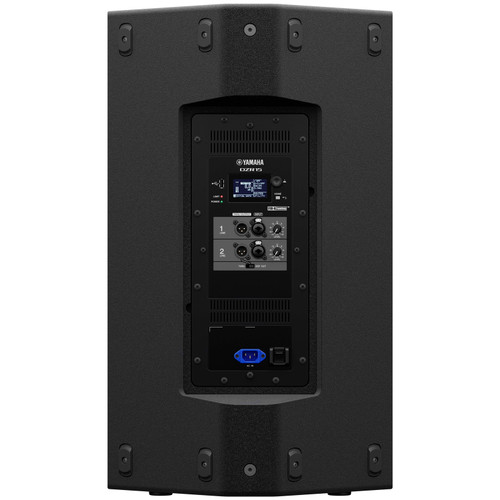

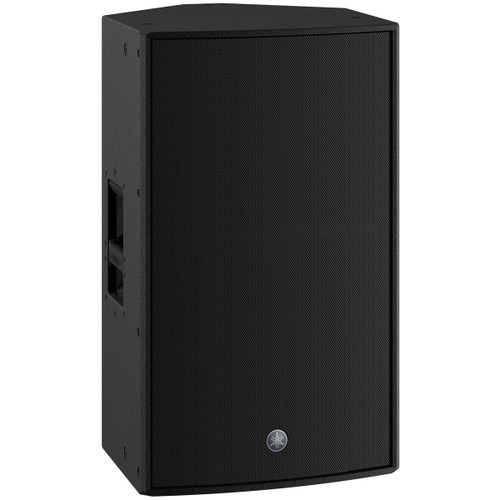

Yamaha DZR15 15" 2-Way 2000W Bi-Amplified Powered Loudspeaker - Black Yamaha DZR15 15" 2-Way 2000W Bi-Amplified Powered Loudspeaker - Black
