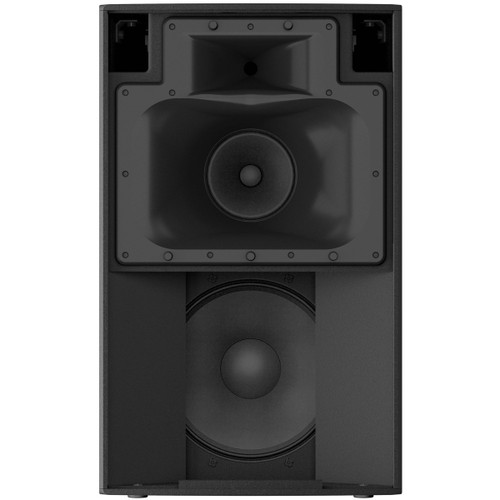

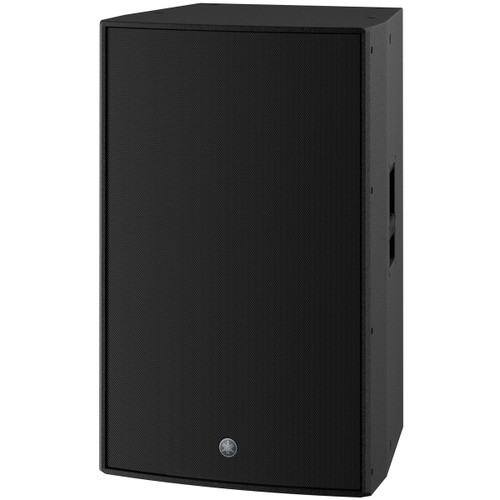

Yamaha DZR315 15" 3-Way Bi-Amped Powered Loudspeaker
The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.
The culmination of all Yamaha’s accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha’s first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.
| Frequency Range (-10 dB) | 31 Hz – 20 kHz |
|---|---|
| Coverage Angle | H 75° x V 50° |
| Power Rating | 2000W (LF: 1000W, MF/HF: 1000W) |
| Maximum SPL | 143 dB SPL |
| LF Driver | 15" Cone, 3" Voice coil, Neodymium magnet |
| MF Driver | 8" Cone, 1.5" Voice coil, Ferrite magnet |
| HF Driver | 2" Voice coil, 1" Throat compression driver, Titanium diaphragm, Neodymium magnet |
| Dimensions (H x W x D) | 35.3" (897 mm) x 21.6" (550 mm) x 20.5" (520 mm) |
| Weight | 91.7 lbs (41.6 kg) |
