Yamaha Gym Sound System with 8 Flyable C115VA Loudspeakers, Ashly Amplifier, Wireless Microphone and Bluetooth

This gymnasium sound system with 8 Yamaha C115VA loudspeakers and Ashly PEMA 8250 power amplifier delivers consistent high-performance audio ideal for play-by-play announcements in gymnasiums, indoor arenas, basketball courts, volleyball courts, and other indoor athletic environments.

The Yamaha Concert Club VC series C115VA flyable speakers are specifically designed for installations rather than portable applications: metal handles and pole sockets have been eliminated, while barrier-strips are provided for secure, lasting connections. 3/8-inch eye bolt screw holes are provided on all sides - 3 each on the top and bottom, and 2 each on the sides and back - for convenient vertical or horizontal suspension (4 3/8-inch eye bolts are provided with each speaker).

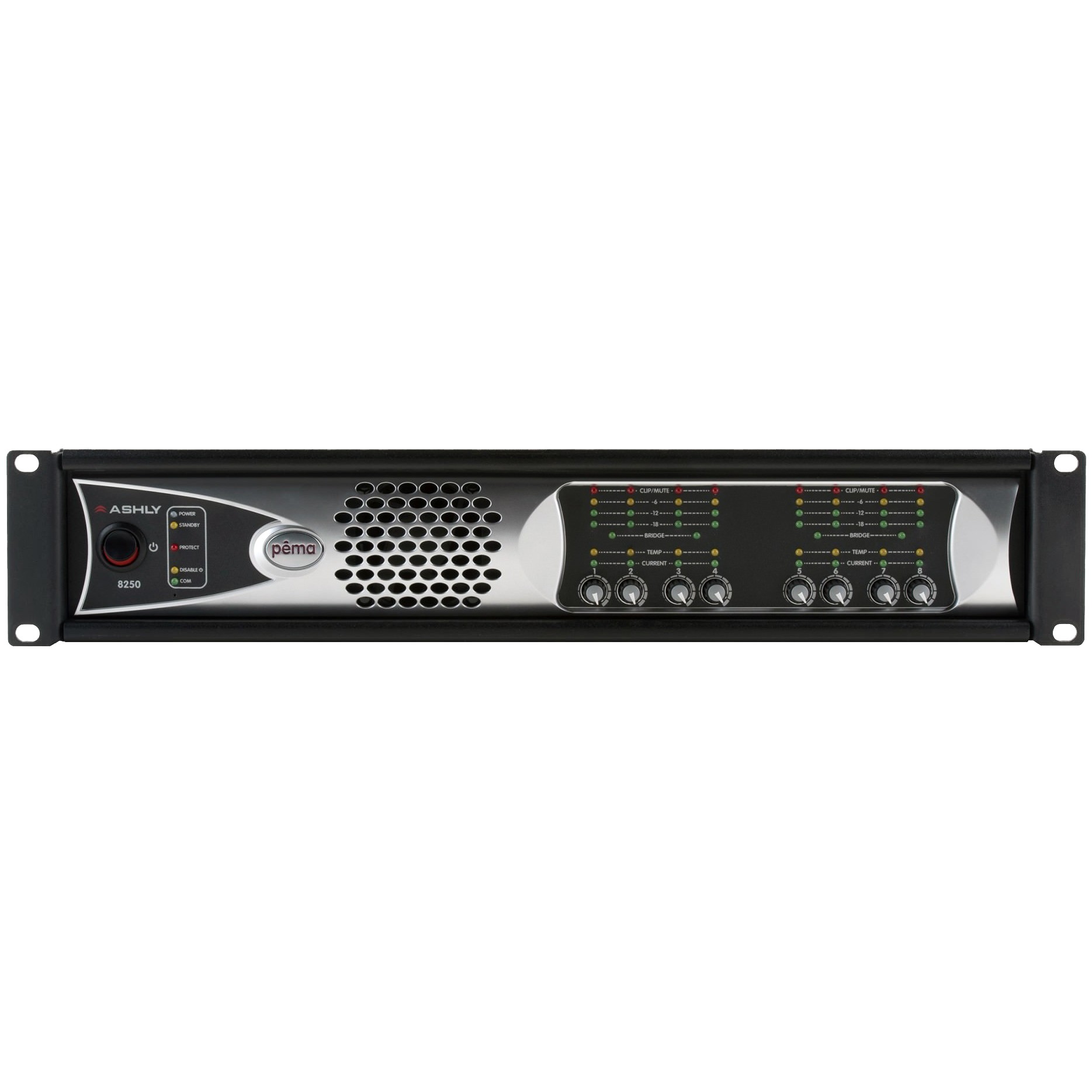

The Ashly Pema 8250 DSP Processor is a Protea-Equipped Media Amplifier. It features 8-channels at 250 Watts per channel. Pema is a matrix mixer—all Pema models have a full 8-in x 8-out matrix mixer, where any input can be assigned to any output or outputs. Pema is a digital signal processor. In addition to the full Protea suite of DSP settings, we have added four new features to Pema—gain sharing automatic microphone mixing, an automatic feedback suppressor, ambient noise detection and adjustment and a real-time clock with an event scheduler.

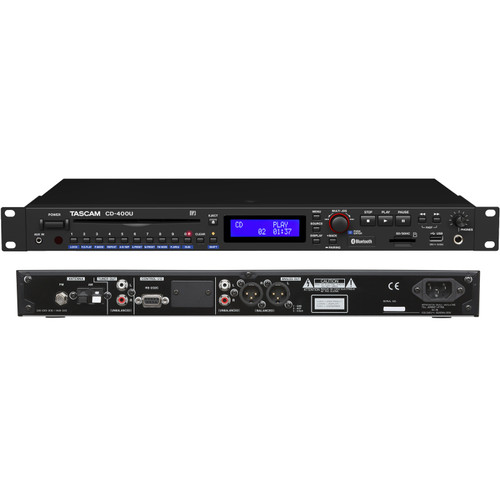

Ideal for a variety of installations, the Tascam CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is possible.

The Audix AP61 OM2, is a best-selling vocal microphone, has a slight bass proximity, a tailored mid-range and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion. A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include rackmount kit for mounting two systems in one rack space, active directional antennas and antenna distribution system for up to four systems (4 channels).

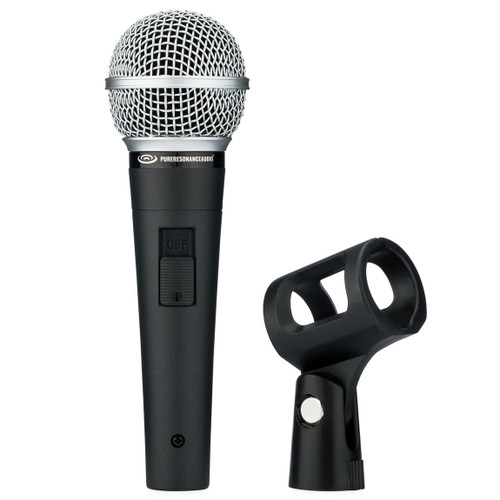

The Pure Resonance Audio Ultra-Clear™ UC1S Microphone perfect for use in schools, houses of worship, corporate AV, theater, fixed installations and more. Great for any application or environment where you need a great sounding, cost-effective microphone. It maintains a true cardioid pattern throughout its frequency range making it an ideal choice for professional sound reinforcement, studio recording, broadcasting, backup vocals and spoken word applications. The frequency response is tailored for vocals with a presence rise in the mid-range.

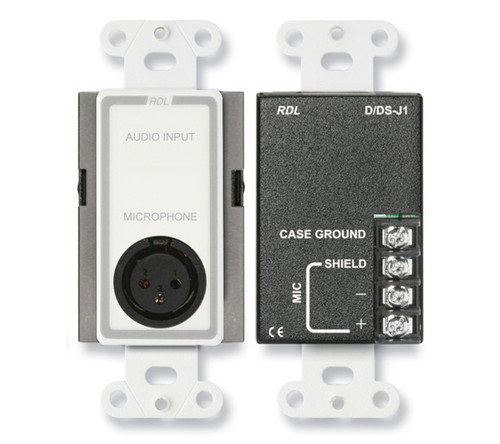

The RDL D-J1 is a complete microphone input panel assembly. Connections to the female front‑panel XLR jack are made on a rear barrier block. Four terminals are provided: Case Ground, Shield (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the Shield connection and Case Ground if desired. The back of the D Series-J1 is finished with a metal enclosure clearly labeled for easy installation. The D-Series-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

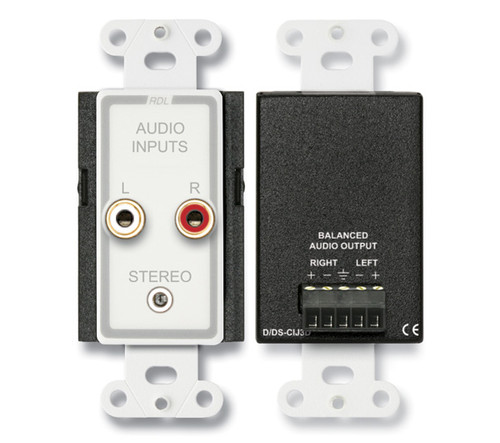

The RDL D-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.

The Ashly WR-5 is a programmable remote control unit uses serial data communications to control Ashly products. The unit has six programmable LED function buttons and two up/down buttons with adjacent numeric LED display for adjusting parameters. The unit connects directly to its host unit using low gauge four conductor wire and is powered from that unit or from an external Ashly RPS-18 in-line power booster. The unit is programmed using Ashly Protea NE Software and offers control of preset recall/scroll, channel mute, zone source selection, individual channel level, matrix point level, and logic output if available. The unit has clear windows for insertion of user-defined function button labels and mounts in a standard US electrical wall box.

Not sure if this is the right Gymnasium Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Yamaha C115VA 15" 2-Way Professional Loudspeakers:

• 15" cast frame woofer
• 2" titanium compression driver
• 12 integral fly points
• Screw terminal inputs for simple installation
• Ready to hang right out of the box
• Heavy-duty elastomeric spray coating



Ashly Pema 8250 Power Amplifier:

• Lo-Z, 25V, 70V, and 100V models
• 8-in x 8-out sophisticated matrix mixing
• 8 built-in mic pre's
• Gain sharing automatic microphone mixing (Automixer)
• Automatic feedback suppression
• Ambient noise compensation
• Dedicated telephone/PBX input
• Dual RCA and balanced euroblock inputs
• Post DSP AUX line level outputs
• Stereo summed to mono
• Event scheduling (RTC)
• Adjustable HP/LP filters
• Built-in pink/white noise & sine wave generator
• Extensive signal processing: Full suite of Ashly NE Series DSP
• Hot-plug DSP placement, 96kHz or 48kHz sample rate
• 32-Bit SHARC DSP, 24-bit A/D~D/A audio resolution
• 15V phantom power
• Full control using Ashly software over 10/100 baseT Ethernet
• Easy and intuitive user interface
• Automatic DHCP network IP configuration
• Euroblock connectors for preset recall, DC remote level control and data in/out
• External control via Ashly standard wall remotes or Ashly Ethernet wall remotes
• Level control via variable DC control voltage
• Stand-By mode activation via contact closure
• Multi-level Security



Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth:

• CD/SD/USB/and FM/AM tuner realtime audio playback
• Wireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computer
• Outputs: XLR, RCA X 2, and headphone
• 1/8" audio input for playback from any external source
• "Power on Play" function starts audio playback automatically when powered on
• "Panel Lock" function disables buttons to avoid unauthorized operation or programming
• Real time recording from CD or FM/AM tuner to SD or USB media
• External control via RS-232C
• Control via ethernet with optional IF-E100 ethernet card is planned in the future



Audix AP61 OM2 Wireless Handheld Microphone System:

• 64 MHz Wide spectrum tuning receiver
• 207 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• 2560 tunable frequencies
• 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
• Durable metal housing
• 14 Hour run time - AA batteries



Pure Resonance Audio UC1S Dynamic Handheld Microphones:

• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Dependable quality, ruggedness and reliability
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz



Ashly WR-5 Wall Mounted Remote:

• Six programmable function buttons w LED
• Two Up/Down buttons w LED display adjust parameters
• Preset recall and preset scroll
• Input, Output, and matrix mix gain control
• Zone source select
• Channel mute
• Logic high/low output (ne24.24M w/ GPO option, ne8800, 4800, 4400)
• Connect directly to host unit, no network required
• Up to four WR-5 remotes per host unit
• RPS-18 Inline Power Booster available when more than four WR-5 remotes used
• Window for user-defined labels
• Shipping weight: 1lbs (1kg)
• Safety/compliance: CE, FCC, RoHS



RDL D-J1 Microphone Inputs:

• Wall Mounted Microphone Input Panel
• XLR Input Connector with Gold Contacts
• Barrier Block Wiring Connections
• Ground-Lift Terminals on Barrier Block



RDL D-CIJ3D Stereo Input Jacks:

• Stereo Inputs to Stereo Outputs
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Inputs
• Output Connections on Detachable Terminal Block



Gator GRW-2009508 9U Steel Door Sectional Wall Rack:

• 9U, 21" Deep; Steel Front Door
• Hinged back double section welded frame construction
• 18 Gauge Removable Side Panels with Spring Latch
• 18 gauge SPCC cold rolled steel top and bottom
• Fan ready perforated top
• 11 gauge drilled and tapped front and rear rack rails
• Rack U number printed on the rack rails
• 10/32 rack screws
• 1/2", 5/8", 3/4", 1"1 and 1 1/2" cable entry knockouts on top and bottom
• 5/8" knockout design to be used for VHF/UHF antenna
• 10" x 10" rear access knockout for cable entry
• Front door features 18 gauge solid steel

• (8) Yamaha C115VA 15" 2-Way Professional Loudspeakers
• (1) Ashly Audio Pema 8250 8-Channel Power Amplifier 8 x 250W @ 4 ohms with Protea DSP
• (1) Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
• (1) Audix AP61 OM2 Wireless Handheld Microphone System
• (3) Pure Resonance Audio UC1S Dynamic Handheld Microphones
• (1) Ashly WR-5 Wall Mounted Remote
• (2) RDL D-J1 Microphone Inputs
• (2) RDL D-CIJ3D Stereo Input Jacks
• (1) Gator GRW2009508 9U Steel Door Wall Rack

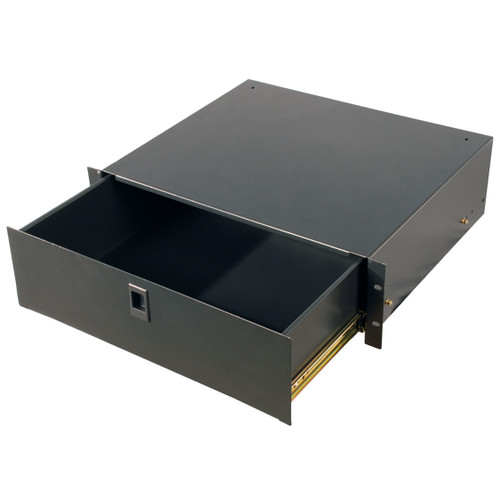

• (1) Gator GRW-DRW3 Rackworks Rack Drawer
• (1) CBI MLN-3-Prep-F Patch Cable - 3ft

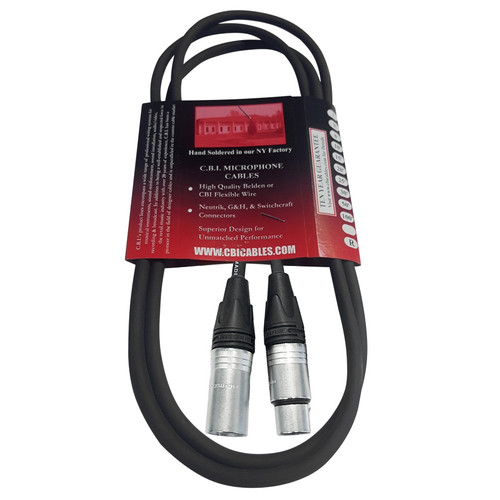

• (3) CBI MLN-6 XLR Patch Cables - 6ft
• (8) NL4FX Connectors

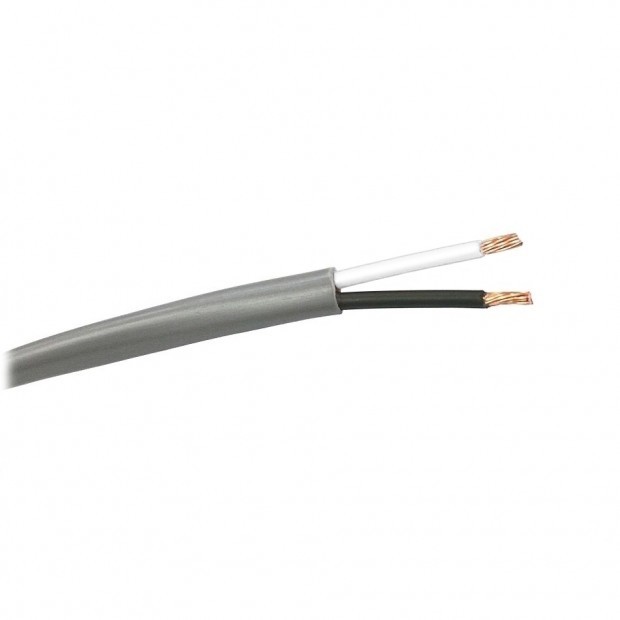

• (500') West Penn 227 12/2 Audio Speaker Wire

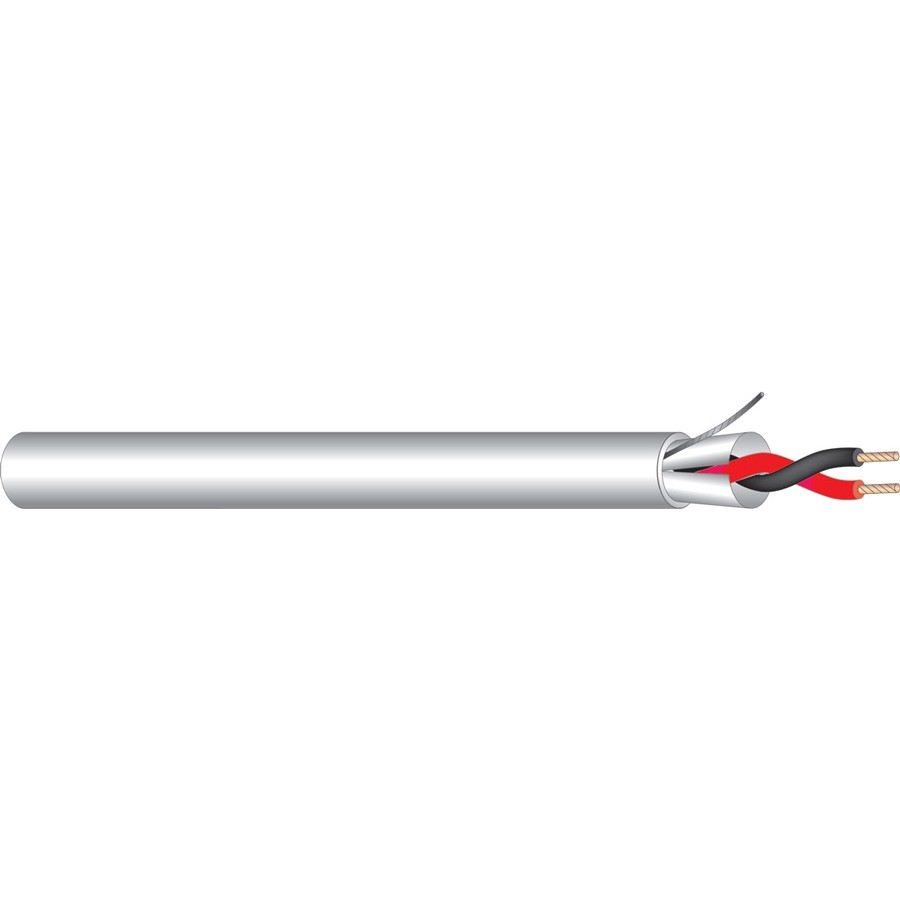

• (500') West Penn 291 22/2 Shielded Speaker Wire
